Sky Quality Meter-LU-DL

Sky Quality Meter-LU-DL

A USB SQM model for autonomous night-time sky brightness monitoring in magnitudes per square arcsecond
Manufacturer : Geoptik
SKU : TSO-SQM-LU-DL
Price: 339.00 € incl tax 19% (Germany)
Estimated delivery time : 2-5 months
Product description
Sky Quality Meter-LU-DL

An affordable USB-meter for continual, connected measuring sky brightness for astronomers! Can work autonomously. The "Sky Quality Meter-LU-DL" measures the brightness of the night sky in magnitudes per square arcsecond with unprecedented sensitivity in a handheld meter!

Uses
  • Find out how good the night or site really is.
  • Compare the sky brightness at different sites quantitatively.
  • Document the evolution of light pollution in your area.
  • Monitor sky brightness through the night, night-to-night, and year-to-year.
  • Determine which nights show the greatest promise for finding the 'faintest fuzzies'!
  • Calibrate the effect of sky brightness on qualitative measures such as the Bortle Scale.
  • Investigate how sky brightness correlates with the solar cycle and month-to-month sunspot activity.
  • CCD users can make a correlation between the SQM reading and when the background reaches some ADC level.

Features
  • Sky brightness displayed in visual magnitudes per square arcsecond.
  • Infrared blocking filter restricts measurement to visual bandpass.
  • Temperature in both Celsius and Fahrenheit as well as model number and serial number can be displayed with different button press sequence.
  • Precision readings at even the darkest sites.
  • Field-upgradeable firmware
  • Open protocol document.
  • USB connectivity

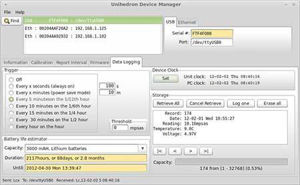

  • Included applications for reading data in Perl.
  • The Half Width Half Maximum (HWHM) of the angular sensitivity is ~10°.
  • The sensitivity to a point source ~19° off-axis is a factor of 10 lower than on-axis.
  • Maximum light sampling time: 80 seconds.
  • Minimum light sampling time: 1 seconds.

Delivery contents
  • Sky Quality Meter-LU-DL
  • Users manual
  • Software
  • 15ft USB cable
  • 6 AA batteries
  • Calibration sheet indicating calibration values

Products specifications
Height 3.6" (92 mm)
Width 2.6" (67 mm)
Thickness 1.1" (28 mm)
