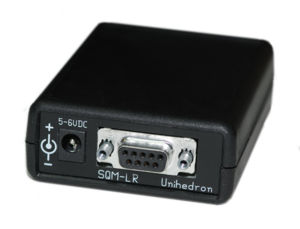

Sky Quality Meter-LR
An affordable RS232-meter for continual, connected measuring sky brightness for astronomers! The "Sky Quality Meter-LR" measures the brightness of the night sky in magnitudes per square arcsecond with unprecedented sensitivity in a handheld meter!
Uses
-
Find out how good the night or site really is.
-
Compare the sky brightness at different sites quantitatively.
-
Document the evolution of light pollution in your area.
-
Monitor sky brightness through the night, night-to-night, and year-to-year.
-
Determine which nights show the greatest promise for finding the 'faintest fuzzies'!
-
Calibrate the effect of sky brightness on qualitative measures such as the Bortle Scale.
-
Investigate how sky brightness correlates with the solar cycle and month-to-month sunspot activity.
-
CCD users can make a correlation between the SQM reading and when the background reaches some ADC level.
Deployment-
Legacy computer interface installations.
-
MODEM interface installations.
-
Simple electronic interface projects.
Features
-
Sky brightness displayed in visual magnitudes per square arcsecond.
-
Infrared blocking filter restricts measurement to visual bandpass.
-
Temperature in both Celsius and Fahrenheit as well as model number and serial number can be displayed with different button press sequence.
-
Precision readings at even the darkest sites.
- Field-upgradeable firmware
-
Open protocol document.
- RS232 connectivity
- Included applications for reading data in Perl.
-
The Half Width Half Maximum (HWHM) of the angular sensitivity is ~10°.
- The sensitivity to a point source ~19° off-axis is a factor of 10 lower than on-axis.
-
Maximum light sampling time: 80 seconds.
- Minimum light sampling time: 1 seconds.
Delivery contents-
Sky Quality Meter-LR
- Users manual
- Software
- 6ft RS232 straight through cable
- International AC adapter
- Calibration sheet indicating calibration values
Products specifications
|
Height
|
3.6" (92 mm) |
|
Width
|
2.6" (67 mm) |
|
Thickness
|
1.1" (28 mm) |
