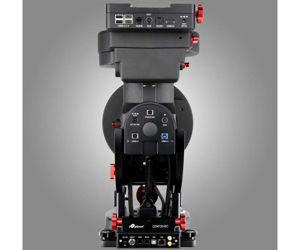

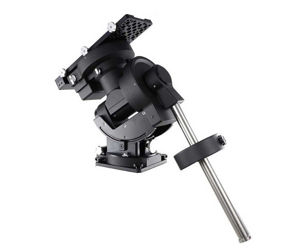

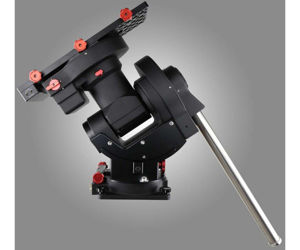

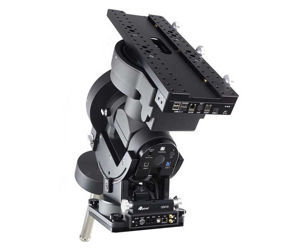

iOptron CEM120 center balanced GoTo mount - payload 52 kg

iOptron CEM120 center balanced GoTo mount - payload 52 kg

iOptron # 7300 CEM120 An extraordinary innovation in mount design...Now with a new payload!

  • A new design, center-balanced equatorial mount (CEM) for maximum payload with natural stability
  • Payload of 115 lbs (52 kg) with the mount weight of 57 lbs (26 kg)
  • Precision stepper motor with 0.07 arcsec accuracy for precise GOTO and accurate tracking
  • Polar alignment routine for those who can´t see the Pole Star
  • Go2Nova® 8407 V2 controller with Advanced GOTONOVA® GOTO Technology
  • High precision tracking with low periodic error (PE)<±3.5 arcsec and permanent periodic error correction
  • Built-in WiFi and LAN for remote operation
  • Integrated ST-4 autoguiding port and GPS
  • Losmandy Level telescope connection

Manufacturer : iOptron
SKU : TSO-IO7300
Price: 4999.00 € incl tax 19% (Germany)
Estimated delivery time : 1-4 days
Product description

Recognizing the growing demand for an accurate and stable, equatorial mount with the versatility to carry larger instruments and more complex imaging arrays, we created the iOptron CEM120. It offers the benefits of our revolutionary ?center balance? design: stability, accuracy, and smooth mechanical operation, while capable of carrying a payload up to 115 lbs (52 kg). The ?center balance? design?s natural stability is due to its focusing the mount along with payloads weight directly over the center of the or tripod.

The CEM120´s performance is demonstrated by its low periodic tracking error of ±3.5 arc seconds. Along with the stability aspect, the CEM120 features an advanced cable management system consisting of more ports in more locations preventing tangle ups and reducing the chance of fractured cables. It also adds some new features to the CEM family like Wi-Fi and LAN for remote operation and easy to use, reliable clutches on both axes.

Features of the #7300 CEM120 Goto Mount:

  • A new design, center-balanced equatorial mount (CEM) for maximum payload with natural stability
  • Observatory astrophotography mount ideal for both visual and Astro-photographers
  • Payload of 115 lbs (52 kg) with the mount weight of 57 lbs (26 kg)
  • Easy to use and reliable gear clutches
  • Adjustable counterweight shaft for 0º latitude operation
  • Precision altitude and azimuth adjustment.
  • Precision stepper motor with 0.07 arcsec accuracy for precise GOTO and accurate tracking
  • Polar alignment routine for those who can´t see the Pole Star
  • Go2Nova® 8407 V2 controller with Advanced GOTONOVA® GOTO Technology with built in heater
  • High precision tracking with low periodic error (PE)<±3.5 arcsec
  • Permanent periodic error correction (PPEC)
  • Built-in 32-channel Global Positioning System (GPS)
  • Built-in WiFi and LAN for remote operation
  • Integrated ST-4 autoguiding port
  • Advanced cable management system with more choices
  • Spring loaded, individual adjustable Losmandy saddle


Downloads:

The manufacturer has manuals, software and drivers available for download, you can get them here.


Scope of Delivery:

  • CEM120 mount head x1
  • Go2Nova 8407 V2 hand controller x1
  • 10 kg counterweight x2
  • Counterweight shaft x1
  • Hand controller cable x1
  • Serial cable (#8412) x1


Products specifications
Type of mount Parallactic GOTO mount
PEC exists
Telescope attachment 3" prism clamp
Power Supply 12 V 5 A
Motors steppermotor in both axis
Motor control Go2Nova 8407+ with 8 line 21 character LCD
Connections GPS, ST-4, RS232, USB, WiFi, LAN
Weight equatorial head 26Kg
Diameter of Gear / Number of Tooth Right Ascension worm wheel: &#8960;216 mm, 360 teeth, zero backlash Declination worm wheel: &#8960;216 mm, 360 teeth, zero backlash
