Bresser Messier NT203s/800 Optical Tube In the past few years the
Bresser Newton telescopes have become
the standard workhorse for Deep Sky astrophotography. We now proudly
present the second generation of this telescope, the
Bresser NT-203s/800 with Hexafoc and
fast parabolic main mirror. The Bresser
NT-203s/800 f3.9 will
deliver you deeper images due to its - compared to 8" f/5 systems -
oversized primary mirror and therefore faster optical system with the
same exposure time. The

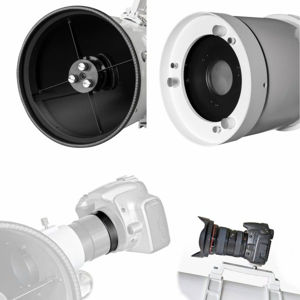

big 85 mm secondary prevents vignetting

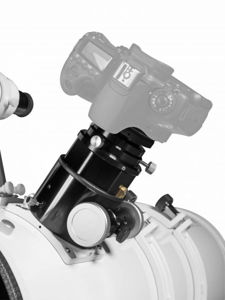

for optimal illumination The excellent 2,5" Hexafoc focuser also does
not cause vignetting due to its large diameter and makes focussing a joy
- the smoothness and shifting-free operation sets new standards in this
price class. This groundbreaking focuser, tube rings with 44mm
universal standard dovetail and camera mounting feature and a high-end
finderscope with haircross and laser-engraved scale leave nothing to
desire even for demanding astrophotographers. The NT-203s/800 Hexafoc
has a classical tube construction with an aluminium tube. The focuser
can be upgraded with a
10:1 reduction (part No. 0625720) without problems. Also prepared for use with the
HR Coma Corrector (part No. 0510330) which eliminates coma, field-curvature and astigmatism.

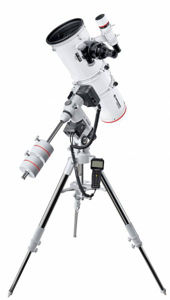

Bresser EXOS-2 GoTo Equatorial Mount. Mount, tripod and
hand box
with computer. This German mount has tracking motors in both axes that
follow celestial objects very precisely. The handbox with GoTo works
reliable and controls the mount in every situation. Precise ball
bearings in both axes ensures minimal backlash at all nine possible
tracking speeds. The battery pack (12 V) is conveniently fastened to the
tripod shelf and takes eight size "D" batteries.
The mount rests on a very tough and rigid steel tripod and can take optical tubes of up to 13 kg.
GOTO Stargazing at the push of a button !
The Startracker GoTo System enables beginners to start astronomical
observations in just a few minutes, and guides you to objects that are
hard to localize through a standard finder scope.Just push the button
and the GoTo System will find planets, nebulae or galaxies for you and
position your telescope automatically and precise.
The GoTo System database includes thousands of astronomical objects. The
Messier mount with GoTo System allows you to observe without tedious
searching, or image faint objects that are hard to find in a standard
finder scope.
FEATURES
- weight Tube without accessories: 8,7 kg - Tube with all accessories mounted: 11,5 kg
- weight EXOS II Goto: 5.0kg (without counterweight shaft, which weighs 1.0kg)
- weight Tripod: 4.9kg
- Aperture 203 mm
- Focal length 800 mm
- Focal ratio f/3,9
- 85mm secondary mirror for optimal illumination
- Diffraction limited optics with parabolic main mirror

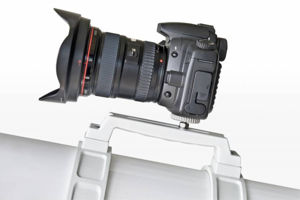

- Cradle rings with handle and integrated piggyback camera holder (1/4 thread)
- Large knobs for primary and secondary mirror adjustment
- Dovetail plate with stainless steel rail
- Adjustable polar finder scope with optional illumination

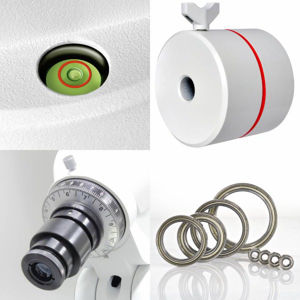

- Bubble level for easy tripod setup
- Ball beared axes (RA / DEC) and worm gears for smooth and precise tracking
SCOPE OF DELIVERY
- Telescope tube
- EXOS II GOTO EQ mount with more than 100.000 sky-objects in data-base
- height adjustable stainless steel field tripod
- polar finder scope with optional illumination unit
- 2x counterweight 4.5kg
- Startracker GOTO handbox
- battery pack (batteries not included)
- Tube rings with handle and camera mounting feature
- 8x50 Finderscope recticle and true oriented view
- integrated 31.7 mm and T2 adapter
- adapter for 50.8 mm (2")
- mounting ring (for EXOS, LXD-75, EQ-5)
- handle with camera holder
- 8x50 Viewfinder
- 26mmm Super Plössl
- astronomy PC software Stellarium
- rotatable star map
- Manual
Products specifications
Type of telescope
|
Newton |
Aperture
|
200 mm |
Focal ratio
|
f/4 |
Mirror material
|
BK7 |
Viewfinder
|
8 x 50 Viewfinder with bracket |
Focal length
|
800 mm |
Tube weight
|
ca. 19.8 lb |
Designation
|
EXOS2 with GoTo |
Focuser
|
Excellent 2,5" Hexafoc Focuser with possibility to upgrade to a 10:1 reduction |
Secondary diameter
|
85mm |
Resolution
|
0.56 |
