Simple Erfle designs, offered for low money under different names, have
significantly less off-axis performance. Light rays near the field stop
are refracted stronger than rays near the principal axis. This results
unsharp pictures near the rim, especially with uncorrected systems.
The
aspherical correction corrects for these abberations. Image definition
remains very good across the entire field and distortions are reduced to
a minimum. And what is more, the eyepiece can be kept more compact and
lightweight.
Connection of digital cameras:The
eyepiece comes with two support threads for adaptation of digital
cameras: 1x M43 and 1x M54. Starting from these threads, there are many
adaptation possibilities:
- Adaption to T2 for SLR cameras
- Adaption to the filter thread of most compact digital cameras

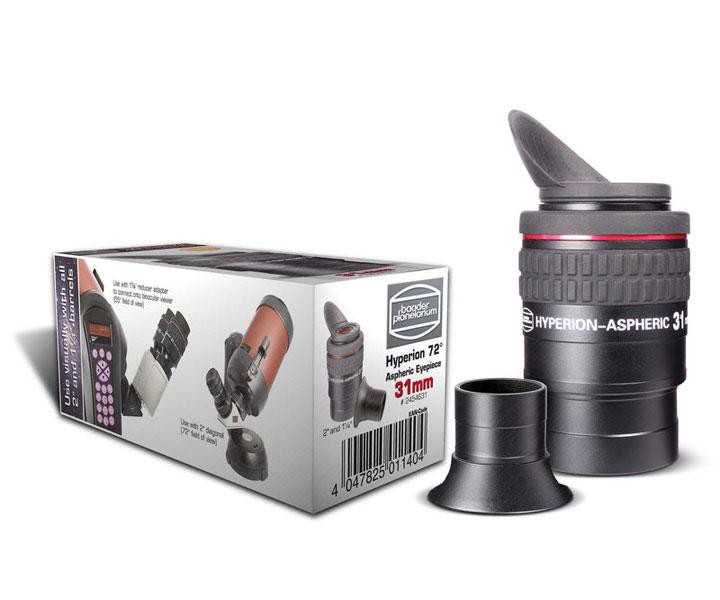

Scope of Delivery:
Products specifications
|
Lenses / groups
|
6 / 4 |
|
Eye relief
|
17 mm |
|
Field of view
|
72° |
|
Parfocal with
|
all eyepieces of this series |
|
Weight
|
492 g (without dewcaps) |
|
Focal length
|
31mm |
|
Barrel size / Filter thread
|
1.25"/ 2" / Yes |
|
Coating
|
Phantom Coating Group |
|
Field stop
|
38 mm (2"), 30 mm (1,25") |
