ZWO Filter Drawer for manual filter change in seconds
ZWO offers with the M54 filter holder a very advanced drawer with many useful product features. Especially astrophotographers, who do not want a big and partly heavy filter wheel, find an exciting alternative with this filter drawer. Despite the compact and above all lightweight design, this filter holder does not have to sacrifice stability and accuracy.

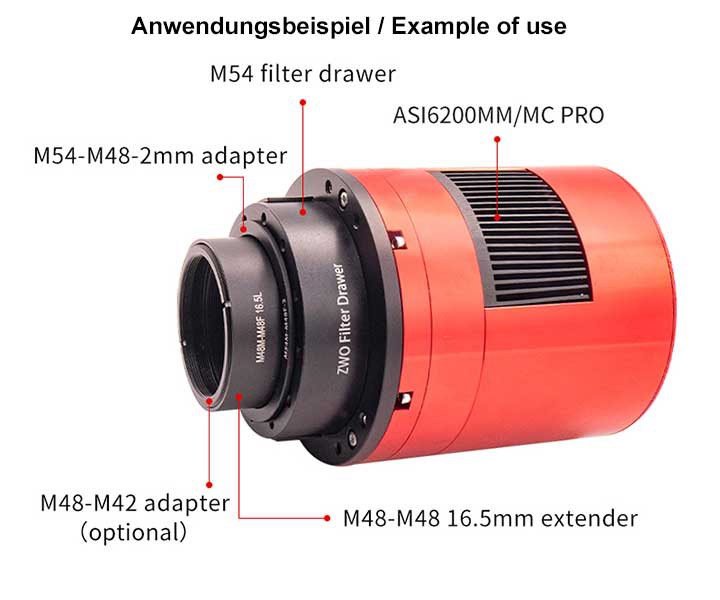

ZWO has developed the filter drawer for the full frame cameras ASI6200MM and ASI6200MC Pro. The drawer can also be combined with other cameras with M54x0.75 connection.

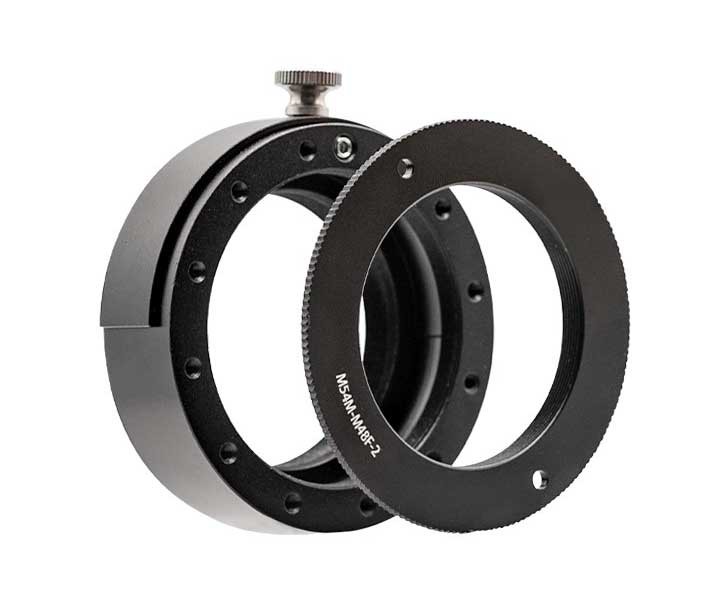

A reduction adapter to M48x0.75 is also included. This allows the filter drawer to be adapted to the corresponding connections.

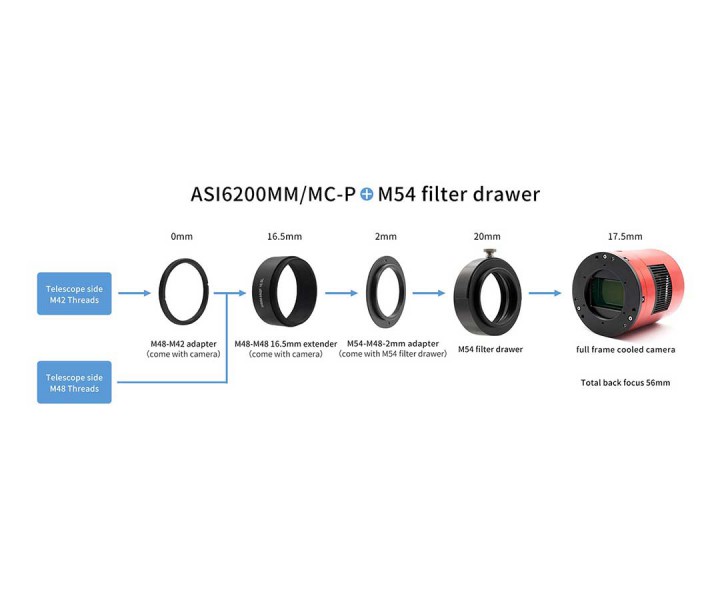

- The optical path length is only 20 mm. The adaptation is easy and can be done with standard adapters.

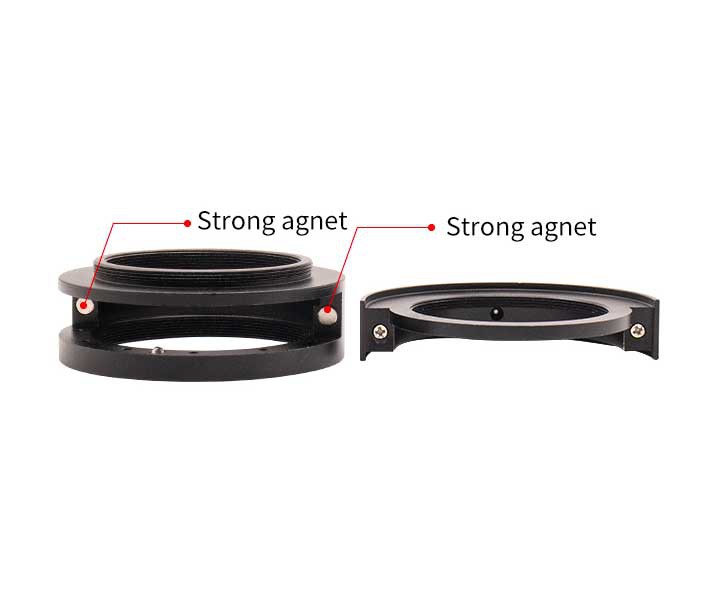

- The filter holder snaps magnetically into place, thus guaranteeing exact positioning of the filter.

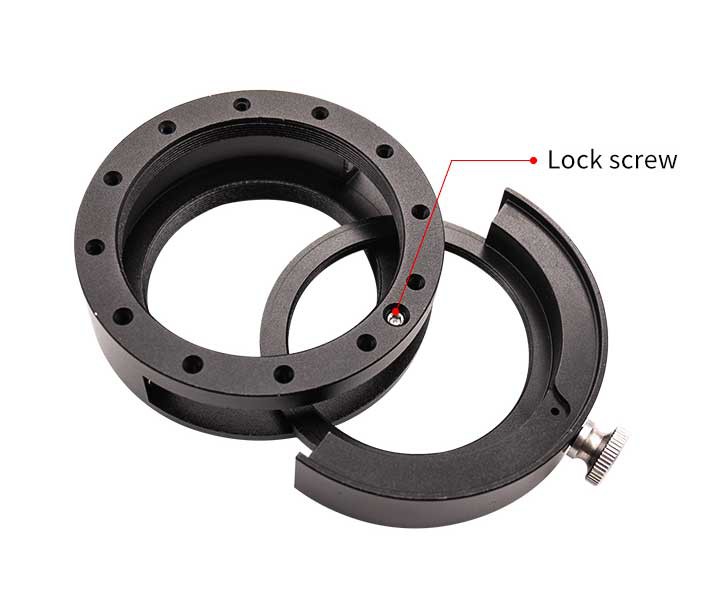

- A "Lock Screw" additionally fixes the position of the drawer for fixed adaptations where no filter change is planned.
- Thanks to the open design of the drawer, the filter can be easily inserted or removed.
- The drawer is round and very compact, so it can also be used in front of the optics, for example in Hyperstar systems or Celestron RASA.
- A filter holder for 2" filters is included.
Scope of Delivery:

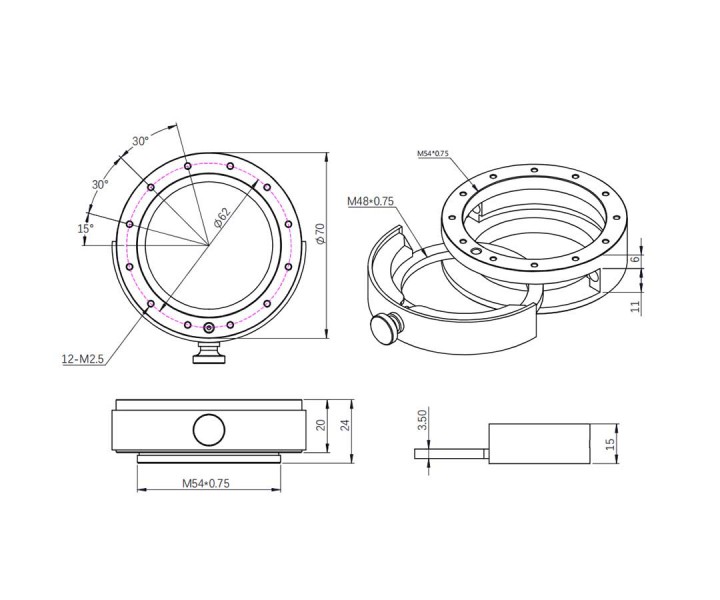

Products specifications
Connection to camera
|
M54x0,75mm thread (male) |
Connection to telescope
|
M54x0,75 thread (female) |
Height
|
20mm without M54 external thread |
loadable with
|
2" Filter |
