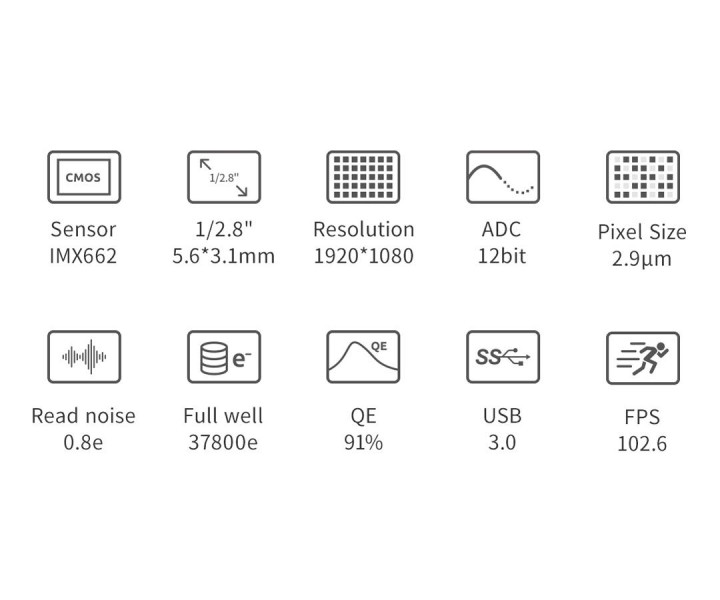

This camera is equipped with a modern 1/2.8" sensor with 1920*1080 pixels. The IMX662 offers an extremely smooth image without amplifier glow in addition to the modern Starvis-2 technology (back-illumination), but convinces especially with the high resolution (2.9 µm pixels) and the high frame rate. We recommend the camera among others for:
- Detailed planetary photography
- Lunar surface details
- Sun details (with suitable filter)
- Photography of (small) brighter nebulae and star clusters without power consuming cooling - exposure time up to 2000 seconds is possible
- Infrared photography to reduce the influence of seeing, thus sharper luminance channel
- Autoguiding camera (autoguiding port is available)
- EAA (electronically assisted astronomy) for planets, moon and sun
Lunar and planetary photography
Due to the fine 2.9 µm pixels, you achieve a very high resolution already from f/10, which makes the use of Barlow lenses and converter systems superfluous.
EAA (electronically assisted astronomy)
The high resolution, combined with a high frame rate of 108 fps at full resolution (RAW8 format), allows real-time observation of planets as well as details on the moon and sun. Why not observe together in a group - without long waiting for everyone´s turn!
Use as autoguider:

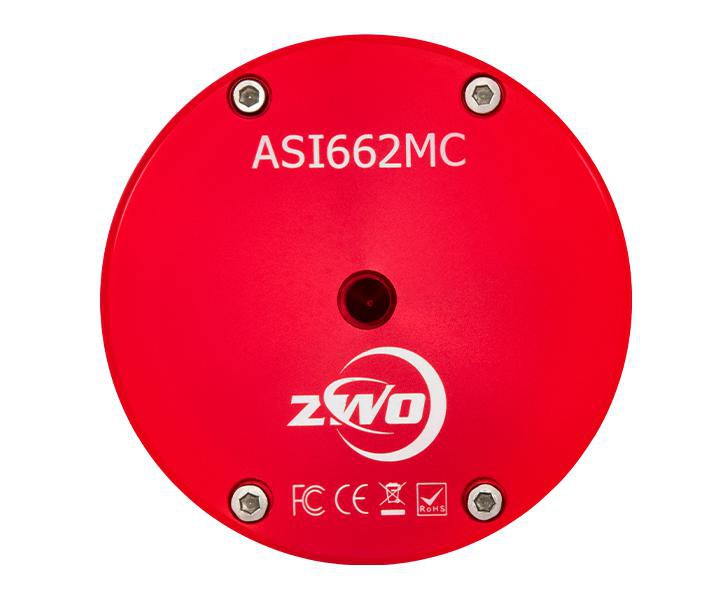

The ASI662MC is a lightweight with only 126 grams. It hardly loads the focuser. Of course, the camera offers the ST-4 autoguiding interface. A 2 metres long autoguiding cable is also included.

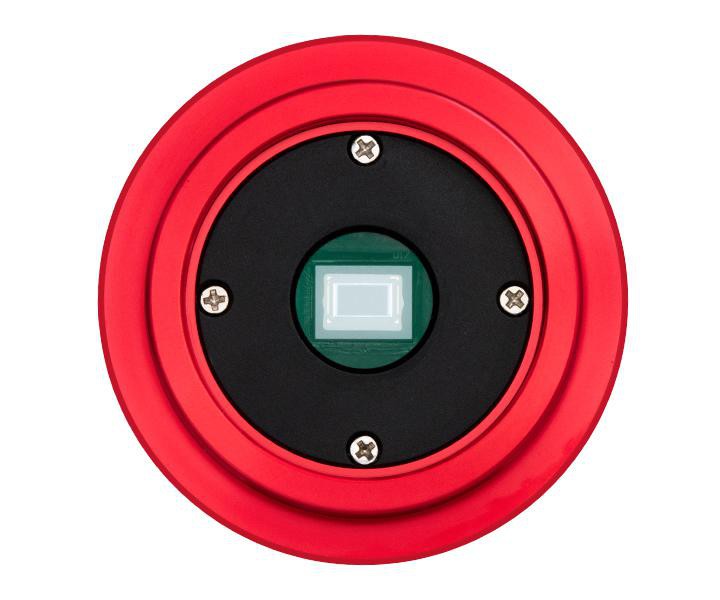

AR-coated clear glass filter protects the sensor from dust
The clear glass filter prevents dust from getting to the sensor. It also lets UV and infrared through, so you can also do infrared photography with the camera. You have full control over what light hits the sensor with the right choice of contrast filters, nebula filters, IR pass filters, or UV/IR blocking filters.
Air cooling - reduces sensor temperature
The sensor heats up during the exposures. The PCS dissipates heat from the sensor via a heat conducting pad. The sensor temperature is thus reduced by up to 15 degrees Celsius compared to cameras without PCS.
Very high sensitivity for short exposure times

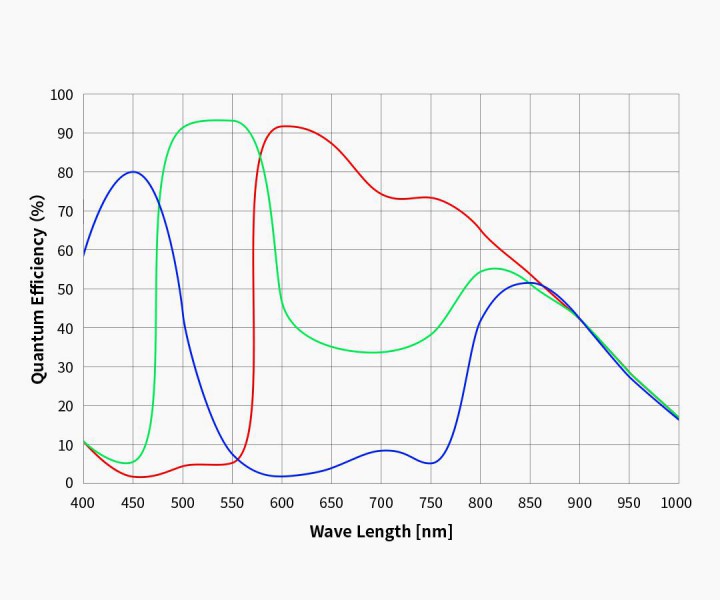

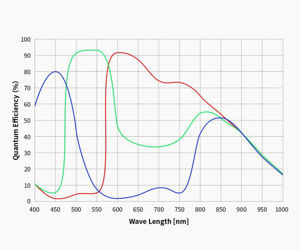

One advantage of the back-illuminated CMOS sensor is the lower readout noise and improved sensitivity. In particular, Sony uses STARVIS?-2 technology in the IMX662 sensor, which provides excellent low-light visibility. You can achieve a very high light output in astro imaging and realize high image quality not only in visible light, but also in the near infrared range (to reduce seeing). In addition, the low readout noise and the high full-well capacity ensure a higher dynamic range.
The ASI662MC is not only ideal for planetary and detailed images of the Sun and Moon but can also be used as a live streaming camera or as an all-sky camera for observing or monitoring weather conditions.

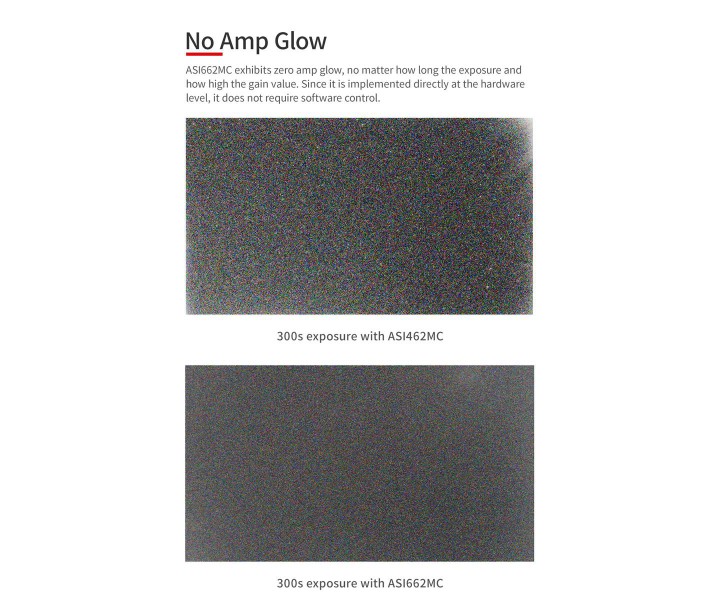

The low noise and anti-ampglow circuitry make this not! Peltier-cooled camera interesting for capturing deep-sky objects such as faint nebulae, star clusters and galaxies.
The HCG mode:
The camera has a built-in HCG mode that can effectively reduce readout noise at high gain and maintain the same wide dynamic range that you would expect at low gain. When the gain is 150, the HCG mode will turn on automatically. This results in readout noise below 1.45 e- while the dynamic range can still reach almost 12.5 f-stops.
Downloads
Drivers and programs, for example FireCapture or SharpCap, can be downloaded from the web, a link overview is available here.
Frequently asked questions about ZWO cameras:
The FAQ section is constantly updated by ZWO, here you can find answers to many questions.
FAQ about ZWO cameras
ZWO users forum
Instructions for ZWO products:
The page is constantly updated by ZWO, here you can find instructions for ZWO products.
Link to the instruction manuals

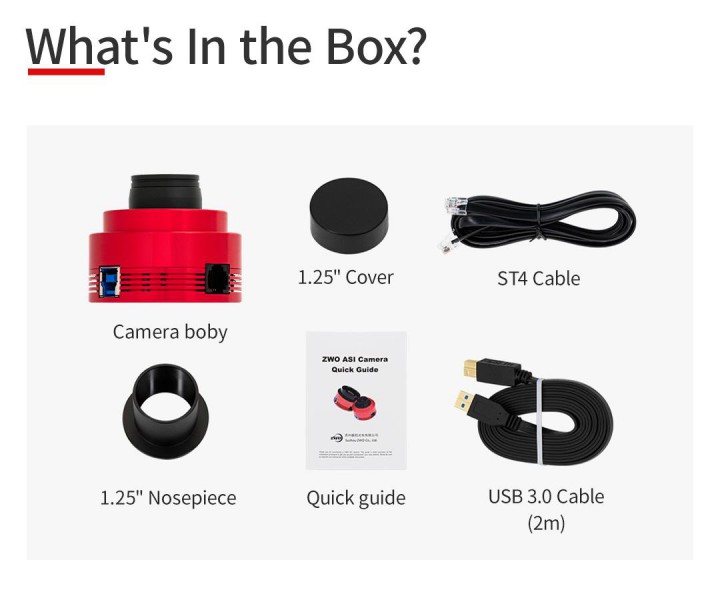

Scope of Delivery:
- ASI camera
- Adapter T2 (M42x0.75) on 1.25"
- 1.25" cover
- Adapter T2 to CS mount (mounted)

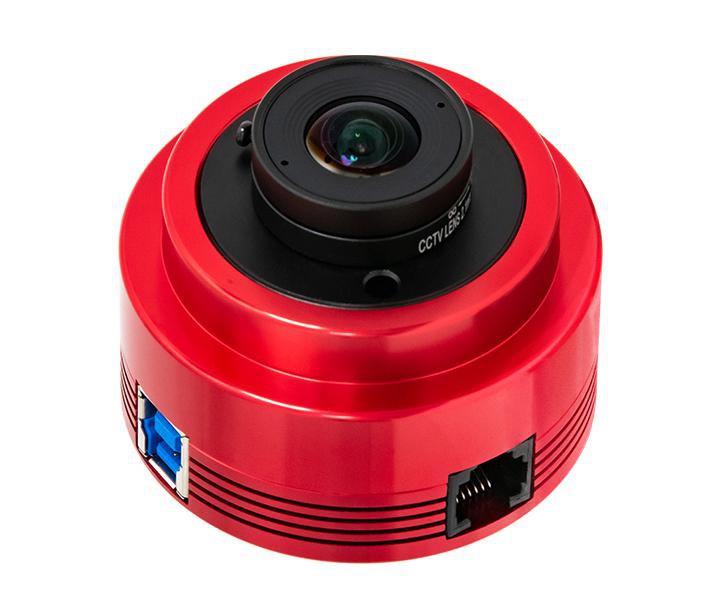

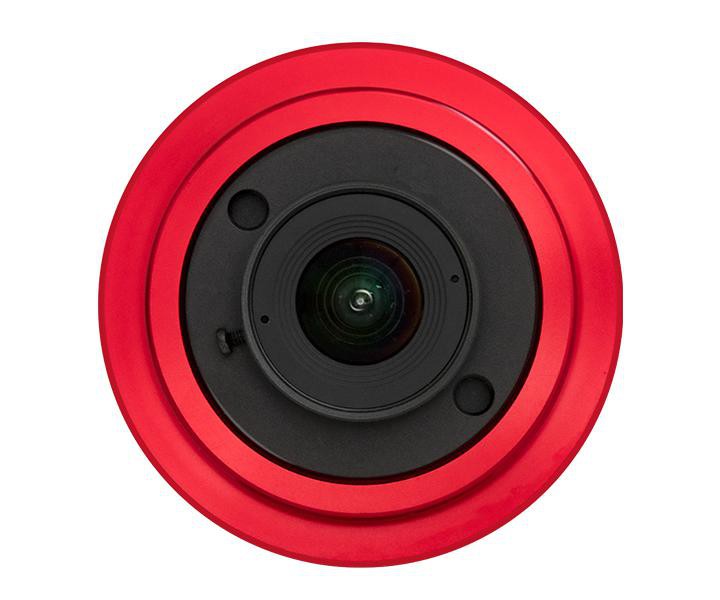

- Wide field lens (mounted)
- USB 3.0 cable
- ST4 cable
- Quick Start Guide
