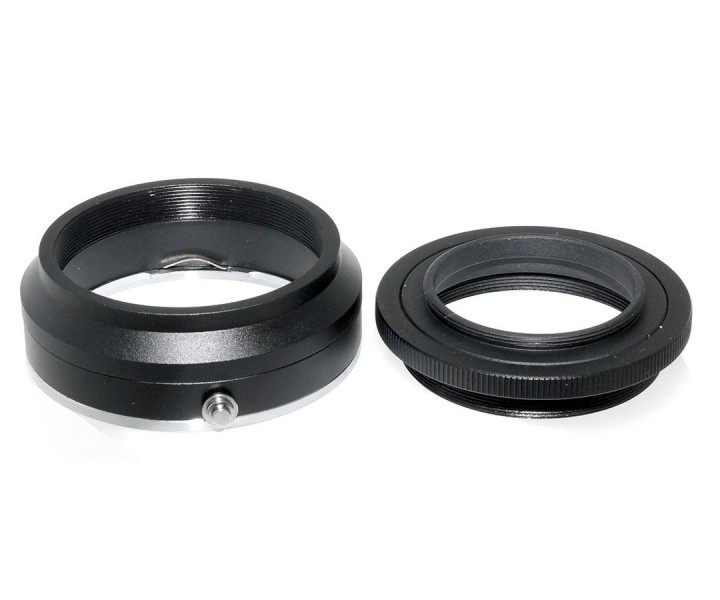

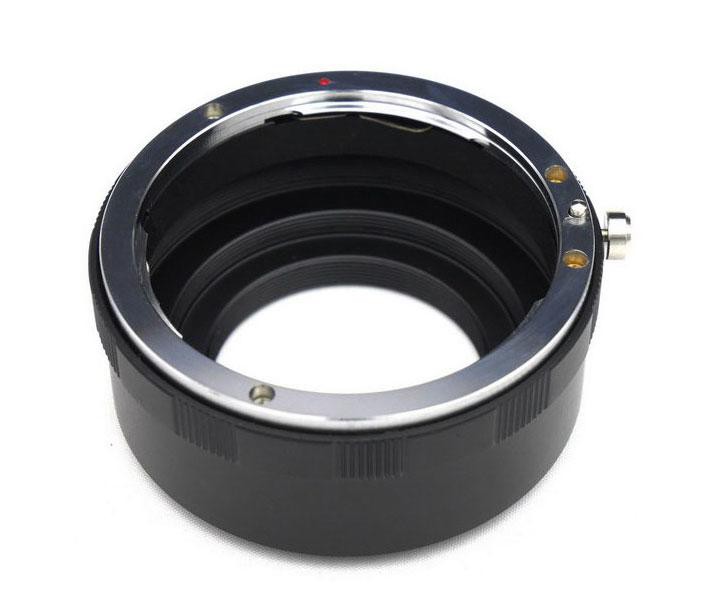

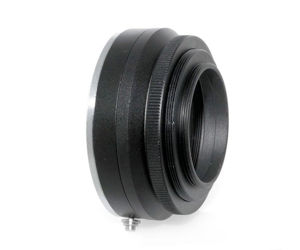

ZWO Adapter for cooled ASI cameras to Canon EOS lenses
Use your high-quality EOS camera lenses for taking photographs of objects like large areas of the sky. Here, the ASI camera replaces the SLR.
The adapter is suitable for ASI cameras with 13 mm to 20.5 mm working distance for example ASI cameras with 17.5 mm working distance or most ATIK CCD cameras.

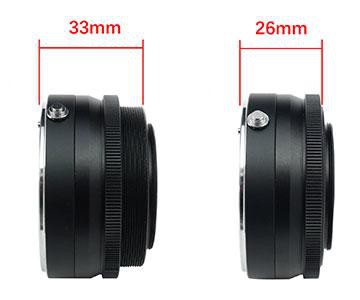

The distance is adjusted to the combination of CCD camera and EOS lens to within a fraction of a millimetre.
- Loosen the lock ring.
- Turn the T2-adapter out of the adapter until the distance fits exactly.
- Tighten the lock ring again and the length of the adapter is locked.
Important note: The adapter is not suitable for STM lenses, as they need electrical power supply for focusing!
Scope of Delivery:
Products specifications
|
Connection to camera
|
Canon EF EOS mount |
|
loadable with
|
2" Filter |
|
Camera thread
|
T2a |
