ZW Optical

High-performance monochrome astro camera - large 2.3 megapixel sensor for solar, lunar and planetary photography and for deep-sky imaging

• 1/1.2" sensor IMX174LLJ CMOS
• Resolution 2.3 MP - 1936 x 1216 PX
• Pixel size 5.86 µm
• Sensor size: 11.34 mm x 7.13 mm
• Extremely high frame rate of 164 fps, global shutter
• Minimal download time through USB 3.0
• Very compact - only 62 mm x 41 mm
• Autoguiding port (ST-4)
• AR protect window built-in - full transmission also in IR

This camera is excellent for sun and moon with its large sensor, but can also be used very well for deep sky because of the low noise.

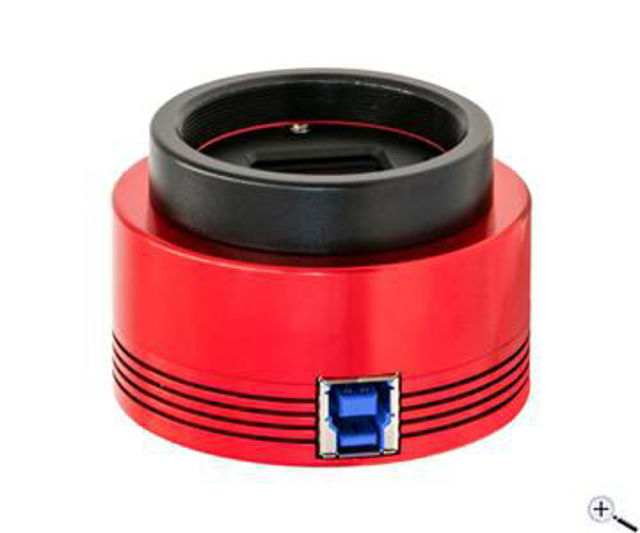

• Sensor: 1.1" CMOS IMX432 with 1.77 megapixels resolution
• Sensor size: 9.9 mm x 14.5 mm - diagonal: 17.6 mm
• Large image field - very well suited for sun and moon
• Pixels with 9.0 µm size and corresponding light sensitivity
• With approx. 79 % QE a still high efficiency for short exposure times
• Very well suited for EAA due to high frame rate of 120 fps
• Full well capacity 97 ke-
• Starvis technology with back illumination
• USB 3.0 for fast download of images
• 12 bit ADC
• No amplifier glow (amp glow)
• Passive cooling with heat dissipation against heating of the sensor during long time exposures
• Good suitability for deep sky imaging
• AR protection filter built in with full transmission also in infrared
• ST4 level autoguiding interface included

The ASI 482 CMOS color camera offers a very high sensitivity with a QE of 85% and a large modern Sony sensor for all applications in astrophotography.

• Sony IMX 482 2 MP backlit sensor
• Sensor size 11.1 x 6.2 mm - diagonal 12.86 mm
• 1920 x 1080 pixels with up to 83 fps
• 5.8 µm pixel - ideal for Maksutovs or Cassegrains for optimal resolution
• Sony Starvis and Exmor-R technology
• USB 3.0 for fast image download - also compatible with USB 2.0
• Video astronomy and EAA with up to 83 frames per second possible
• ST4-level autoguider interface included
• AR protection filter built in with full transmission even in infrared

Die Colorkamera bietet einen großen Sensor, hohe Empfindlichkeit, Auflösung und Bildrate. Sie ist hervorragend für Planeten, aber auch für Sonne sowie Mond geeignet, und selbst für Deep Sky.

• Sensor: 1/1,2" CMOS IMX585 mit 8,29 Megapixeln Auflösung
• Sensorgröße: 6,26 mm x 11,13 mm - Diagonale: 12,84 mm
• Sehr hohe Auflösung: 3840 x 2160 Pixel mit 2,9 µm Größe
• Ca. 91 % QE - hohe Empfindlichkeit für kurze Belichtungszeiten
• Durch hohe Bildrate von 47 fps auch gut für EAA geeignet
• Full Well Kapazität 40 ke-
• Starvis 2 Technologie mit Back Illumination
• USB 3.0 für schnellen Download der Bilder
• 12 bit ADC
• Kein Verstärkerglühen (amp glow)
• Passive Kühlung mit Wärmeableitung gegen ein Erwärmen des Sensors bei Langzeitbelichtung
• Gute Eignung für Deep Sky Aufnahmen
• AR Schutzfilter eingebaut mit vollem Durchlass auch im Infraroten
• Inklusive ST4-Level Autoguidingschnittstelle

• SONY STARVIS 2 technology - back illuminated pixel technology
• USB 3.0 for fast download of images
• No more amp glow detectable
• Passive cooling with heat dissipation against heating of the sensor during long time exposures
• Good suitability for deep sky imaging
• Rich field lens (removable) included in scope of delivery

The camera offers an extremely high resolution and is optimized for lunar and planetary photography without additional Barlow directly in the focus of the telescope.

• Sensor: 1/28" CMOS IMX715 with 8.46 megapixel resolution
• Sensor size: 5.6 mm x 3.2 mm - Diagonal: 6.45 mm
• Extremely high resolution: 1.45 µm pixel size
• SONY STARVIS 2 technology - back illuminated pixel technology
• With approx. 80 % QE a high sensitivity for short exposure times
• Ideal for moon and planets but also for small deep-sky objects and high-resolution microscope photography
• USB 3.0 for fast image download
• Low readout noise (from 0.72 e-)
• Well suited for EAA due to high frame rate of 45.1 fps
• 12 bit ADC
• No more amp glow detectable
• Passive cooling with heat dissipation to prevent the sensor from heating up during long exposures
• Wide field lens (detachable) included in scope of delivery
• AR protection filter built in with full transmission even in the infrared band
• Including ST4-level autoguiding interface

ASIAIR Mini allows control of all ASI USB 3.0, ASI Mini cameras, selected DSLR and mirrorless cameras, and mounts via smartphone or tablet.

• Complete control of your camera, autoguider and automatic tracking of your mount via your smartphone or tablet
• Wireless control - no tangled wires between mount, camera and computer
• Standalone autoguider function in combination with a suitable camera like the ASI120Mini - ideal for all astrophotographers with DSLR, no more need for a computer in the field
• Image preview and focusing assistance in real time for convenient and precise focusing
• Debayer for all ASI color astro cameras with image processing
• Almost all mounts are supported, e.g. Skywatcher or iOptron
• ASIAIR works with iOS and Android operating system
• Simple to use and interface with clearly arranged surface
• ASIAIR supports also DSLR and mirrorless cameras
