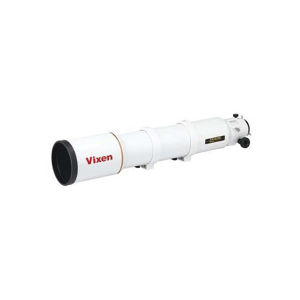

Vixen's flagship apochromatic refractor made for visual and astrophotography.

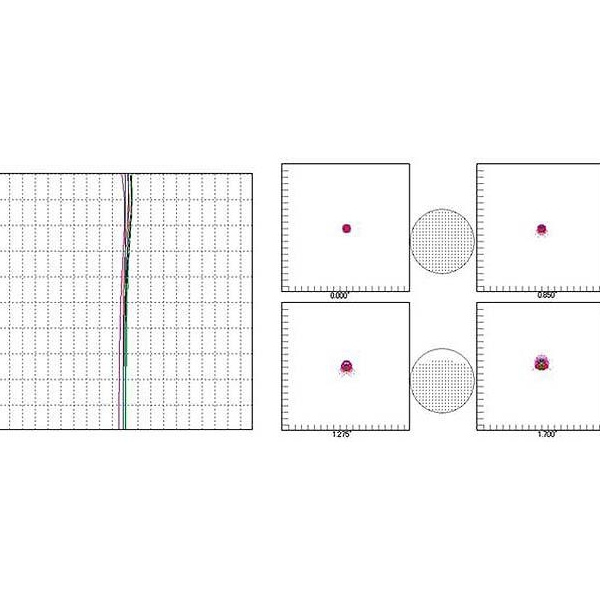

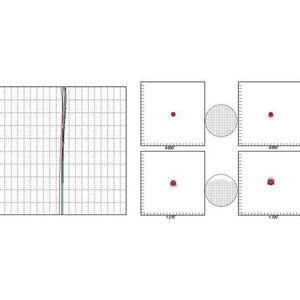

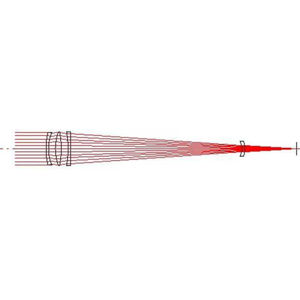

A quad element design consisting of triplet objective lens, incorporating a central ED lens, plus a field corrector lens in the drawtube. This produces exceptionally sharp images free from chromatic aberration and delivers high contrast and clear images. Star images are less than 20 microns on the edge of imaging field.
A newly introduced precision multi-coating on the objective lens yield high light transmission of a 99.5% within a spectrum between 400mm and 700mm per surface.
Characteristics:
- Triplet ED Apo lens design with excellent imaging behavior
- Aperture 103mm, focal lenght 825mm, f/8.0
- Integrated flattener lens
- Optics and mechanics "made in Japan"
- Optimized for full frame astrophotography
- 60mm / 2" focuser with reduction
- Optional reducer/corrector
- Tube rings
- OTA lenght only 79cm
- Weight appr. 4.0kgs
Delivery:
- OTA 103/825mm Triplet ED lens
- 60mm / 2" focuser with reduction
- Tube rings
Products specifications
|
Focal ratio
|
f/8 |
|
Limit value
|
11.8mag |
|
Tube weight
|
Property Value |
|
Tube diameter / Length
|
OD=115mm, L=687mm |
|
Type of telescope
|
103mm ED 4-Linsen APO, multi-coated |
|
Focal length
|
825mm |
|
Resolution
|
1.13 arcsec |
|
Included accessories
|
Tuberings, Mountingplate, Flip mirror, carry handle, finder |
