TS Optics Standard Finder Base for your finder
The base for almost all finder brackets, Baader Witty, tangential heads and many more

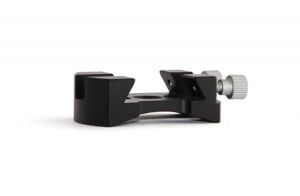

This finder base is milled from the solid for maximal precision and stability. The finder bracket is safely clamped by two screws - nothing can tilt anymore.
It can replace the simple finder bracket of all telescopes of at least 130 mm tube diameter.
Adaption to your telescope
The SCBase can be attache to your telescope perfectly tight with two screws in the slotted holes or just one screw in the center.
The underside is machined sine shaped and thus forms two linear supports with every tube between 130 mm and 400 mm diameter, for maximum stability.

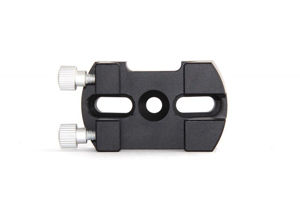

The two slotted holes and the bore in the center are counter-sunk for easy attachment of the finder base with M4 or M5 countersunk bolts.
This finder fits to:
-
Celestron and Meade Schmidt-Cassegrains, ACF and EHD telescopes
-
Orion UK tubes (boring necessary)
- TS Optics, Celestron, Meade, Orion USA, Orion UK, Intes and many more
Delivery contents-
Finder base with two knurled screws
Products specifications
|
material
|
Aluminium, milled from the solid |
|
Bores
|
2 slotted holes, 1 central bore |
|
Suitable for
|
M3 to M5 countersunk head srews or very flat cylinder head screws |
