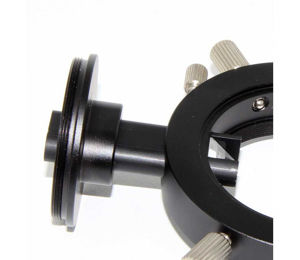

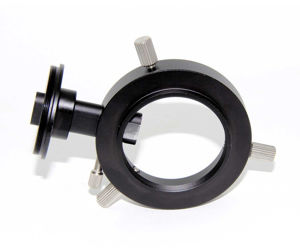

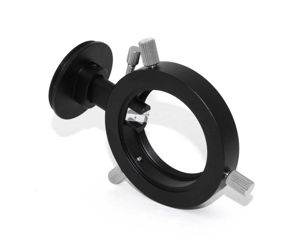

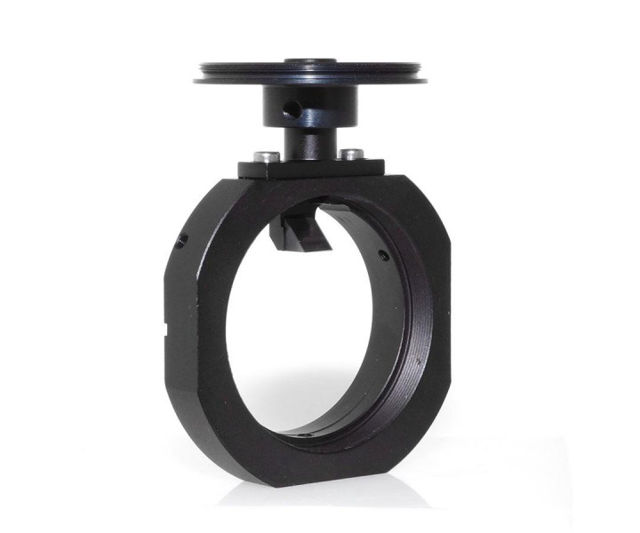

TS Optics stable Off Axis Guider TSOAG16 with only 16 mm length

TS Optics stable Off Axis Guider TSOAG16 with only 16 mm length

Especially stable off-axis guider for heavy CCD cameras.
Manufacturer : TS Optics
SKU : TSO-TSOAG16
Price: 119.00 € incl tax 19% (Germany)
Estimated delivery time : 1-4 days
Product description
TS Optics Stable Off Axis Guider TSOAG16 with only 16 mm length

The TS Off-Axis Guider TSOAG16 is an especially stable off-axis guider for heavy CCD cameras.

The TSOAG16 is a development from Teleskop Service for all astrophotographers who have relatively little space between focuser and camera and use a heavy CCD camera or full-frame DSLR camera. The TSOAG16 offers convincing features.

The advantages and features
  • Stable construction: The body, for example, is made of solid, 11 mm thick aluminum - enough space for long threads for reliable clamping.
  •  Short design: With only 16 mm optical path from the M48 connecting thread to the camera adapter, the off-axis guider is usable with almost all correctors.
  • Easy focusing of the autoguider: the lateral T2 connector can be adjusted as well, making possible to focus the autoguider without changing the distance from the main camera to the corrector.
  • Three possible positions from the camera to the prism: due to the special design of the connecting adapters three positions of the prism to the camera sensor are possible. This avoids shading by the prism, too.
  • Flexible adaption at the camera side with the necessary connecting adapters to T2, M42, M48 and EOS. The adapters extend the length of the off-axis guider only 1 mm.

Connecting to the telescope or the corrector:

At the telescope side, the TSOAG16 has a female M48x0.75 thread. This thread allows for a flexible adaption.
  • Connection to 2" receptacles: With a 2" extension ring, you can attach the TSOAG16 to any 2" receptacles.
  • Connection to correctors with T2 or M48 thread: The TSOAG16 can directly be screwed to correctors with M48 connecting thread. An adapter to T2 allows for attaching to correctors with T2 connection.
  • More connection options for example to the M68x1 Zeiss level adapter system.

How to adapt the imaging camara

For a suitable camera connection, you need one of the optional connecting adapters. The adapters are made for the TSOAG16 and match perfectly. They increase the optical length of the OAG only 1 mm.

The adapters are conical, always ensuring the optimal position. At the same time, you can take down the camera without unscrewing it.
  • TSOAG9-T2: for any other connections via the M42x0.75 / T2 thread
  • TSOAG9-M42: the M42x1 connection is used mainly for a short adaption of DSLR cameras.
  • TSOAG9-M48: for any other connections via the M48x0.75 / 2" filter thread
  • TSOAG9-EOS: allows the direct connection of Canon EOS DSLR cameras.

Distances to the prism
  • Distance from the middle of the prism to the lateral T2 connection: 26 mm to 40 m,adjustable
  • Distance from the middle of the prism to the front side of the TSOAG16: 9 mm
  • Distance from the middle of the prism to the camera side of the TSOAG16: 7 mm

Delivery contents

  • TSOAG16 Off-Axis Guider
  • Camera side connectors are not included.

Products specifications
Housing materialAluminium
Connection to eyepieceT2 Thread
Connection to telescope2" and M48x0,75 female thread
Lenght16 mm from the camera adapter to thread at telescope side
Connection to cameraQuick coupling with three screws - diameter 51 mm - fits to connecting adapter
Unobstructed diameter47 mm
