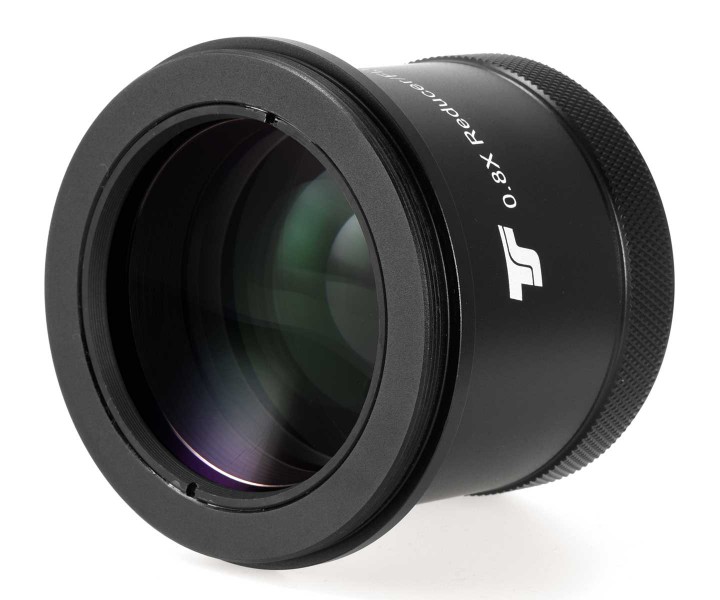

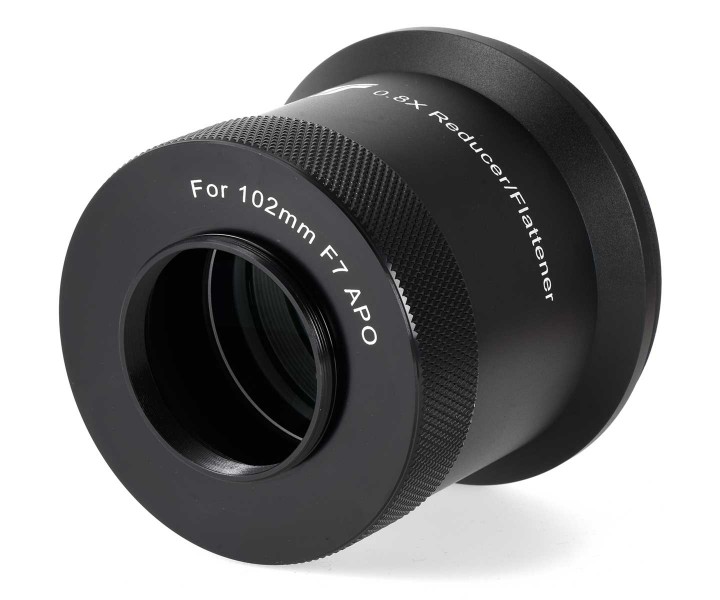

The corrector is designed for this apochromat and brings optimal astrophotographic results. Cameras up to full frame can be used and the star images are pinpoint up to the corners. In addition, the focal length of the apo is reduced to 571 mm. The focal ratio improves to f/5.6, saving about 36% in exposure time over a 1.0x flattener.

The connection of cameras to the corrector:
On the camera side, the corrector has an M48x0.75 male thread. This thread provides 15% better illumination than T2. Therefore we can recommend the corrector for all cameras up to full frame. The working distance is exactly 55 mm from the thread. For all astro cameras there are suitable adapters for this thread and distance. We are happy to advise you.

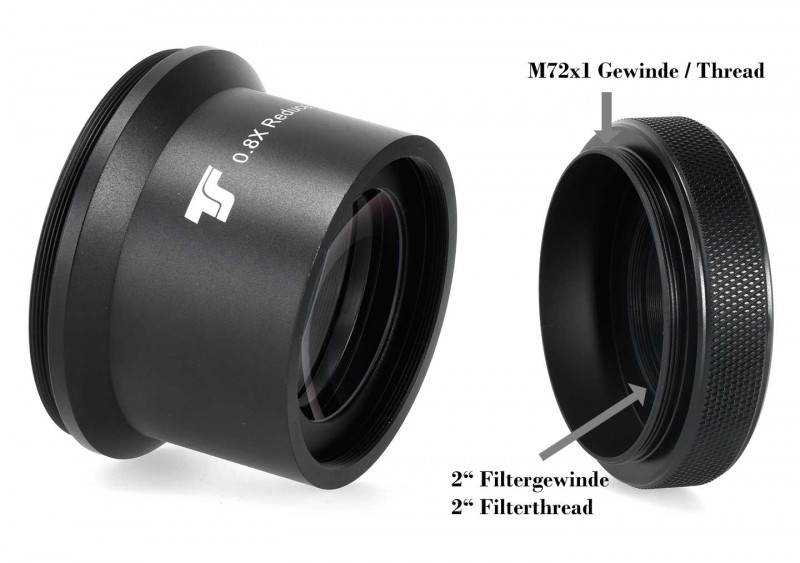

The corrector offers an M72x1 intermediate thread for individual adaptations, for example via M68x1, if you want to use a large off-axis guider, for example. We offer suitable adapters.

Thread for 2" nebula filters available:
If you unscrew the camera adapter from the corrector, you have a 2" filter thread on the inside. There you can use nebula filters for contrast enhancement or IR cut filters. The working distance is not changed.

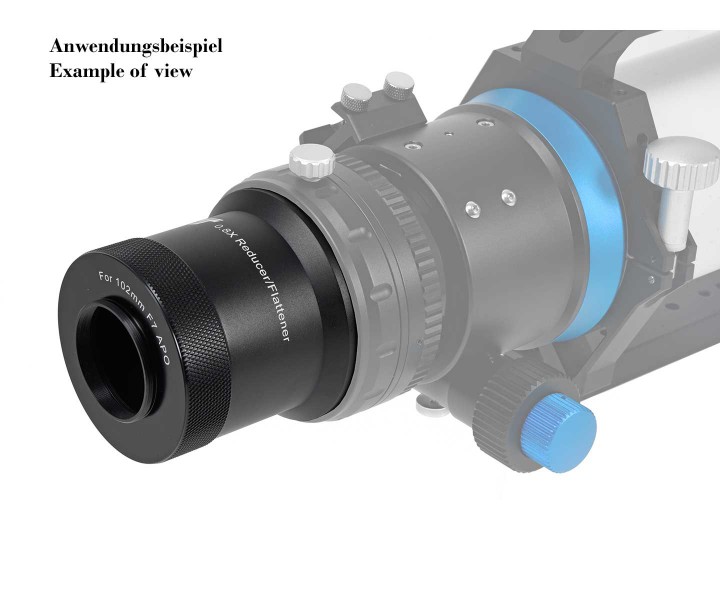

The connection on the telescope side:}]The corrector has an M92x1 male thread on the telescope side. With this thread, you can screw the corrector directly into the focuser of the TS CF apo. No tilting is possible and the star image remains optimal.

Adaptation of astro cameras with 17.5 mm distance from T2 thread to sensor:

• T2AbstimmA05 (tuning ring with 0.5 mm height)
• TSROTM48-T2 (adapter to M48, rotation, quick coupling and filter holder)
• TSVF208 and TSFV210
