TS Optics projection adapter with T2 thread for 1.25" eyepieces
Extends the focal length of your telescope. Suitable for 1.25" eyepieces up to 38 mm outer diameter
To capture lunar craters and planets, the aperture ratio of the
telescope has to be raised to approx. f/20 - f/30. A probate means to
achieve this is eyepiece (afocal) projection. This adapter turns your
1.25" eyepiece into a powerful projection eyepiece.
Advantages
-
Consists of standard parts that can also be used for other purposes
-
All 1.25" eyepieces up to 38 mm O.D. can be used
-
Projection distance can be varied by using additional T2 spacers
-
Camera connection by the common T-thread (M42x0.75)
-
Compact and DSLR cameras can be used with suitable adapters
Equipping the adapter
The OPAD´s heart is a base adapter with T-thread on both ends. The
eyepiece is installed here and is locked by two thumbscrews for perfect
centering on the optical axis. Then, screw the T2 spacers above the
eyepiece and you're ready to start!
Camera adaptation
-
DSLR cameras with suitable T-ring
-
Compact digital cameras with fixed lens use an adapter to M54 filter
thread. From this filter thread, adapters to other filter threads are
available.
Recommended eyepieces for projection
-
DSLR camera bodies use eyepieces from approx. 6 through 15 mm. A good
Ortho, Plössl or moderate wide angle is best. Ultra wide angle eyepieces
are not recommended because of their distortions.
-
For compact cameras with fixed lens, we recommend eyepieces with large
eye lens and a focal length of approx. 20-25 mm. It should be brought as
close as possible to the camera's lens.

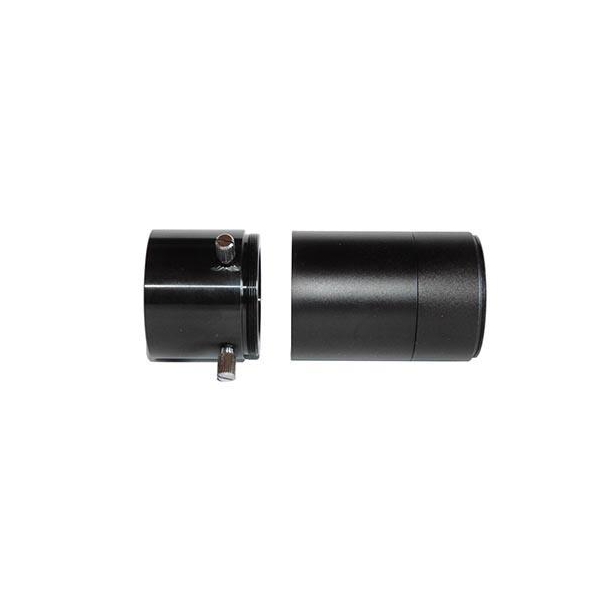

The OPAD system consists of
- T2 eyepiece holder with brass compression ring
-
40 mm T2 extension
-
20 mm T2 extension
All pieces can also be used individually and can be combined with T2 systems.
Delivery contents-
Projection adapter for 1.25" eyepieces
Products specifications
|
Connection to telescope
|
T2 |
|
Connection to camera
|
T2 male thread (M42x0.75) |
|
Suitable for
|
all 1.25" eyepieces up to 38 mm O.D. |
