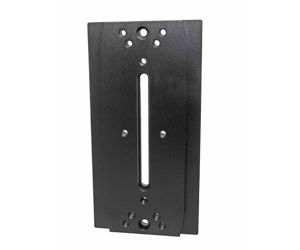

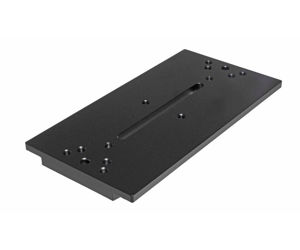

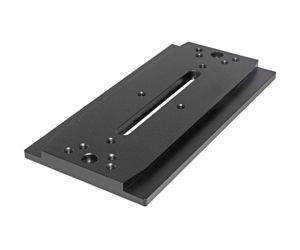

TS Optics Losmandy Level dovetail rail with flat surface
This solidly crafted dovetail rail hold even heavy telescopes without bending. Many bores and thread holes allow versatile attachements.
Advantages of the dovetail rail- Sloped ends allow sliding the rail into the dovetail clamp easily
- Massive aluminium, 12.5 mm thick
- No sharp edges
- Extra wide (101.5 mm) upper surface for large tube rings
- Centric, slotted hole with 100 mm length
For example, the dovetail rail fits to the following mounts
- All mounts with Losmandy level quick release
- Losmandy mounts: GM8, G-11, Titan
- Celestron mounts: CGEM, CGX
- Skywatcher mounts: EQ6, AZ-EQ6, EQ8
Delivery contentsProducts specifications
| Thickness | 12.5mm |
| Length | 200 mm |
| Suitable for | Quick release Losmandy Level |
| Width | 75 mm (at dovetail) |
| Weight | 750 g |
