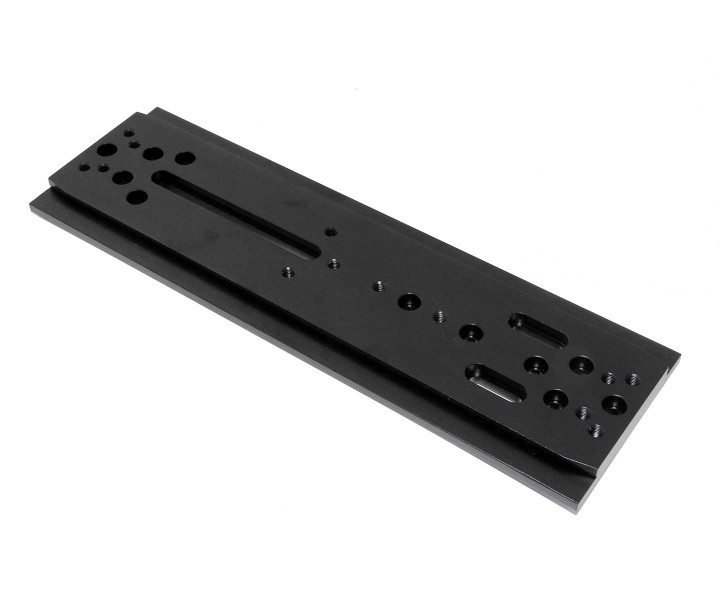

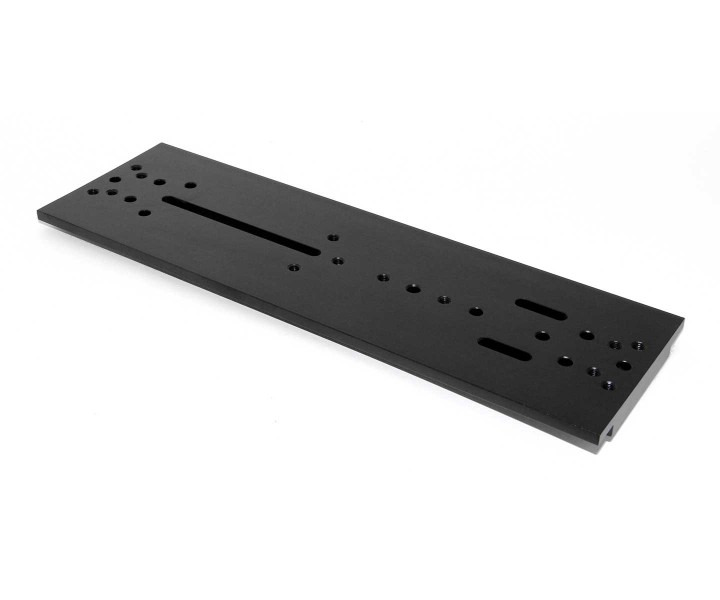

TS Optics Losmandy Level dovetail rail with flat surface
This solidly crafted dovetail rail hold even heavy telescopes without bending. Many bores and thread holes allow versatile attachements.
Further interesting characteristics:
-
Sloped ends allow sliding the rail into the dovetail clamp easily
-
Massive aluminium, 12.5 mm thick
-
No sharp edges
-
Extra wide (101.5mm) upper surface for large tube rings
The L-UP13 fits i.e. to the following mounts:
-
All mounts with Losmandy-Level quick release head
-
Losmandy GM8, G-11, Titan
-
Celestron CGEM, CGEM-DX, CGE Pro
-
Skywatcher NEQ6, AZ-EQ6, EQ8
Possible attachments- 1 centric slotted hole, length 100 mm
- 2 slotted holes, length 25 mm, 19 mm from center line
- 5 centric bores, 2 pairs with 22.5 space, 1 pair with 38mm space
- 3 centric M6 thread bores, 2 pairs with 35 mm space, 3 pairs with 24 mm space
Delivery contents
Products specifications
|
Thickness
|
12.5mm |
|
Suitable for
|
Quick release Losmandy Level |
|
Length
|
330 mm |
|
Width
|
75 mm (at dovetail) |
