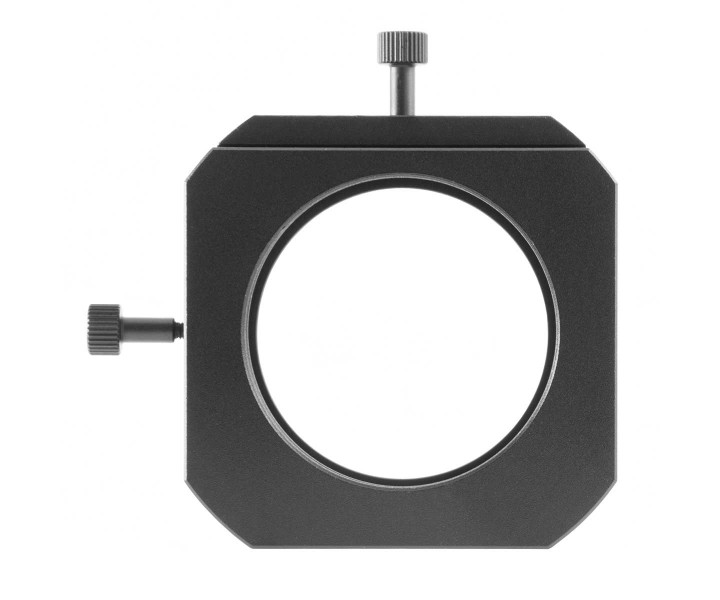

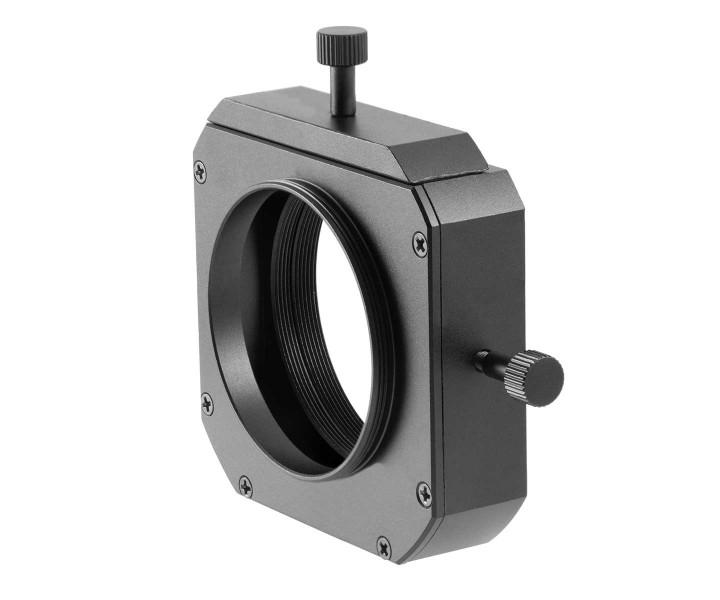

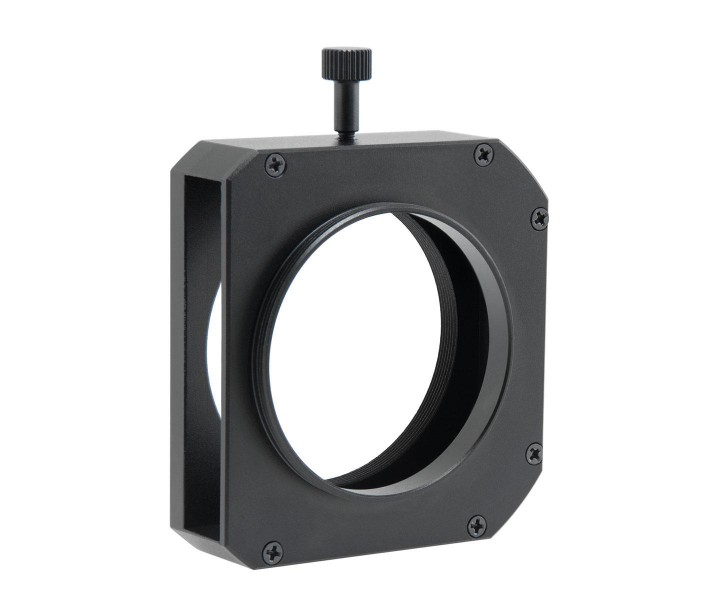

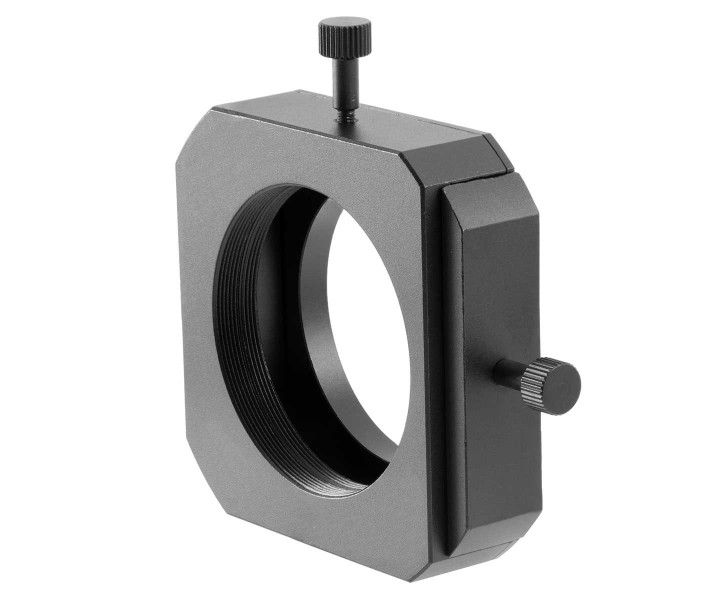

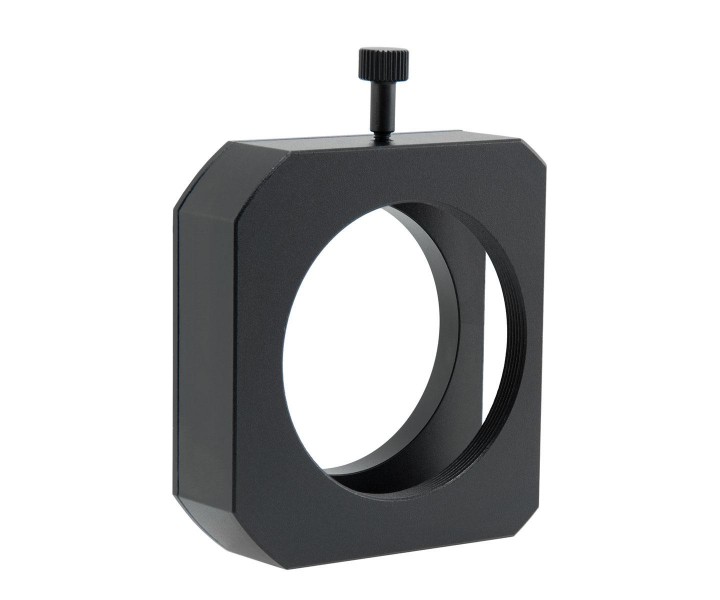

TS Optics M48 filter changer, strengthened designChange filters within only a few seconds without having to remove or
turn the camera. With only 100 grams weight and a diameter of 80
millimeters, this filter quick changer is more compact and lightweight
than any filter wheel. The filter changer is an exiting alternative, any
filter combination is possible, even the combination of 1.25" and 2"
filters. As a result, the filter changer becomes one of the most
versatile accessories on the market.
The advantages at a glance
-
Due to a strengthened housing and longer M48 threads (male and female), the changer is suitable even for heavy cameras.
-
With only 100 grams and 85 mm diameter, the focuser is almost not
burdened, thus filter changing becomes possible even for smaller
telescopes.
-
You can use any filters and filter combinations and even change between mounted 1.25" and 2" filters.
-
Due to only 18 mm length, the changer can easily be combined with most cameras and correctors.
Application -
Deep-sky astrophotography: L-RGB images, false color images,
contrast enhancement by the use of nebula filters with monochrome or
color astro cameras and DSLR
-
Planetary observing and planetary images: quick changing of color filters for enhancing the contrast effect. In photography, the images can be combined well.
-
Deep-sky observing: The impressions without filter, with UHC
filter, OIII filter and other filters can be compared directly. Thus you
can always get the maximum of detail out of the object!

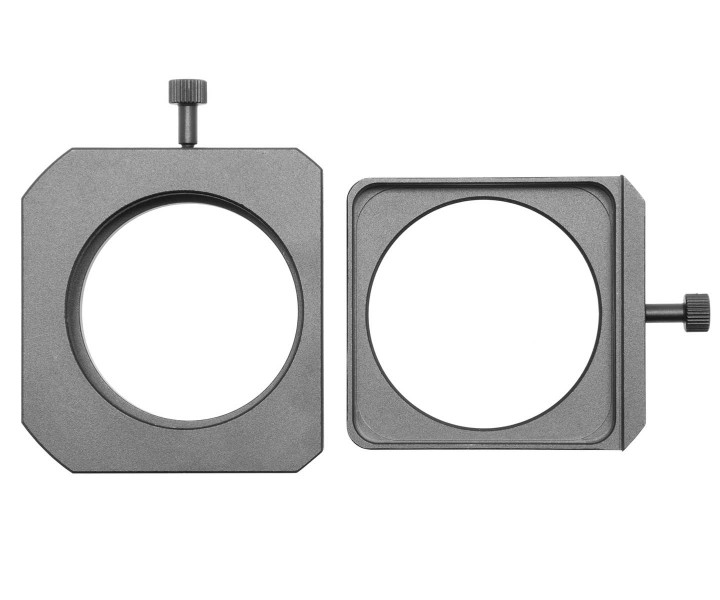

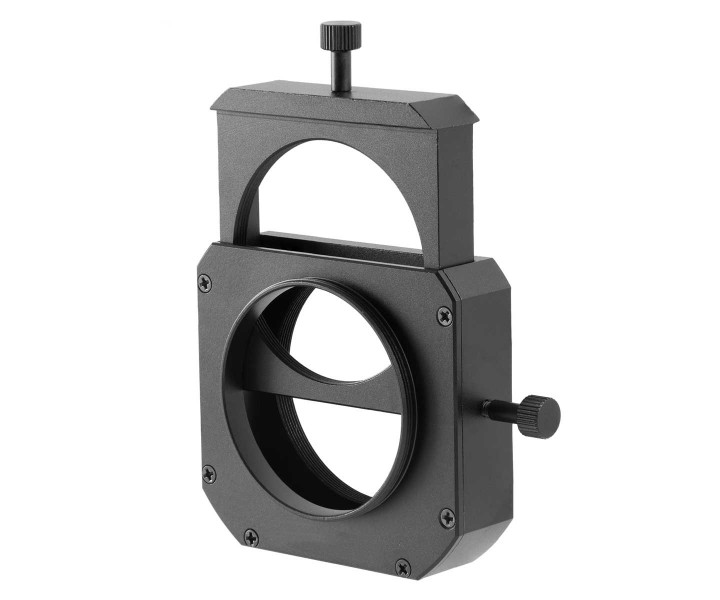

Suitable filter drawer
There are drawers for 2" filters and for 1.25" filters.
-
TSO-TSFES2: drawer for all 2" filters. The cell can be up to 8 mm heigh (the M48 thread of the cell is not taken into account).
-
TSO-TSSchub2: drawer for low-profile 2" filters. The cell can be up to 6.5 mm heigh.
- TSO-TSSchub1: drawer for 1.25" filters.
RecommendationWe recommend one drawer for each filter.
Interchanging of filters by screwing while photographing or observing is
rather impractical.
Optimal storage is provided by a protective case. With this, the filters are always readily available and are carefully stored.
Delivery contents-
Filter changer without filter drawer
Products specifications
|
Weight
|
ca. 3.5 oz |
|
Total length
|
18mm |
|
Connection to camera
|
M48x0,75 - 2" male filterthread |
|
Connection to telescope
|
T2 - M42x0,75 thread (female), length 4,4 mm |
|
Diameter
|
85 mm |
