TS Optics Focal reducer 0.5x - 1.25 inch filter threadThe TS optics 0.5x reducer shortens the focal lengths of the telescope by 50% and doubles the lens speed and field of view. This advantage can be used visual and phototgraphical with cameras with smaller sensors.
Due to the doubled lens speed, the exposure time is reduced even to a quarter!
The adaptionJust thread the reducer into the 1.25" filter receptacle of your photo adapter or eyepiece. The reducer has a suitable thread.
Photographical useThis is the main use for the 0.5x reducer. It doubles the field of view and alters the photographic speed of your telescope accordingly. It can illuminate a field of approx. 12 mm diameter.
Especially at cameras with smaller sensors up to ca. 13 mm this effect is wanted when photographing larger fields.
The TSO-TSVF1 rises the distance between reducer and chip and increases the reduction factor from 0.5 to 0.3x, but is recommended only for photography.
For visual useThis is also possible. But nevertheless, in this realm the reducer is not as versatile as in photography.
It is only useful with 1.25" eyepieces with max. 25 mm focal length; using eyepieces with larger focal lengths will cause vignetting.
When the reducer is screwed into the eyepiece filter thread, the focal point moves approx. 5 mm intrafocal.

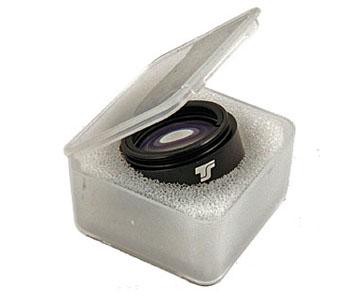

Delivery contents- Reducer with filter threads
- Plastic transport box
Products specifications
Focal length reduction | 0.5 x |
Lenses | 2 Lenses |
Connectingthread | 1,25" |
Coating | multi coating |
Unobstructed diameter | 22.5 mm |
