TS-Optics Astrograph 16" aperture f/5.13 - D=54 mm field

TS-Optics Astrograph 16" aperture f/5.13 - D=54 mm field

The N-AG astrograph is a fully equipped telescope for astrophotography without compromises
Manufacturer : TS Optics
SKU : TSO-N-AG16
Price: 9450.00 € incl tax 19% (Germany)
Estimated delivery time : 1-4 weeks
Product description

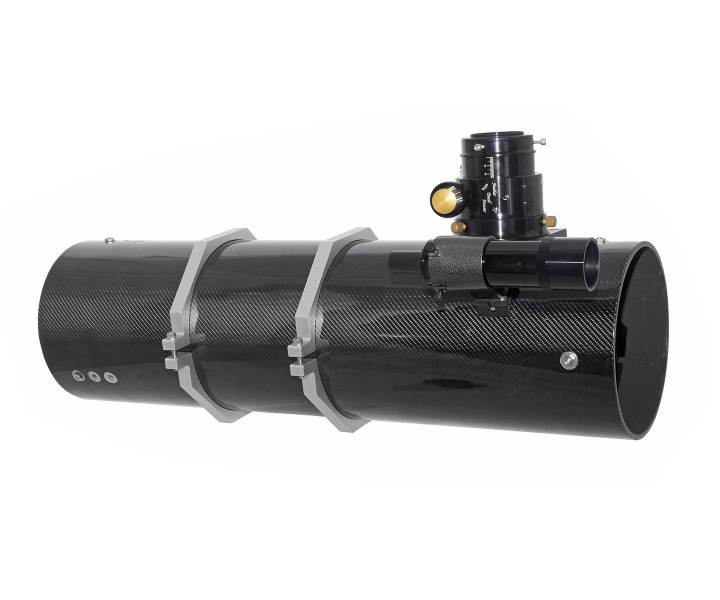

TS Optics 16" f/5.13 Newtonian Astrograph

The N-AG16 is an interesting telescope for astrophotographers who want to use a CCD camera or a DSLR camera with large sensors. Like all models of this series, the N-AG14 also offers a fully corrected and illuminated image field of 54 mm diameter.

TS-Optics N-AG Astrographs for astrophotography without compromises

The N-AG telescopes were developed based on the proven ONTC series. The aim was to develop a telescope for demanding astrophotographers. With the N-AG telescope series, this aim is achieved. Convince yourself!
  • High-quality carbon fiber tube made in Germany - manufactured as carbon fiber hard foam sandwich for optimal stiffness at low weight. The telescope obtains its optimal temperature properties from the. In case of medium temperature changes, refocusing is not necessary anymore.
  • Primary and secondary mirror cell were also made in Germany. The entire collimation of the telescope can be done without tools.

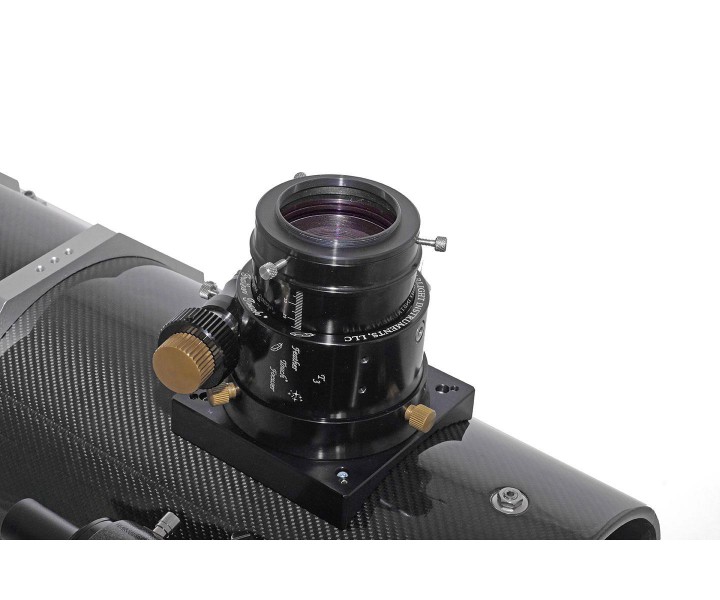

  • Probably the best focuser for Newtonian telescopes - Starlight Feather Touch TRUE-3.0" dual-speed focuser - this focuser clamps 3" accessories together like screwed.

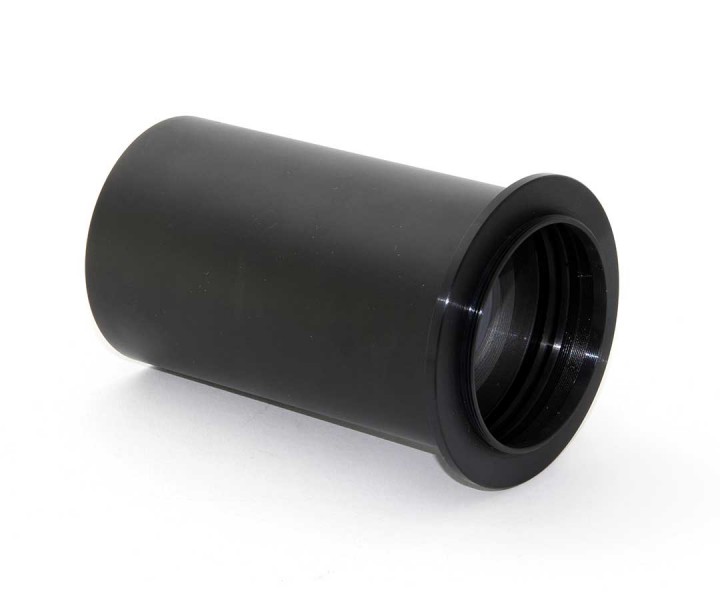

  • 3" coma corrector with the best illumination of all 3" correctors - suitable for all common sensors, perfectly suitable for high-resolution sensors to large format sensors. The adaption to the M68x1 Zeiss style adapter thread is included
  • High-quality primary and secondary mirror for maximum sharpness. After assembling, every N-AG is checked on the optical bench. A production journal is included with every telescope.
  • The edge of the secondary is blackened for preventing stray light and reflexes.
  • CNC machined metal tube rings for best stability and elegant design. Mounting to dovetail bars is done via female M6 threads.
  • Like the ONTC telescoeps, the N-AG astrographs also offer two further focus positions for all common 2" and 3" correctors.

Anti-reflex paint for maximal contrast

For the ONTC Newtonians and also the N-AG astrographs, Berger Antireflexfarbe is used. It darkens the inner wall of the tube as well as velours. Besides the lower weight, the main advantage is that the paint almost does not attract dust. The optics stay clean. With velours, dust quickly accumulates at the main mirror.

Connecting your CCD camera to the telescope

The N-AG astrograph offers a generous working distance of 69.3 mm from the M68x1 connecting thread.

Using full-frame DSLR cameras

Every N-AG astrograph is made to use cameras with large sensors. However, you will see vignetting when using SLR cameras. This comes from the body of the camera or from the adaption via M48. By using flats, you can eliminate this vignetting. Full-frame CCD cameras are not affected by it, as the distance to the sensor is bigger and the cameras usually have a larger connection thread.

Delivery contents
  • Optical tube assembly
  • CNC tube rings
  • 8x50 finder, straight view
  • Dust cap for the front side
  • Starlight True 3" Feather Touch focuser with 3" clamping
  • Reduction from 3" to 2"
  • N-AGK3 corrector
  • M68 connection
  • Collimation manual and manufacturing protocol

Products specifications
Tube materialCarbonfibre
Type of telescopeNewtonian - Astrograph
Mirror materialPyrex
Tuberingsincluded
Viewfinder8 x 50
Full corrected and illuminated field54 mm
Focuser3" Starlight Feather Touch TRUE-3.0"
Connection to eyepiece3" with adapter 2"
Included accessoriesCorrector, M68-adapter
Focal ratiof/4.5 (f/5.13 due to corrector)
Aperture405 mm
Secondary diameter110 mm
Focal length2078 mm
