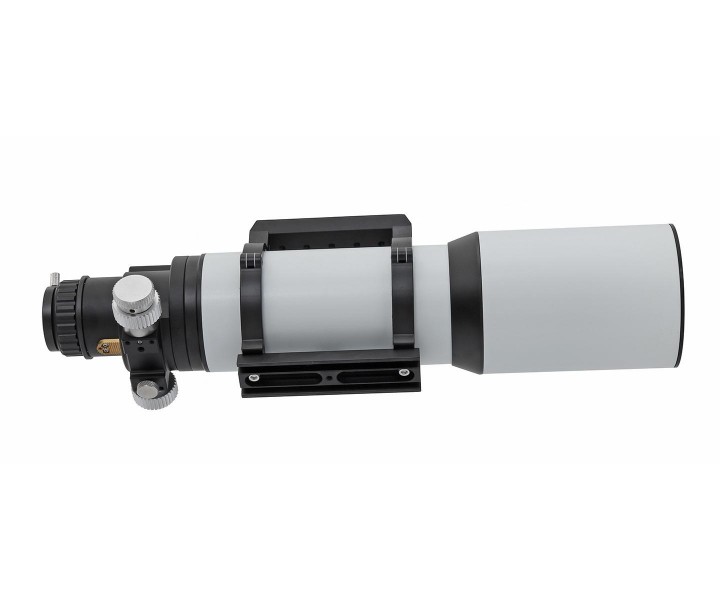

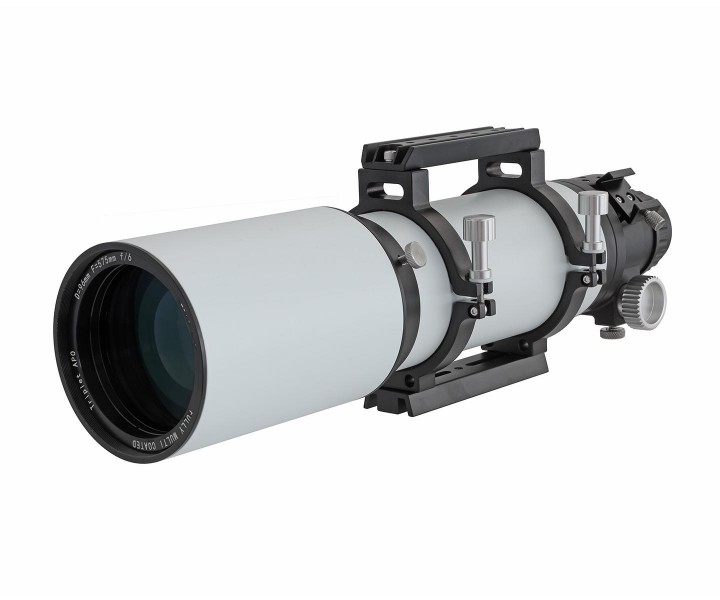

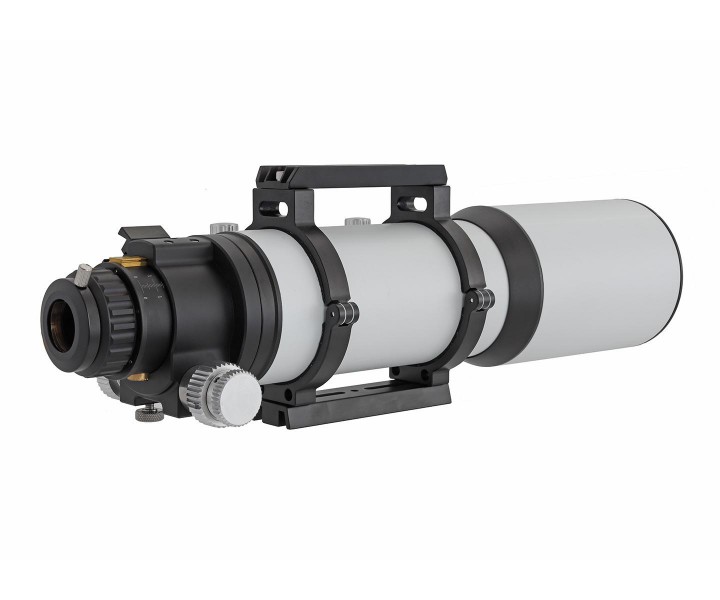

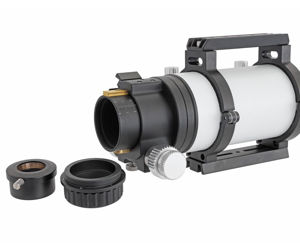

TS-Optics APO Refractor 96/576 mm - FCD100 Triplet Lens from Japan

TS-Optics APO Refractor 96/576 mm - FCD100 Triplet Lens from Japan

TS PHOTOLINE 96 mm f/6 triplet apochromat with color-clean image - high quality triplet objective from Japanese production.

  • Aperture 96 mm / focal length 576 mm / focal ratio f/6
  • Multi-coated 3-element lens with FCD100 APO element (similar to FPL53) from Hoya (Japan) for a color-pure image
  • Lens including cell is made in Japan
  • Internal baffles for higher contrast and against reflections
  • 2.5" RAP dual-speed focuser with improved draw tube bearing - carries accessories up to 10 kg without shifting
  • Connection for screw adaptations via M63x1 female thread, 2" and 1.25" receptacle
    Retractable dew shield for transport
  • CNC tube rings, Vixen/EQ5 style dovetail bars on both sides and finder shoe are included in delivery
  • Each apo is tested and optimized at our optical bench before shipping
Manufacturer : TS Optics
SKU : TSO-TSAPO96
Price: 1499.00 € incl tax 19% (Germany)
Estimated delivery time : 1-4 days
Product description

TS PHOTOLINE 96 mm Triplet Apo for first-class Astrophotography and Observation

The new Photoline apochromat with the color-clean premium triplet lens with glasses from Hoya (Japan) is the optimal solution for astrophotography and for observing. The lens with cell is completely manufactured in Japan. Due to the triplet objective, the apo convinces with strong contrast and a high-contrast image up to the highest magnification range. The apo has also been developed for astrophotographers who value an optically and technically sophisticated solution. The stars are imaged without disturbing color fringes and the image on moon and planets does not become soft even in the highest magnification range.

Astrophotography with the TS Photoline 96 mm f/6 apo:
The apo is already very fast at f/6. This eliminates the need to use a focal reducer to improve the focal ratio. The TS-Optics Photoline 1.0x corrector # TSFLAT25G2 is our recommendation for photography. The corrector is ideal for the apo.

  • Screwed directly to the M63x1 female thread on the focuser
  • Unproblematic reaching of the focus
  • Working distance 65 mm from the M48 connection thread of the corrector (TSVF210 - M48 extension tube is required)
  • 2" female thread for 2" filters is available
  • Illumination and correction up to full frame format

Alternatively, we offer # TSRED94, a 0.92x corrector specially designed for the TS Photoline 96 mm f/6 apo. The focal length is shortened to 530 mm and the focal ratio is improved to f/5.52. The corrector is designed for sensors up to full format and has a working distance of 55 mm. This corrector is also directly screwed to the M63x1 thread of the focuser.

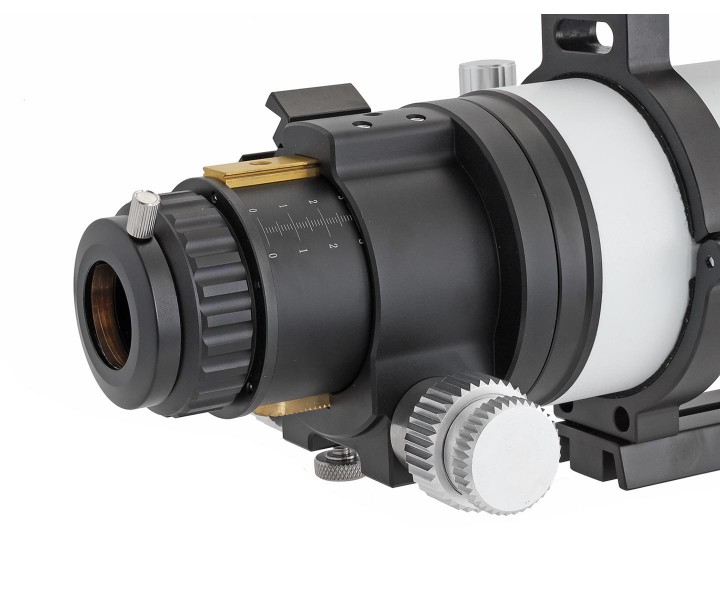

2.5" hybrid focuser for maximum load
To allow you to connect even heavy accessories to the focuser, the focuser is equipped with a special bearing. Ball bearings and a solid rail bearing opposite the adjustment keep the draw tube in position even under heavy loads.

The adjustment itself is decoupled and is achieved via a helical gear. This guarantees fine and smooth adjustment even with heavy accessories. The 1:10 dual speed allows for even more precise focusing. Fixation of the focus position is achieved by locking the adjustment wheel. No screw presses on the draw tube.

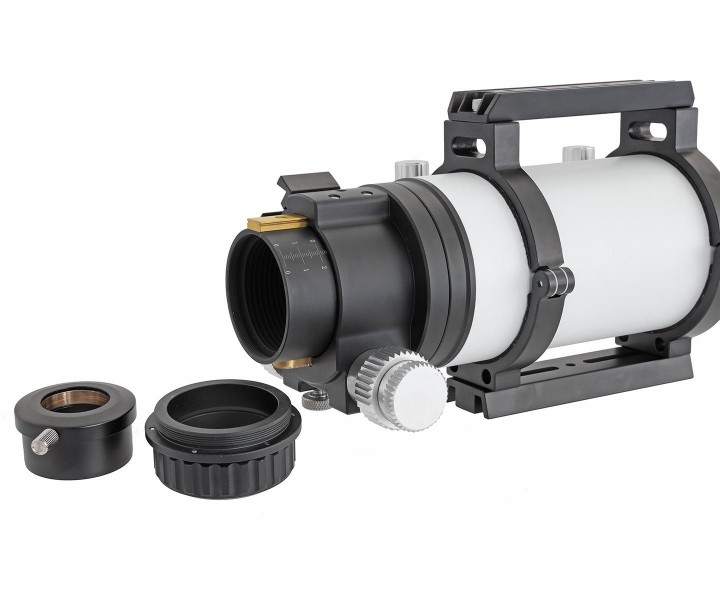

In addition to the 2" and the 1.25" receptacle for visual observation, the focuser also offers the M63x1 female thread for screw adaptations for astrophotography.

360° rotation for correct camera position and quick coupling
The focuser is fixed to the tube. A short rotation option is provided by the # TSROTM48 adapter. This rotation comes on the M48 camera thread of the TSFLAT25G2 corrector instead of the 10 mm extension adapter. The adapter is only 8.5 mm short, you can overcome the remaining 1.5 mm with the M48 tuning ring # M48Abstimmring2. This way, you have the correct working distance of 55 mm again and can even remove or rotate the camera from the corrector in just a few steps.

More information about the FCD100 APO element from Hoya:
FCD100 is an extremely low dispersion optical glass corresponding to fluorite (CaF2). With this glass, in combination with high refractive index optical glasses, excellent correction of chromatic aberrations can be achieved. The difference in dispersion performance to FPL53, for example, is less relevant than the difference in how well polished the optics are. FCD100 is Hoya´s name for this special glass, just as FPL53 is Ohara´s proprietary name.

So we hand over the apos to the amateur astronomer:
Our goal is that you have pleasure with this apo from the beginning. That´s why we check every single telescope before shipping:

  • Cosmetic check for dust and scratches
  • Mechanical inspection, optimal adjustment of the focuser
  • Collimation of the objective and subsequent optical inspection on our optical bench

Scope of Delivery:

  • APO refractor
  • CNC tube rings
  • Vixen/EQ5 style dovetail bars on top and bottom side
  • Dust caps
Products specifications
Focal ratio f/6
Connection to eyepiece 63 mm thread, 2" and 1 1/4" with adapter
Tube weight 11 lb
Type of telescope APO Refractor
Aperture 96mm
Focal length 575mm
Lens Air-spaced triplet objective, Hoya FCD100 as APO element
Focuser 2.5" hybrid focuser with rack and pinion adjustment and ball bearings
Length during observing 51 cm with dew shield inserted
Dewcap diameter 122mm
