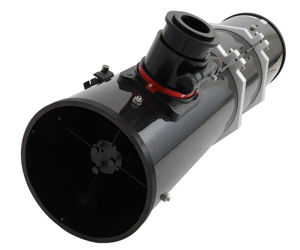

TS-Optics 8" 203 mm f/3.4 Parabolic Newtonian Astrograph - Carbon Tube

TS-Optics 8" 203 mm f/3.4 Parabolic Newtonian Astrograph - Carbon Tube

The fast TS 203 mm f/3.4 Hypergraph with integrated corrector is optimized for astrophotography with large high-resolution sensors.
  • Aperture 203 mm
  • Effective focal length 690 mm
  • Focal ratio f/3.4
  • Full correction up to 44 mm diameter with good illumination
  • Carbon tube for good focus and mechanical stability
  • 3" dual-speed RAP focuser with integrated corrector
  • Working distance 55 mm from M48x0.75 thread with integrated connection for 2" filter
  • Additional threads M54x0.75 and M68x1 available for individual adaptations
  • Each TS Hypergraph203 is tested and optimized on our optical bench before storage
  • Made in Germany!
Manufacturer : TS Optics
SKU : TSO-TSHypergraph203
Price: 3343.00 € incl tax 19% (Germany)
Estimated delivery time : 1-4 days
Product description

The compact Newtonian astrograph has been developed from the proven ONTC series and offers a large corrected field with high speed at the same time. The astrograph is suitable for modern sensors up to full frame format with high resolution at the same time.

Features of the TS 203 mm Hypergraph:

  • Parabolic primary mirror with primary focal ratio f/4
  • 3" corrector and 0.85x reducer screwed into focuser

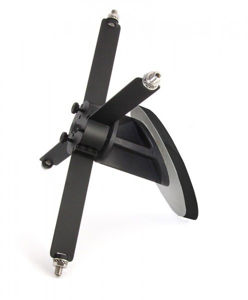

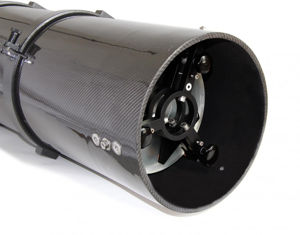

  • 88 mm diameter secondary mirror for good illumination up to full frame format

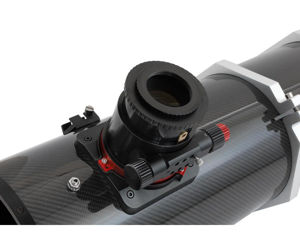

  • Large 3" dual-speed RAP focuser
  • 55 mm working distance from the M48x0.75 thread
  • Screw-in option for mounted 2" filters
  • Additional M54x0.75 and M68 threads for individual adaptations
  • Tilting option on the focuser

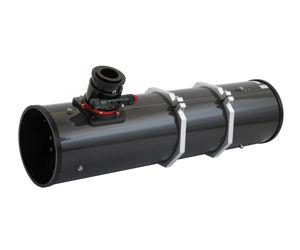

  • Carbon tube and CNC rings
  • The distance between the primary mirror and the secondary mirror can be changed, so other correctors can be used.


This is how we hand over every TS Hypergraph to the amateur astronomer

  • Every TS Hypergraph is assembled for you in our technical department.
  • Only first-class optical and mechanical components are used.
  • Each telescope is mechanically optimized and collimated after assembly.
  • Afterwards, each Hypergraph is tested on our optical bench in autocollimation. The focus is on the interaction of primary mirror, secondary mirror and corrector.
  • After that, the telescope is prepared for shipment.
Scope of Delivery:
  • Hypergraph
  • Finder shoe mounted on telescope
  • Dust caps for front and rear side
  • Dust cap for corrector
  • 2" adapter for focuser (instead of corrector)
  • CNC tube rings
  • M48 camera adapter
Products specifications
Tube materialCarbonfibre
Type of telescopeNewtonian - Astrograph
ColorBlack - Carbon Fibre - Red
Aperture203 mm
Mirror materialPyrex
Back focus length from full in standard focuser55mm
Optical SetNewton parabolic Mirror
Full corrected and illuminated field44mm
Focal ratiof/3.4
Focal length690mm
Focuser3" RAP with Gear Reduction
Included accessoriesIntegrated 4-element coma corrector and 0.85x reducer
