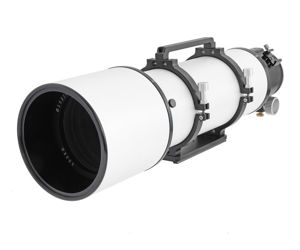

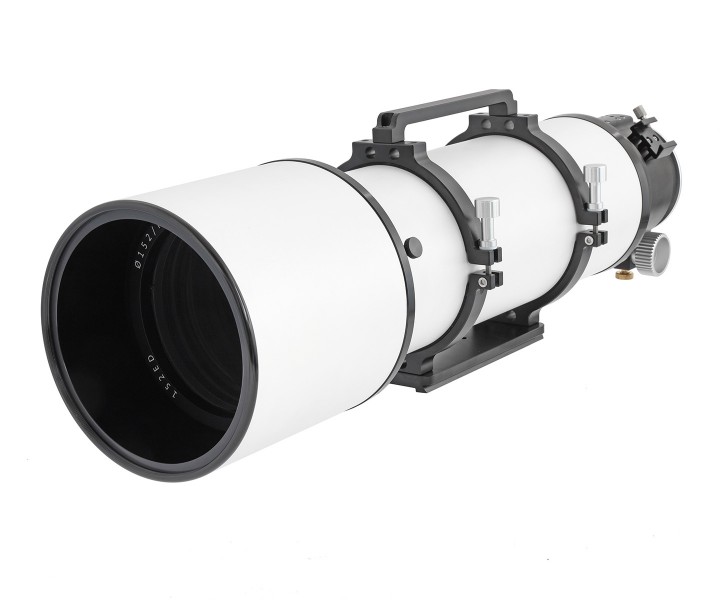

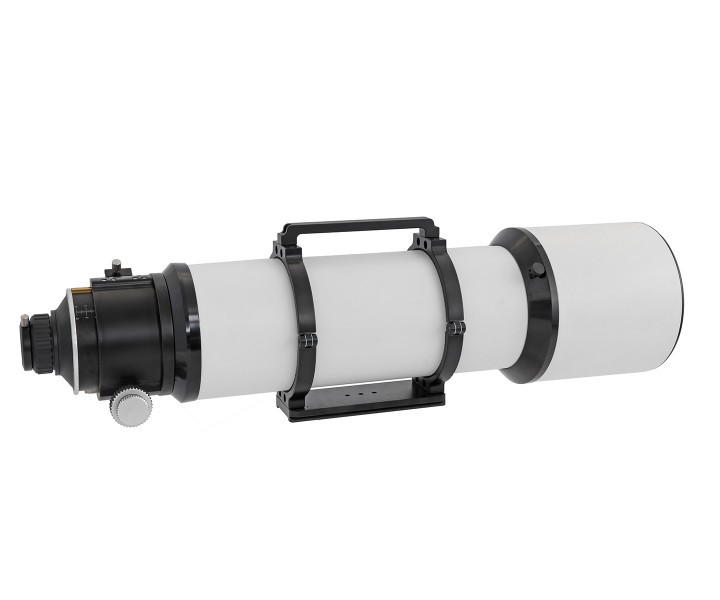

TS-Optics 152 mm f/5 ED Rich Field Refractor with 4" RAP Focuser
TS 152 mm f/5 Rich Field Refractor and Comet Seeker
This 2-element ED is a truly extreme telescope for the ultimate in wide-field observing. The stars are needle fine, as only a well corrected refractor can produce. At the same time, the refractor is still easily transportable with a transport length of about 70 cm and 11 kg. A stable alt-azimuth mount or a good equatorial mount like the AVX or the H-EQ5 are recommended as a base. The 2-element ED lens from Japan offers an image up to about 100x without disturbing false color due to the very good chromatic correction. Sharpness is maintained up to about 250x, but we then recommend a filter to reduce chromatic aberrations.
The 2-element objective in a temperature compensated cell:The optics and the cell are made in Japan. The imaging quality is high and even at the maximum magnification range, the contrast remains hard. The chromatic aberrations are reduced by the ED element made of FCD1 from HOYA.
Astrophotography with the TS 152 mm f/5 ED refractor:Although the telescope is optimized for large field observation, photography of nebulae and galaxies will also succeed with it. The fast focal ratio of f/5 allows short exposure times. However, a field corrector is absolutely necessary to get sharp stars to the edge. We recommend the TSFLAT25DEL 1.0x corrector, which screws directly into the M63x1 female thread of the focuser. The working distance is 55 mm from the M48 thread.

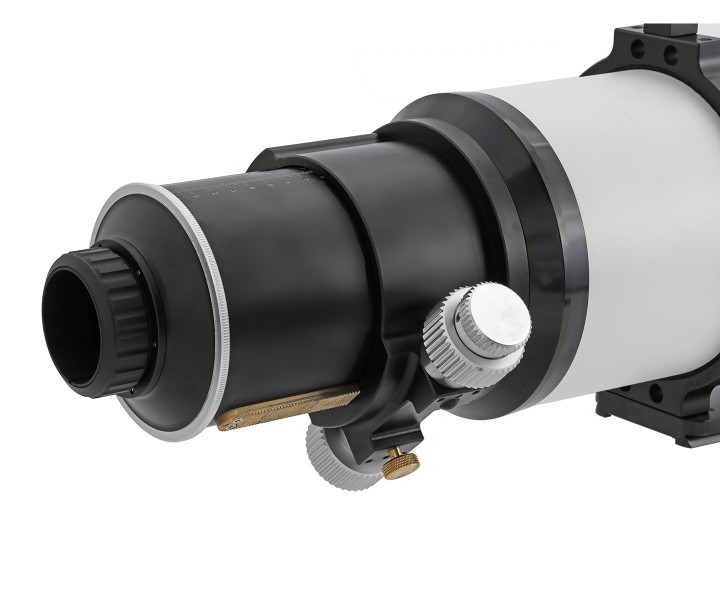

Focuser connector: M102x1 female, M63x1 female, 2" and 1.25"
Scope of Delivery:
- TS 150 mm f5 ED
- Dust caps for lens with extra opening of 90 mm
- CNC rings
- Losmandy style dovetail bar
- Carrying handle
- Finder shoe

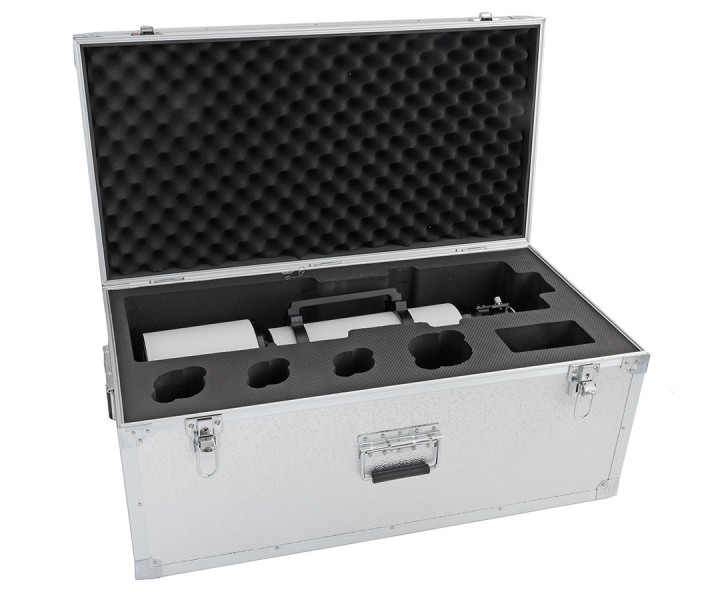

- Carrying case
Products specifications
|
Aperture
|
152 mm |
|
Coating
|
Broadband Mulitcoated |
|
Tube weight
|
24.2 lb incl. Tuberings |
|
Focal ratio
|
f/5 |
|
Focal length
|
760 mm |
|
Tube material
|
ALU / CNC produced |
|
Type of telescope
|
2-lens ED refractor |
|
Focuser
|
4" rack with 1:10 reduction ratio |
|
Total weight
|
11Kg |
|
Lens
|
2-Element ED Objektiv with FCD1 as ED Element |
|
Dewcap diameter
|
204 mm with additional aperture of 90 mm |
|
Transportation length
|
70cm |
|
Connection to eyepiece
|
M102x1 female, M63x1 female, 2" and 1.25" |
|
Tube diameter
|
158 mm |
|
Length during observing
|
750 mm |
