TS Optics 1,25" Ultra Wide Angle eypiece UWAN 7mm 82°

The ultimate high power eyepiece for ultra wide field views!

Manufacturer : TS Optics

SKU : TSO-UWAN7

Price: 99.90 € incl tax 19% (Germany)

Estimated delivery time : 1-4 days

Product description

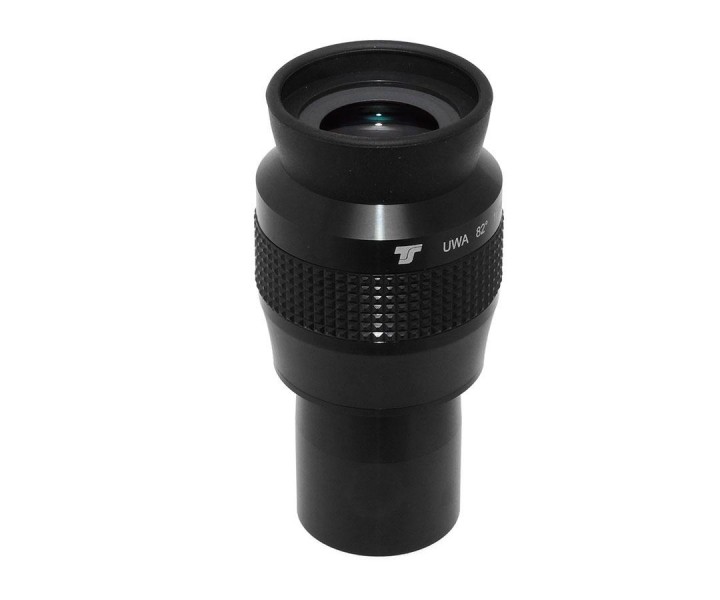

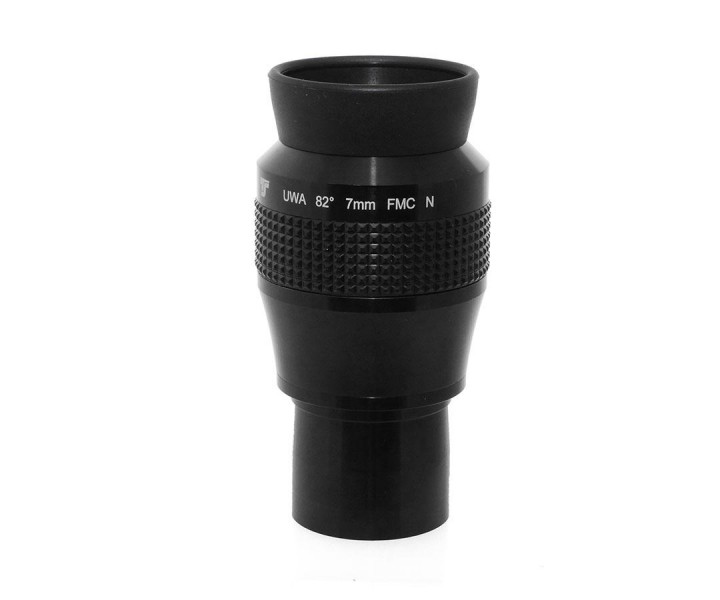

TS Optics UWAN 7 mm 82° Ultra Wide Angle Eyepiece

The UWAN eyepieces from Teleskop Service offer an extreme field of view of 82°. They are the latest generation of his class of eyepieces. We have set particularly great store on a better view, more contrast and suitability for binoviewers. The UWAN 7 mm from TS Optics sets standards for large field eyepieces.

The UWAN 7mm is an eyepiece for high magnification. It is a planetary eyepiece and an exciting deep-sky eyepiece at the same time. Lunar craters and finest details on planets can be observed outstandingly well. The observing properties are much better than the one of a Plössl or an ortho eyepiece. But bright planetary nebulae or double stars can be observed well, too. Resolve globular clusters up to the core, using a suitable telescope. Image brightness and contrast are guaranteed by multi-coating and clean inner blackening.

Features and advantages of the TS UWAN 7mm:

Large, easily accessible field of view of 82°
Fully suitable for binoviewers thanks to tapered construction at the eyepiece side
Soft rubber eyecup - easily foldable for spectacle wearers
Special glasses and high-quality multi-coating ensure a bright image with high contrast.
The 1.25" barrel is tapered at the upper part, thus safe locking without tilting is ensured
The TS UWAN is very long-lasting. Water and even moisture cannot penetrate into the interior of the eyepiece, the good optical performance is preserved even after years

Delivery contents

TS UWAN 7mm
Dust caps at both ends
Cleaning cloth
Stable cardboard storage box with foam inlay

Products specifications

Eye relief	12 mm
Coating	Multicoated
Barrel size / Filter thread	1 1/4" with filterthread
Field of view	82°
Lenses / groups	7 / 4
Focal length	7 mm
Diameter	max. 45mm
Special	Waterproof and nitrogen-filled
Weight	167g
Length	88mm
