TS-Optics 106 mm f 700 mm FCD100 Triplet Apo Lens with Mount

TS-Optics 106 mm f 700 mm FCD100 Triplet Apo Lens with Mount

TS-Optics 106 mm f 700 mm FCD100 Triplet Apo Lens with Mount

Powerful APO lens with mount - ideal for telescope DIY.

  • Aperture 106 mm
  • focal length 700 mm
  • Focal ratio: 1:6.6
  • Multi-coated 3-element lens with FCD100 APO element (similar to FPL53) from Hoya (Japan) for a color-pure image Lens and mount are made in Japan

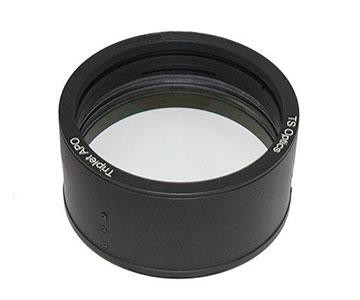

    Note: Photo shows similar product

Manufacturer : TS Optics
SKU : TSO-TSAPO106-O
Price: 1499.00 € incl tax 19% (Germany)
Estimated delivery time : 1-4 days
Product description
TS-Optics 106 mm f/6.6 Apo Triplet Lens in mount

The lens is suitable for DIY of a high quality APO refractor and convinces with a very good image without color errors.

Centering for each individual element.

More information about Hoya´s FCD100 APO element:

FCD100 is an extremely low dispersion optical glass equivalent to fluorite (CaF2). With this glass, in combination with high refractive index optical glasses, excellent chromatic aberration (color error) correction can be achieved. The difference in dispersion performance to FPL53, for example, is less relevant than the difference in how well the optics are polished. FCD100 is Hoya´s name for this special glass, just as FPL53 is Ohara´s proprietary name.

Scope of Delivery:

  • Triplet Apo Lens with Mount
Products specifications
Focal length700 mm
Focal ratiof/6.6
Aperture106mm
LensAir-spaced triplet lens
Total weight1.4 Kg
Length60.5 mm without Thread
ConnectingthreadM114x1 male
