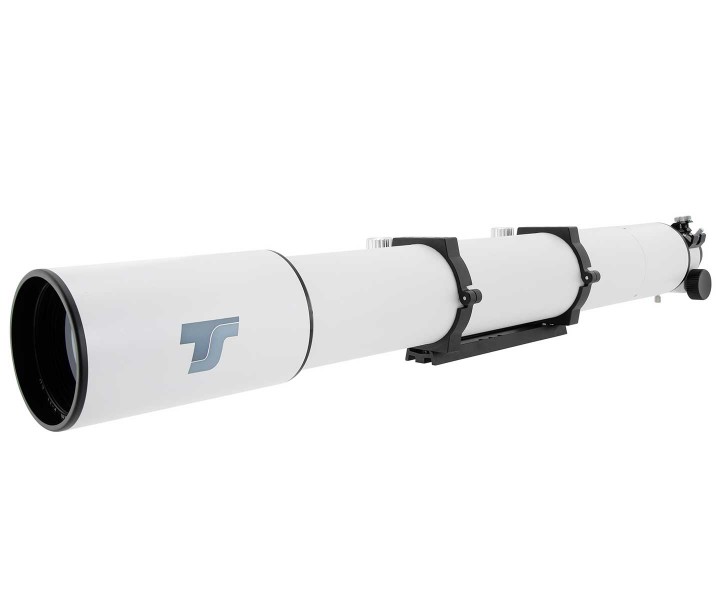

TS-Optics 102 mm f/11 SDP APO Refractor
A refractor with a 2-element objective and a correction like a triplet apochromat, this is realized by the TS 102 mm f/11 SDP Apo. The objective consists of two special glasses, including FPL53 from Ohara (Japan). The apochromat not only holds good chromatic correction in the spectral range of 480-656 nm, but due to the relaxed focal ratio of f/11 and the additional special glass, the correction is still very good even in the violet and short wavelength blue light. This makes the apo a fine telescope for observation and photography, if you want to get the optimal performance out of 102 mm aperture.
Astrophotographic results obtained with this telescope on Astrobin
Here you can find some astrophotographs made with this telescope model: Link to Astrobin

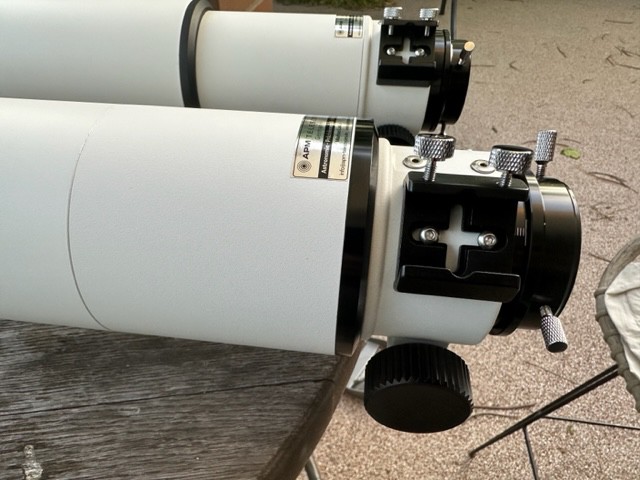

Binocular observation:
If you remove the rear tube end piece, the working distance increases from 150 mm to 270 mm, with the draw tube retracted. This also allows you to combine binoviewers and a 2" star diagonal and observe without path compensation.
Scope of Delivery:
- TS 102 mm f/11 apo
- 2" and 1.25" adapter (compression ring)
- Dust caps for objective and focuser
- Finder shoe
- CNC rings
- Vixen/EQ5 style dovetail bar
Package dimensions : 120 cm x 33 cm x 33 cm, shipping weight 8 kg
Products specifications
| Coating | Multicoated |
| Resolution | 1.15" |
| Limit value | 11.8mag |
| Aperture | 102 mm |
| Max. useful visual power | 220 x |
| Tube diameter | 105 mm |
| Lens | Doublet ED Apo with FPL-53 Element |
| Focuser | 2.5" RPA Focuser |
| Type of telescope | APO ED Refr. |
| Focal ratio | f/11 |
| Focal length | 1122mm |
| Connection to eyepiece | 2" / 1.25" |
| Total weight | 4.6Kg |
| Length during observing | 1000mm with the dew cap inserted |
| Other features | Tube extension 120mm with M85x1 thread |
