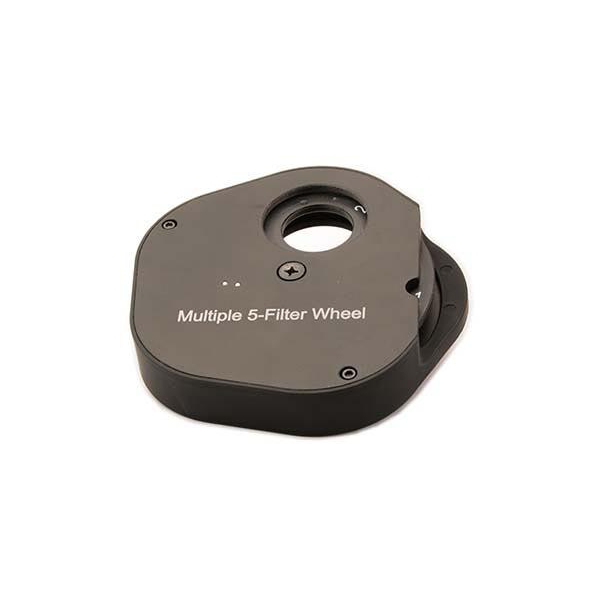

TS Filterwheel for 5x 1,25" filters with T2 and 1,25" connectionFast and secure filter change, optimal for astro imaging and visual observation The filter wheel (5x 1.25") is suitable for both visual observation and imaging. It features a solid aluminium body. Even with heavier cameras or eyepieces, there's no bending or tilting. Every filter position is mechanically indexed.
Advantages at a glance- filters are kept safely against dust and scratches
- filter change within a second without touching the camera or other parts of the setup
- versatile T2 thread on the telescope side and both T2 and 1.25" receptacles on the camera/eyepiece side
- easy to equip with filters
- absolutely (stray-)lightproof
- solid design - completely machined metal
Visual application
The filter wheel accepts all 1.25" eyepieces and can therefore be used directly for visual observation. Equip it e.g. with color filters and see different filter effects directly on the planets. Or use UHC, O[III] and H-beta filters for deep sky observation and you have immediately the correct filter for Planetary Nebulae, other Nebulae and general observation.
Astro imaging

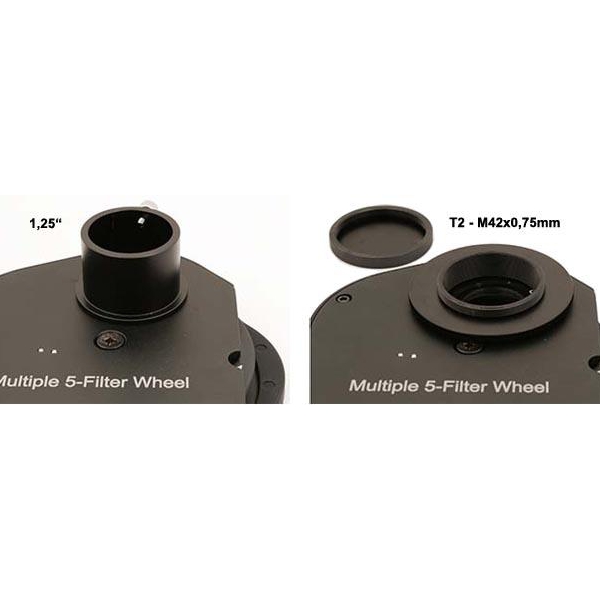

The filter wheel comes with T2 connection allowing a solid screwed solution within your imaging train. A counter ring allows fine back focus adjustments when a corrector is used.

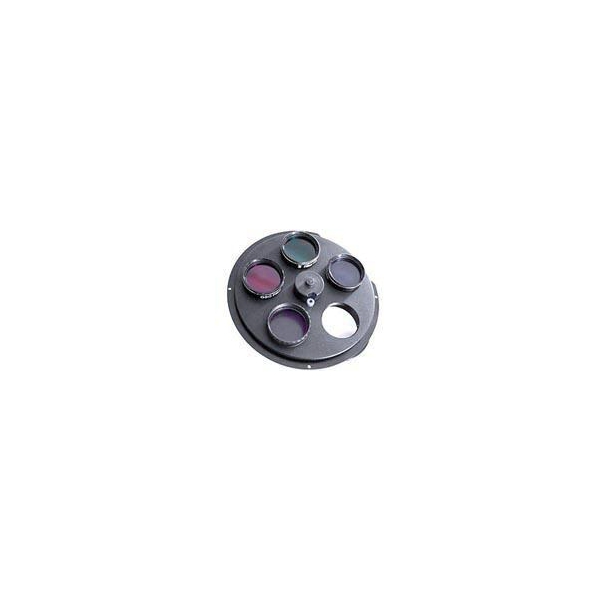

Easy equippingLoosen both screws on the non-labeled side and the central Philips screw. Now you can lift off the upper part.
Delivery contents
- Filter wheel for 5x 1.25" filters
- Adapter to 1.25"
- Adapter to T2 male with counter ring
- T2 screw cover
Products specifications
|
Connection to eyepiece
|
1 1/4" and T2 |
|
for Filter Size / Number of Filters
|
for 5 x 1.25" Filter |
|
Connection to telescope
|
T2 female thread |
|
material
|
metal |
|
Cammera connection
|
T2 |
|
Thickness
|
22.7 mm |
|
Suitable for
|
filter cells with maximum height of 9 mm (without thread) |
|
Backfocus
|
5mm - 7mm (T2 adapter) |
