TS Optics Adapter from M68 to M48 thread
Adapter with two functions
Adapter for visual observations with the TS Imaging Star 80 mm apo
The divisible adapter is connected to the M68 thread of the apo. The M48 part is removed, then the 1.25" star diagonal mirror TSO-TSIS-ZS1 is attached instead. The result is a short adaption for visual observations using 1.25" eyepieces with this telescope.

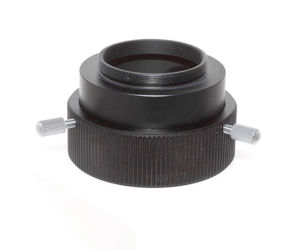

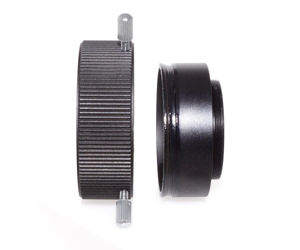

Adapter from M68x1 to M48 with quick coupling and 360° rotation
The adapter offers an elegant adaption to the 2" filter thread for all M68 adaptions with sufficient space to the camera or eyepiece. The length of this adapter is 40.2 mm from the female M68 thread to the male M48 thread. The adapter offers a rapid coupling (quick disconnect from the telescope) and a smooth 360° rotation.
Delivery contents-
M68 to M48 rotary adapter
Products specifications
|
Connection to camera
|
M48x0.75 (2" filter thread) |
|
Suitable for
|
TSAPO81Q, M68x1 |
|
Connection to telescope
|
M68x1 thread, female |
|
Total length
|
40,2 mm (without M48 thread) |
