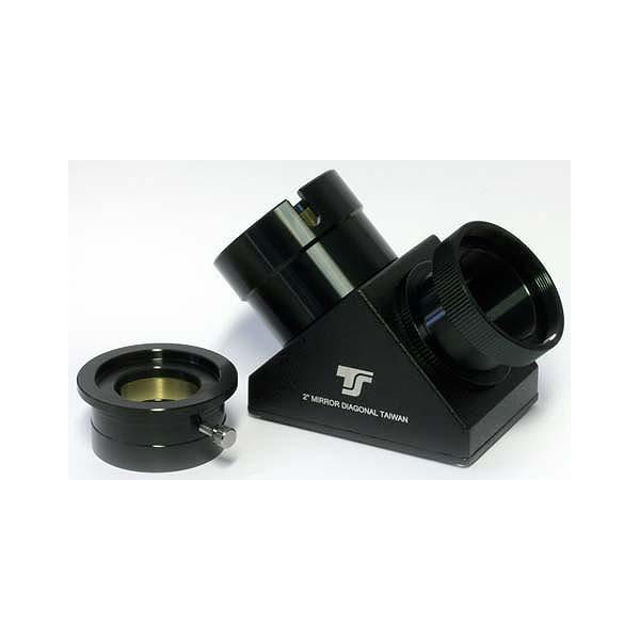

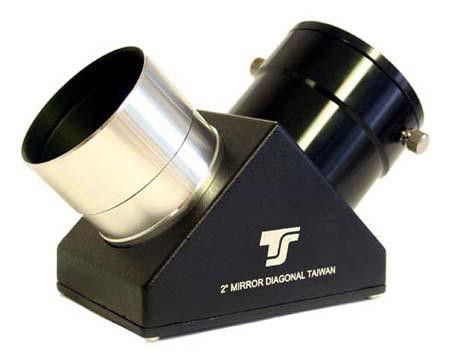

TS 2" Star Diagonal with 91% reflectivity and compression ring
This is a very affordable star diagonal with an exceptional mechanical and optical quality within its price range. The diagonal is inserted directly into a 2" focuser or the 2" visual back of a telescope. It accepts both 1.25" and 2" accessories.
Features
-
all metal design
-
2" barrel with M48 filter thread and safety undercut
-
2" accessories are held in place with a brass compression ring
-
1.25" adapter also with compression ring
-
very good optical quality

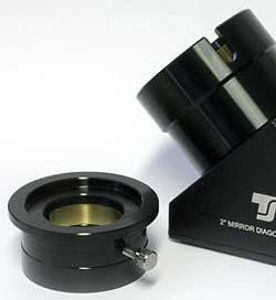

Brass Compression Rings ( 2" and 1.25" )
1.25" and 2" accessories are securely held in place using a compression ring.
The advantages of compression rings compared with regular locking screws are:
-
the compression ring avoids signs of use. Accessories are not scratched.
-
safer grip and a reduced tendency that accessories are tilted out of the optical axis.
Delivery contents
-
2" diagonal mirror with safety undercut and compression ring
-
2"-on-1.25" adapter with M48 filter thread and 1.25" compression ring
-
dustcaps on both sides
-
strong giftbox
Products specifications
|
Connection to telescope
|
2" |
|
Connection to eyepiece
|
2" and 1 1/4" |
|
Clamping
|
Compression Ring Eyepiece Clamp |
|
Optical Length
|
110 mm |
|
Housing material
|
CNC machined metal body |
|
Coating
|
91% reflection |
|
Filter thread
|
2" / M48 |
