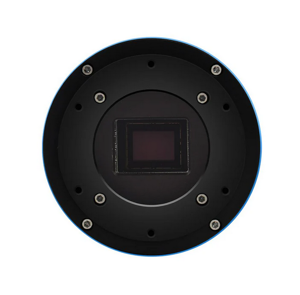

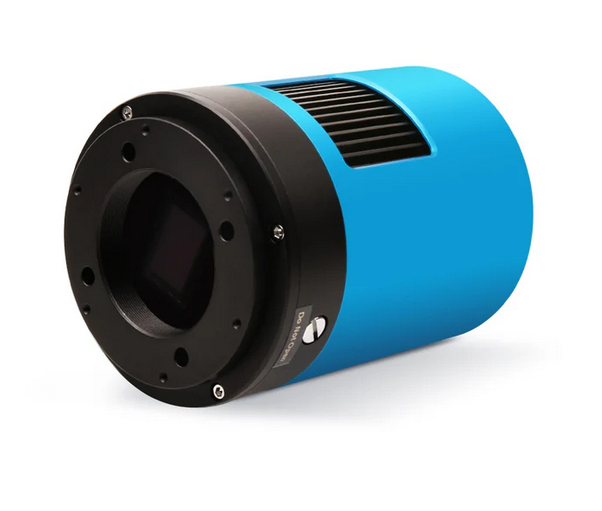

ATR432M features a resolution of 1600x1100 pixels, 9 my pixels and a 1.1-inch optical format. It offers support for high frame rate mode(109FPS at all Pixel Readout 12 bit),and has a readout noise level as low as 2.4e. Additionally ,the camera have an excellent TEC cooling system maintains precise temperature control within a deviation of 0.1?, while the dew prevention heater (window heating) further enhances performance.

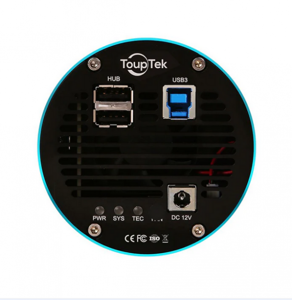

Please remember: all ToupTek Astro DSO cooled cameras can only be powered by 12V/3A DC power supply. We recommend using the power adapter that comes with the camera or a lithium-ion battery with stable output of 11-14V. Please do not use power supplies that have falsely stated specifications or unstable outputs to power the camera, as this may affect image capture or even damage the camera.

ATR432M features Sony IMX432M 1.1 inch Format sensor

• Diagonal: 17.5mm
• Pixel Size: 9my x 9my

DDR3

ATR432M camera has a 512MB (4Gb) ultra-fast memory buffer to ensure stable image transmission.

Two-stage Thermoelectric Cooling (TEC) Cooling-System

ATR432M is designed with an integrated heat dissipation structure and an efficient cooling module. The cooling system of ATR432M features a two-stage Thermoelectric Cooling (TEC) with controllable electric fan assisting in heat dissipation. This allows the image sensor to operate at temperatures up to 42 degrees Celsius lower than the ambient temperature. The exposure time can be set for up to 1 hour, ensuring that every minute detail is captured. Even in summer, it can still run stably all night with cooling temperatures ranging from of -5°C to -10°C.

Anti-Dew-Technologie

ATR432M adopts the new anti-dew technology , which can effectively solve the condensation problem through heating. This heating function consumes about 5 watts, which can be turned off via software to save power. Additionally, The dew heater at the protection window has 4 adjustable levels, allowing users to find the heating power that best suits their needs.

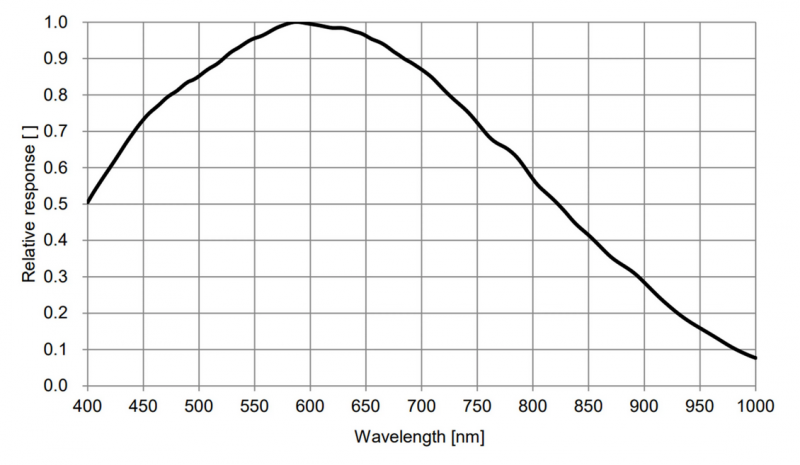

Spectral Response

Mechanical Diagram

Adapter for Backfokusdistanz

Connection for Acc.

Scope of Delivery

Connection accessories with consideration of the back focus
