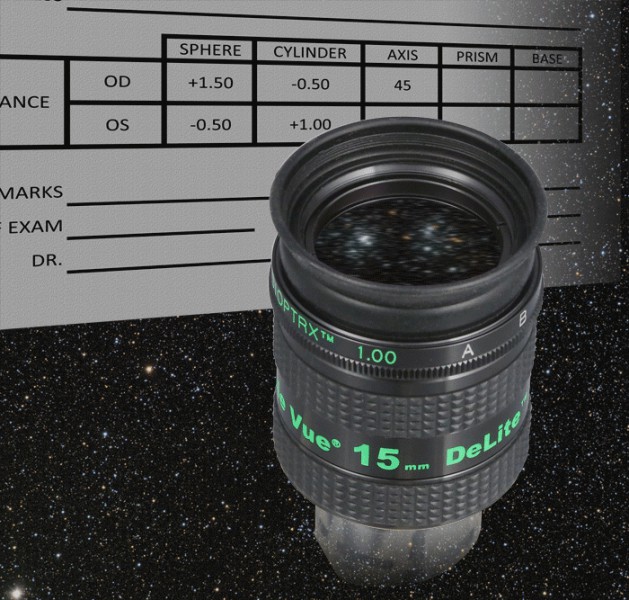

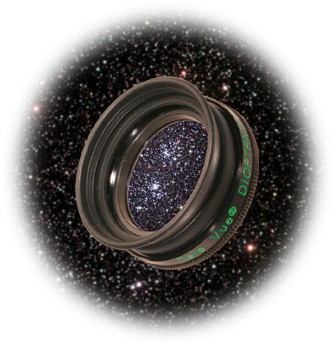

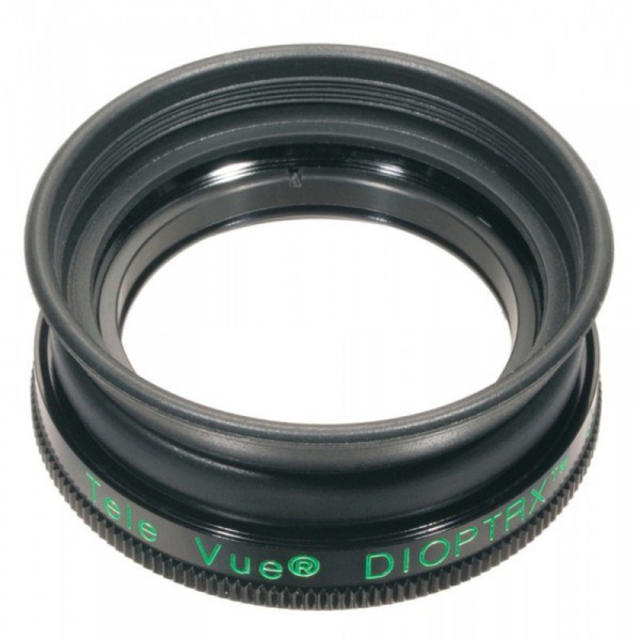

Tele Vue Astigmatism Corrector - 0.50 dpt
Many people have a slight astigmatism (curvature of the cornea). During the day, when the pupil of the human eye is very small, this is not noticeable. Very few people need glasses for this reason.
During the night, however, the pupil is wide open. This makes the astigmatism more noticeable. The stars are not nicely point-shaped, but distorted. This reduces the aesthetic pleasure of observation and effectively also the achievable limiting magnitude.
Advantages over correction with glasses
- better coating and thus better light transmission
- more comfortable viewing - you have the same viewing behaviour as without glasses
- very precise adaptation
Adaption of the Tele Vue Dioptrx to eyepieces
- take off the eyecup of the eyepiece
- put on the Dioptrx and turn the upper part clockwise
- this fixes the dioptrx to the eyepiece
The Dioptrx fits these eyepieces
- 31mm Nagler type 5
- 26mm Nagler type 5
- 41mm Panoptic
- 35mm Panoptic
- 27mm Panoptic
- 22mm Panoptic
- 55mm Plössl
- 40mm Plössl
- 32mm Plössl
- Radian eyepieces
- Nagler type 4 (22mm, 17mm, 12mm)
- Panoptik 19mm & 24mm / Nagler 20 (with adapter DEA 0001)
- all Nagler type 6 (with adapter DNA 6000)
- all BAADER Hyperion eyepieces except the Hyperion Zoom
- 2" WA Erfles from TS , 2" Superview eyepieces , TS WA 26 , TS WA 28
- Antares ERFLE 40 - Antares MER 30
- APM Super Zoom Eyepiece 7.7-15.4mm
Scope of Delivery:
