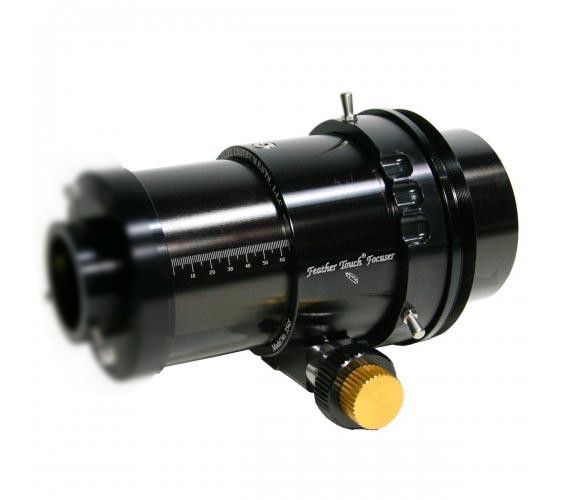

Starlight Feather Touch 3.5" Focuser - Draw Tube Travel 114 mm
The biggest focuser of Starlight Instruments is perfect for high-end APO telescopes and big Ritchey-Chrétien telescopes. It is one of the best focuser worldwide.
The advantages of the Feather-Touch focusers from Starlight:
- 100% correct position of of the image plane - no tilting or bending
- good illumination also for larger sensors
- gear reduction for exact focusing
- free adaption to different telescope types (connection adapters can be found at the accessories recommendations)
- Brake for adjusting of the drag makes clamping unnecessary
- adjusting and bearing are uncoupled
- brass gear rack and hardened stainless steel gear wheels ensures precise adjustment even under maximum load
- long life cycle - the Feather Touch focuser is made for at least the life of the telesope it is attached to
- wide range of accessories and adapters available, including motorisation

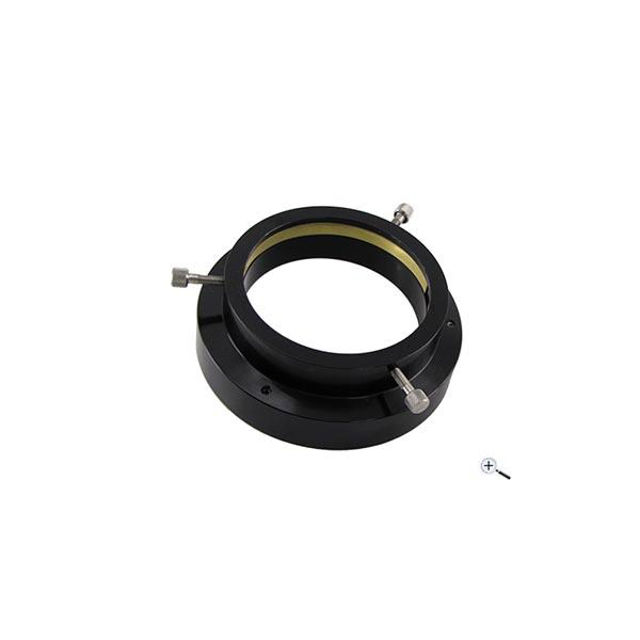

Note: Connection adapters to the telescope and eyepiece-side adapters are not included in the scope of delivery. See under FT adapter / end caps/eyepiece adapter
In the box:
Products specifications
|
Reduction
|
1 : 10 Micro Focusing |
|
Travelling distance
|
114 mm |
|
Max. Payload
|
20 lb |
|
Unobstructed inner diameter
|
89mm |
|
Modell / Draw Tube Drive Mechanism
|
R&P focuser |
|
Connection to eyepiece
|
4 3/32 X24TPI outside |
|
Lifting Capacity
|
up to 9 Kg |
|
Racked Out from Mounting Face
|
247mm Racked Out from Mounting Face |
|
Racked In from Mounting Face
|
132mm (Racked In from Mounting Face) |
