Star Analyser 200* Professional Astronomers routinely use the power of spectroscopy to reveal the secrets of the universe. Now the STAR ANALYSER can do the same for the amateur imager at an affordable price with this simple telescope attachment.
* Used like a conventional 1.25 inch filter, it is the ideal accessory for today's low cost astronomical imaging cameras, webcams and video cameras.
* For example, with a telescope of just 80mm aperture and a simple unmodified webcam, the hidden characteristics of hundreds of stars down to magnitude +4 can be revealed. With a 200mm aperture and a sensitive long exposure CCD imager, the identification of bright Novae and Supernovae or even a measurement of the expansion of the universe from the redshift of a Quasar are possible.
* The new SA200 is not a replacement for the SA100; It has a lower profile than the SA100 and twice the dispersion, making it suitable for applications where the filter to sensor distance is smaller than normal, such as with close coupled filter wheels. It is also intended for users with larger aperture telescopes and/or with large camera sensors.
Features:

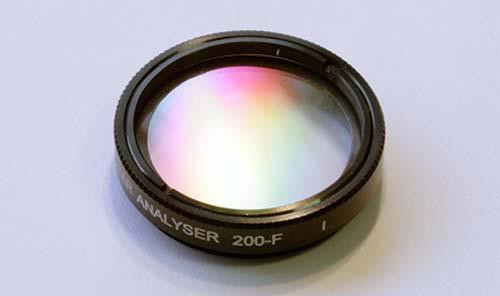

High quality transmission diffraction grating mounted in a standard 1.25 inch filter cell
Anti- reflection coated glass protects the grating surface
High efficiency 200 lines/mm blazed design
Simple to use - Screws into a camera eyepiece adapter like a normal filter
Spectrum direction marked on the filter cell. A locking ring maintains the orientation
Optimised for the small CCD sensors found in popular webcams, video and astro cameras.
Star and spectrum can be recorded in the same image, which aids identification and calibration
Grating distance can be adjusted if desired using spacer rings (purchased separately)
Can also be fitted to an eyepiece for visual use
Scope of delivery:
1 Grating, mounted into a 1.25" filter cell
1 Manual
