DOUBLE STACK PERFORMANCE FROM A SINGLE ETALON !!
The

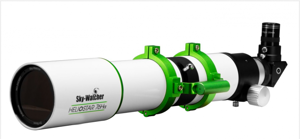

very exciting Sky-Watcher HELIOSTAR-76Ha is a safe solar telescope for
the observation of active solar prominences and other solar details in
the H-alpha band, boasting an exceptional performance of 0.5 Angstrom or
better.
The Heliostar 76mm H-alpha Solar
Telescope brings a new light to the Sky-Watcher family by offering a
dedicated Hydrogen-alpha (H?) solar telescope to the lineup.
Hydrogen-alpha solar observing allows you to unlock the incredible
dynamics of surface of the Sun far beyond what a white light solar
filter can deliver. From solar prominences on the limb of the Sun (often
mistakenly called 'flares'), to active sunspot regions, bright plage
patches, surface granulation, wispy, snake-like plasma filaments, and
more, the star of the solar system is yours to capture in breathtaking
views and images. When viewing the Sun in the narrow H-alpha bandwidth,
the observer is rewarded with thrilling, awe-inspiring real-time views
of our nearest star in it's full fiery majesty, seething with activity.
The
HELIOSTAR-76Ha uses multiple technologies to protect the human eye
during solar observation, including an infrared thermal ray reflection
film, a special filter to block heat, and a filter to block UV light
from entering, blocking stray light that affects observation. It uses a
combination of front and rear filters to allow only monochromatic light
with a wavelength of 656.28 nanometres emitted by hydrogen atoms to pass
through, whilst blocking other light of different wavelengths. This
allows the observation of quite active prominences in the H-Alpha band.
Sky-Watcher's
Solis etalon technology allows the Heliostar-76Ha to achieve a 0.5A
bandpass without the costly expense and complexity of a second etalon to
achieve the same performance. This allows the observer to obtain
detailed images of the solar disk right out of the box without any
further expense.
The HELIOSTAR-76Ha conforms
to and meets the transmission requirements of ISO 12312-2:2015 (Filters
for the direct observation of the Sun). Always use in accordance with
the instructions and exercise the utmost of caution when viewing the
Sun..
Features:- Magnification (with included eyepiece): 31.5x
- Eyepiece 1.25’ 20mm, 70° wide angle
- Telescope focal length: 630mm f/8.3
- Clear aperture 76mm
- Etalon bandwidth: <0.5 Angstrom
- Tuning method: Pressure tuning’
- 11.5mm block filter
- 90° (1.25") solar zenith mirror
- Safe solar finder
- 2’ dual-speed Crayford focuser
- Tube rings and 45mm Vixen style dovetail bar with 1/4 inch thread
- Universal smartphone adapter included
- Suitable for CCD photography with 1.25’ adapter - backfocus 58mm or less
- Size of the solar image: 6mm
- Sky-Watcher SolarQuest Solar Go-To/Tracking mount recommended (optional)
- Safety Compliance Certification: ISO12312-2:2015
- OTA Length: 600mm
- OTA Weight: 3.8kg
- Case included in delivery
Scope of Delivery
- Heliostar-76H? telescope tube
- 90° 1.25" star diagonal mirror with block filter
- 20mm 1.25’ 70° wide-angle eyepiece
- Solar finder
- Tube clamps with dovetail bar
- Case
Note: Delivery Date ~ Jan/Febr. 2025
Products specifications
|
Type of telescope
|
H-Alpha Solar Telescope with integrated Etalon |
|
Focuser
|
2" Crayford Focuser |
|
Band Pass
|
<0.55Ä |
|
Focal length
|
630mm |
|
Aperture
|
76mm |
|
Focal ratio
|
f/8.3 |
