Computer-controlled equatorial WLAN GoTo mount for all latitudes

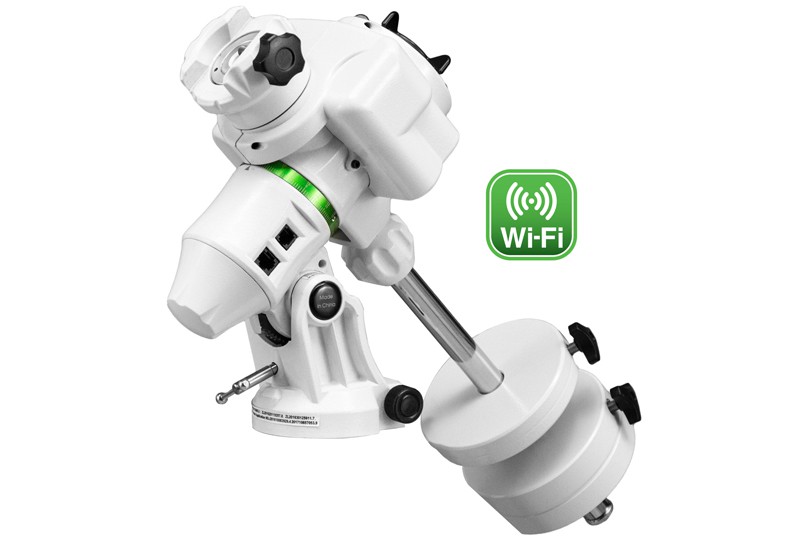

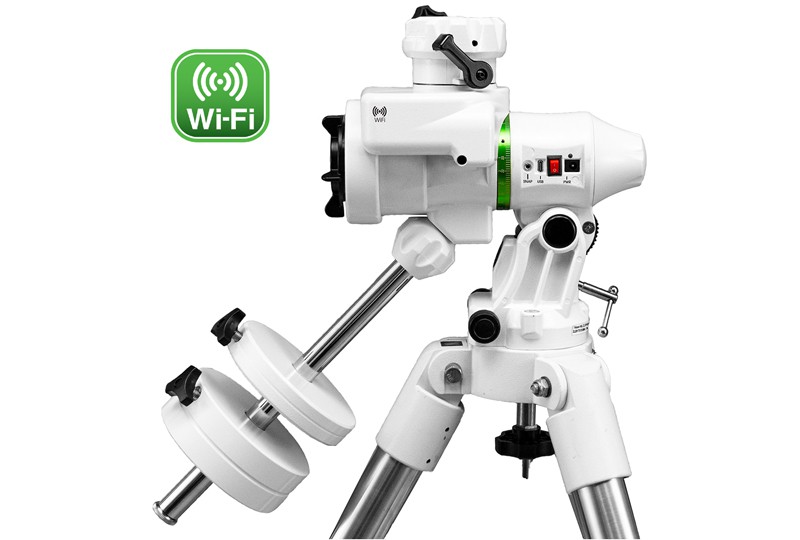

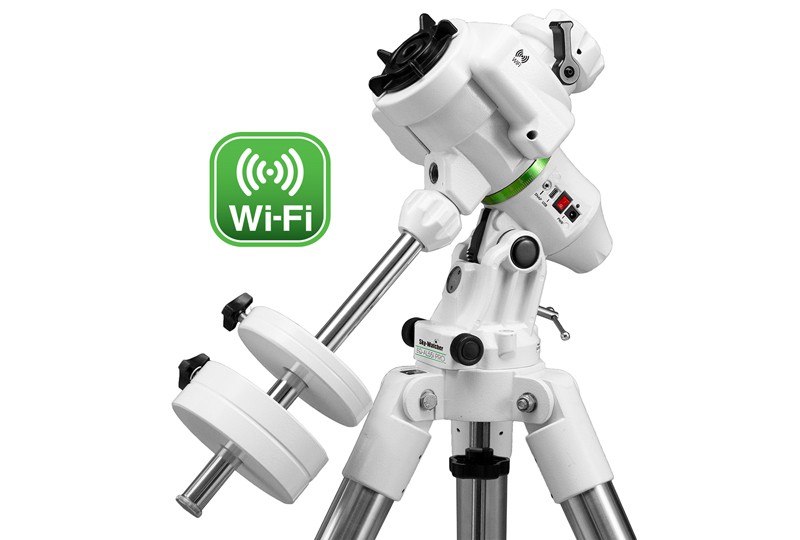

This wonderfully versatile, new Sky-Watcher EQ-AL55i Pro is equipped with
equipped with a counterweight bar that can be adjusted in two positions allowing it to be used at all latitudes from 0-90 degrees and thus avoids the problems that arise with most other mounts at extreme polar altitudes. The EQ-AL55i is fully controlled via a smart device using the built-in WLAN module with the help of the freeware "SynScan Pro App" for iOS and Android.
The EQ-AL55i Pro mount is already equipped with a built-in, illuminated polar finder scope for precise alignment to the celestial celestial pole and includes connections for USB-C, autoguider as well as an optionally available SynScan hand control box and a control socket for triggering a DSLR (also programmable via
the SynScan Pro app)
The EQ-AL55i Pro allows a payload of up to 10kg and is equipped with a 45mm
dovetail clamp to attach a huge range of telescopes and accessories. accessories can be attached. The EQ-AL55i Pro is a great mount for mount for the astrophotographer, but also for the visual observer observer who wants a powerful mount that is easy to transport.
mount that is easy to transport. In addition, an optional 200mm tripod extension column (no. 20860), a SynScan hand control box with cable (no. cable (No. 20948/20193) and a 5kg counterweight (No. 20950) are also available.
Scope of delivery:
- EQ-AL55i Pro mount

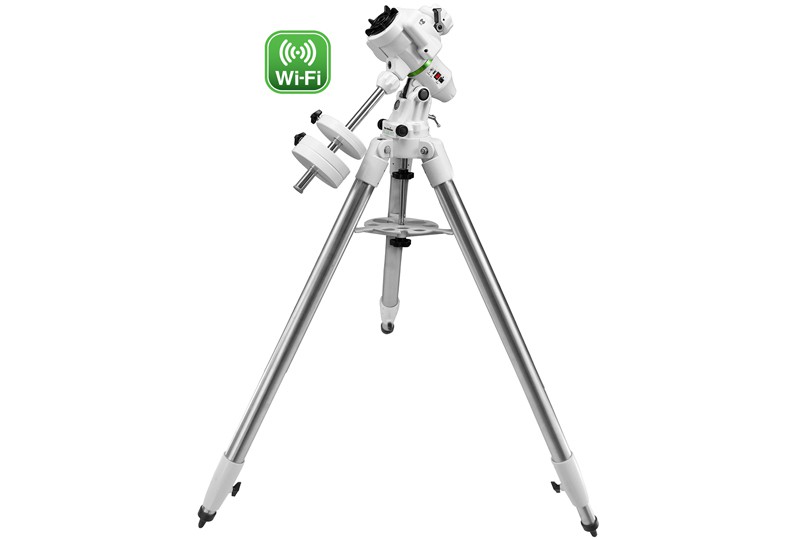

- 1.75" tripod with stainless steel legs and support plate
- 1.8kg / 3.5kg counterweights
- SkyWatcher EQ-AL55i PRO SynScan equatorial telescope mount
Products specifications
Type of mount
|
Parallactic GOTO mount |
Payload max. (depending on using and demand)
|
10 Kg |
Polar hight adjustment
|
0 - 90° |
Motors
|
DC Servo Motors |
Motor control
|
SynScan GoTo |
Power Supply
|
12 V, 2 A |
Tracking speeds
|
0.25 x, 0.5 x, 0.75 x, 1 x |
Weight over all
|
19.5Kg incl. Counterweight |
Connections
|
USB, SNAP, Power, ST-4 & Synscan Hand Controller (optional) |
Diameter of Gear / Number of Tooth
|
R.A. Worm Gear 73.4mm Diameter, 144 Teeth, DEC Worm Gear 51.6mm Diameter, 100 Teeth |
