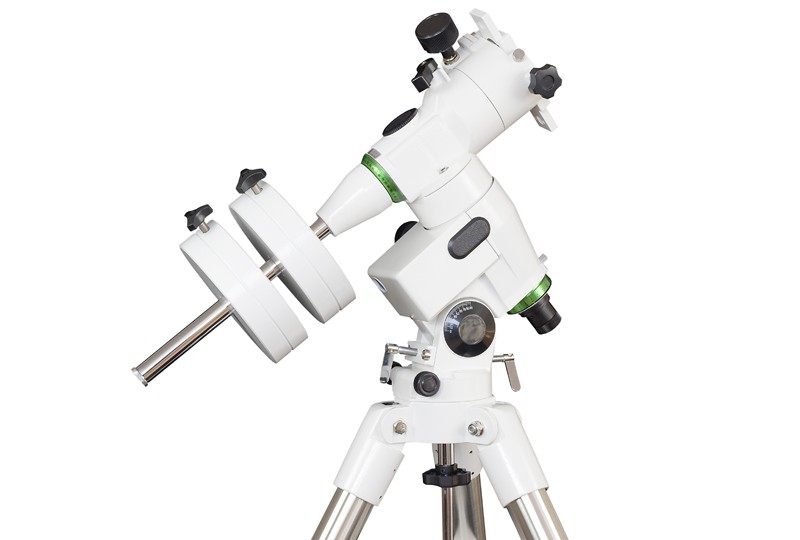

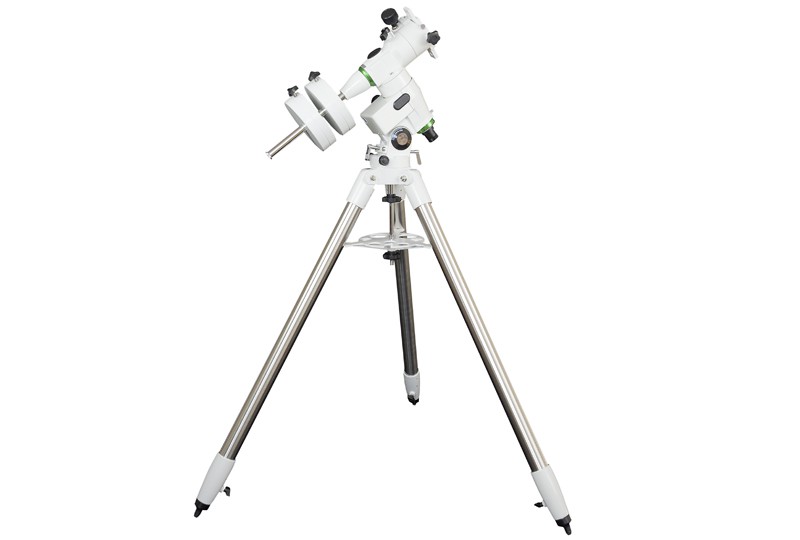

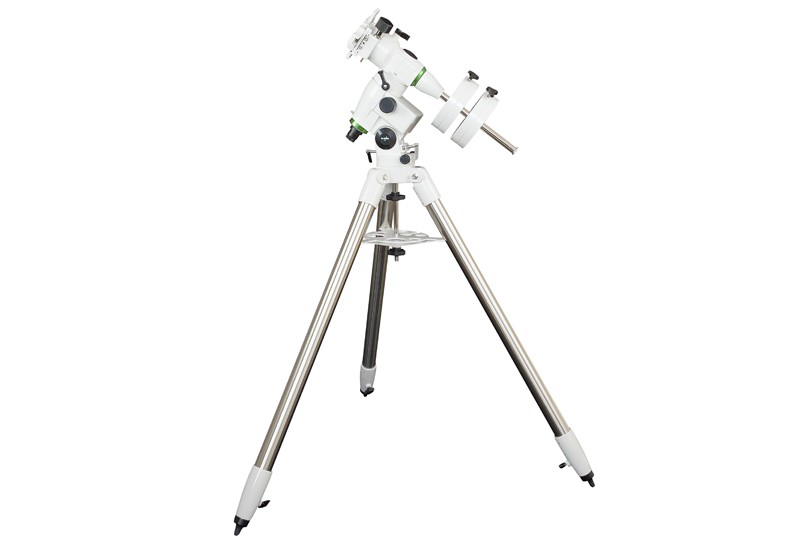

EQ-5 heavy-duty equatorial mountThe very sturdy EQ5 equatorial mount provides excellent precision and
stability and a host of other useful features for the serious
astronomer. The mount rests firmly on a large, adjustable stainless
steel pipe tripod with accessory tray. Supplied complete with a bubble
level, latitude adjuster with micrometer scale and an azimuth
polar-alignment adjuster. It also features engraved aluminium setting
circles and manual slow motion tracking controls. An optional polarscope
is available for aiding in polar alignment. Optional single-axis and
dual-axis D.C. motor drives can be installed for auto-tracking purposes.
Delivery contents-
EQ-5 with 2 slow motion knobs
- counter weight
- dove tail clamp compatible with Vixen GP and Meade LXD
- adjustable stainless steel tripod
Products specifications
|
Polarscope
|
Optional |
|
Type of mount
|
Equatorial mount |
|
Tripod
|
Stainless Steel Tripod |
|
Counterweights
|
Inclusive |
|
pack size
|
106 cm x 45.5 cm x 26cm |
|
Polar hight adjustment
|
latwith micrometer scale and an azimuth polar-alignment adjuster |
|
Telescope attachment
|
dove tail clamp compatible with Vixen GP and Meade LXD |
|
Weight over all
|
22.3 kg |
|
Payload max. (depending on using and demand)
|
10 kg (visual) |
