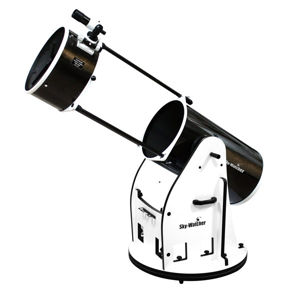

Skywatcher has developed with the new skyliner series an advancement of Dobsonian engineering. It is possible to push the whole tube together. Therefore the Dobsonian becomes ultracompact for transport and also for storage. When you receive your observation point you only have to extend the tube and in a very short time you have a complete telescope ready to use.
This is the biggest Dobsonian of Skywatcher and of course the biggest transportable dobsonian in our opinion. It´s possible to carry and assemble this telescope with one person only. At the nightsky 16" offers you new dimensions. Nebulae and galaxies show uncountable details.
The adjustment of the SKFXD16 is very easy. The horizontal and vertical adjustment happens through bush bearings. At every position the optics stay at their place. You only have to move the telescope, leave it and you are able to observe. The adjustment of the altitude friction took place through a so called "Tension Control". So you are able to adjust the clearance of the adjustment of altitude and also to lock the telescope.
Characteristics:
- Newtonian system 406/1800mm, f/4.4
- Retractable tube, minimum length 1071mm

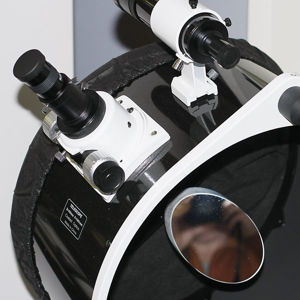

- 2" Crayford focuser - 1:10 micro - reduction, adapter from 2" to 1¼"
- Tube weight appr. 38kgs
Delivery:
- 16" Telescope tube with FlexTube system
- 2" 1:10 Crayford focuser w/ adapters to 1¼" and T2
- 9 x 50 Viewfinder
- 2 Eyepieces 10mm & 25mm 1¼"
- Packaging
Products specifications
Type of telescope
|
Newtonian (Dobsonian) |
Color
|
white / black |
Connection to eyepiece
|
2" , 1 1/4" with adapter |
Tube material
|
Steel |
Eyepiece adapter
|
to 1 1/4" |
Type of mount
|
Dobsonian mount |
Aperture
|
405 mm |
Focal ratio
|
F/4.4 |
Focal length
|
1800 mm |
Resolution
|
0,28" |
Limit value
|
14.8 mag |
Max. useful visual power
|
810 x |
Viewfinder
|
9 x 50 Viewfinder with holder |
Tube diameter
|
540 mm |
Tube weight
|
83.7 lb |
Eyepieces
|
Super Plössl 10 mm and 25 mm |
Focuser
|
2" Crayford focuser with 1:10 microfocusing |
Weight of Rockerbox
|
37.4 lb |
