Skywatcher - AZ-EQ6GT Mount - alt-azimuth and equatorial

Skywatcher - AZ-EQ6GT Mount - alt-azimuth and equatorial

The totally new versatile Skywatcher AZ-EQ6GT Mount - for alt-azimuth and equatorial use.
  • Payload Capacity: 25kg (EQ and AZ modes)
  • Go-To Capability: EQ and AZ modes
  • Synscan Handset Database: over 42,900 celestial objects
  • PEC control in EQ mode
  • Autoguider Port : Yes
  • DSLR Electronic Shutter Release Port : Yes
  • Motor Type: DC12V stepper motors
  • Patented Dual-Encoder design allows manual movement without losing positional information
    Polar alignment: via software control or supplied polar scope
  • Alignment methods: 1, 2 or 3 star alignment (EQ) / brightest star or 2 star alignment (AZ)
    Telescope Connection: 2 x dual-fit saddle plates supplied accepting 45mm & 75mm dovetail bars
Manufacturer : Skywatcher
SKU : SKY-20291
Price: 2204.00 € incl tax 19% (Germany)
2449.00 €
Estimated delivery time : 1-4 days
Product description
Skywatcher AZ-EQ6GT Mount - alt-azimuth and equatorial

The Skywatcher AZ-EQ6GT ... a new legend is born !!

The Skywatcher AZ-EQ6GT is an exciting evolutionary development of the hugely successful NEQ6 PRO. The AZ-EQ6GT is a dual purpose, fully functional computerized heavy-duty GoTo / Tracking astronomical mount in both Alt-Azimuth (AZ) and Equatorial (EQ) modes.

Supplied with a Synscan handset with dual AZ/EQ firmware, it can automatically find and track over 42,900 celestial objects from its database.

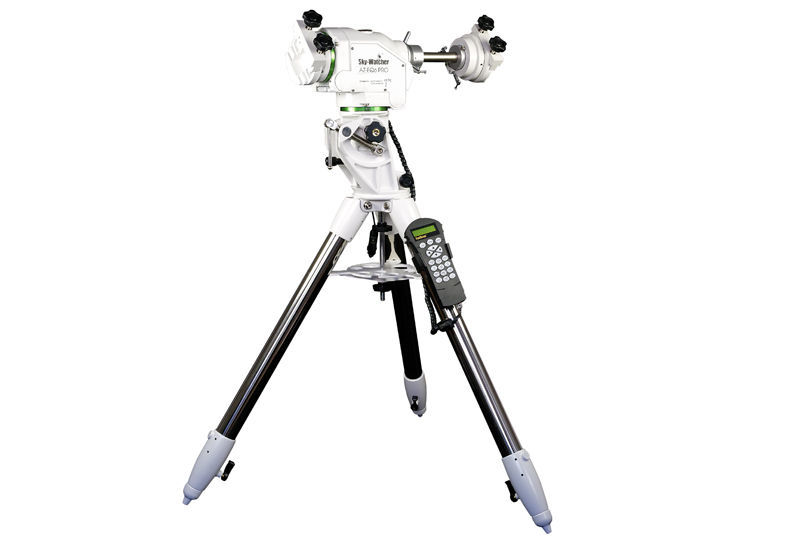

In EQ mode, the AZ-EQ6GT is designed for either visual use or precise astro-imaging. In AZ mode, it is primarily intended for visual use, and in this mode, two telescopes can be mounted simultaneously in parallel.

A great feature of the AZ-EQ6GT is the patented dual-encoder technology. This allows to be moved manually in either axis without the mount losing its positional information. This gives the user enormous freedom, convenience and flexibility during observational sessions.

Delivery contents
  • Mount
  • Stainless Steel Tripod
  • 2 x 11 lb Counterweight
  • Controller
Products specifications
Tripod Stainless steel tripod with 2" legs
Telescope attachment Quick Release (Vixen Level)
Power Supply 12 V
Counterweights 2 x 11 lb
Motors Stepper Motors
Payload max. (depending on using and demand) 20 KG
Type of mount combined azimuthal and equatorial GoTo mount
Material Aluminum, Stainless Steel, Plastic
Motor control SynScan GoTo
Screen Backlit LCD Screen, two line 16 character display
Color Silver - White
PEC in EQ Mode
Connections 12 V, DSLR Shutter release, Autoguider, Handbox
Weight equatorial head 33.9 lb
Polarscope inclusive
Diameter of Gear / Number of Tooth 92.5 mm / 180 Teeth
Material wormwheel Brass
Counterweightbar 25 mm
Weight of tripod 16.5 lb
Weight over all ca. 88 lb Total Weight
pack size 2 packages: 118x28x29cm, 21 Kg / 53x52x32 cm, 20 Kg
