Would you like to change your focuser because it is not sturdy enough and lacks precision? Do you want to improve the internal focusing of your SCT telescope? Or do you simply want to build or have built a perfect telescope with an optimal eyepiece extension?

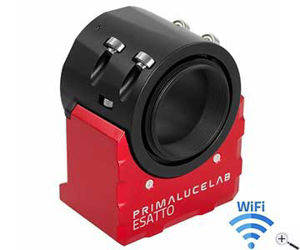

ESATTO is the next generation robotic focuser for telescopes, specifically designed for astrophotography, but, thanks to specific technologies developed by PrimaLuceLab, also works extremely well for visual use. Forget about external controllers and cumbersome hand pads. ESATTO is the ALL-IN-ONE focuser that has all the features you´ve dreamed of in a compact, sturdy focuser design.

The best focusing mechanics and electronics in a compact body.

The new ESATTO robotic microfocuser was born from many years of experience in astrophotography and engineered with the uncompromising quality of PrimaLuceLab. Primaluce wanted to create the best motorized focuser in the world, with the latest technical features, resulting in a compact and beautiful design that would fit on any telescope.

Designed to give your telescopes the best performance in astrophotography.

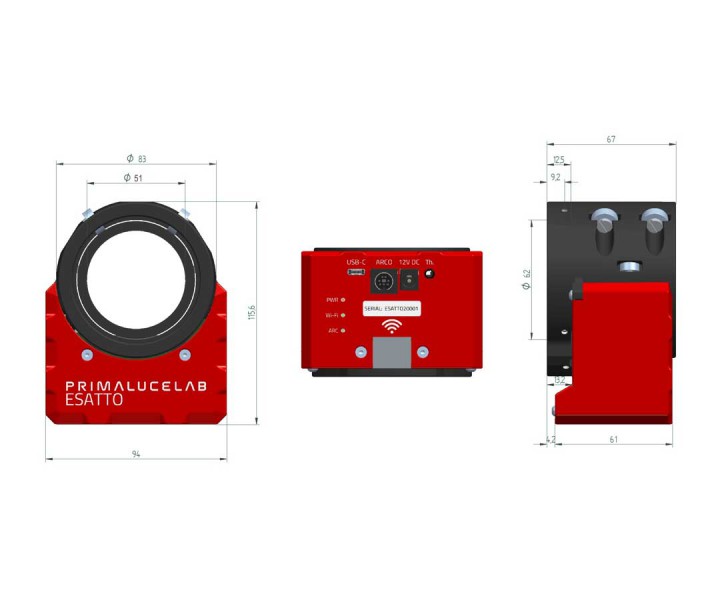

The special Crayford design with 18 ball bearings allows ESATTO 2" to have an impressive payload capacity of 5 kg (11 lb) with the focusing smoothness that is required by modern astrophotography techniques (like autofocus with V-curve). The ESATTO 2" has a drawtube with 51 mm clear aperture and 15 mm travel, offering an incredible read resolution of 0.04 micron per step!

Many adapters available for connect many telescopes

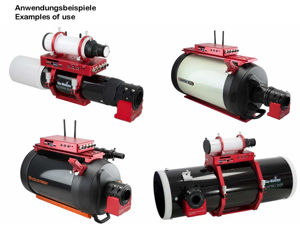

You don´t need to worry about how to connect ESATTO to your telescope. You can choose among the many models and adapters available! You can easily connect ESATTO 2" to telescopes like Schmidt-Cassegrains, Aplanatic Schmidt-Cassegrains, refractors, Cassegrains, Newtonians, and more! ESATTO truly is the universal focuser and if you can´t find an adapter for your telescope, just contact us!

Simple remote control

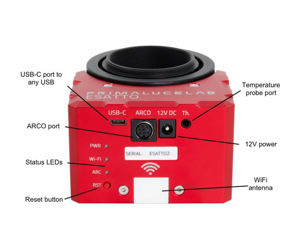

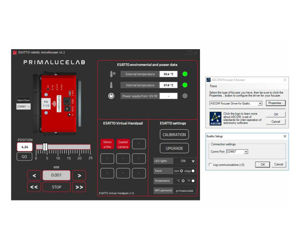

The ESATTO has been specifically designed for easy remote operation via a USB-C port of the EAGLE or from any Windows computer with a standard USB port. This allows your telescope to take advantage of all the latest technology in astrophotography. ESATTO comes with a sturdy USB-C port (which you can connect to any USB type port thanks to the cable included in the box) to connect to EAGLE or any Windows computer, and control it via the provided ESATTO software or ASCOM driver. When connected to one of the USB 3.0 ports on the EAGLE (or any USB port of Windows computers capabley of at least 1 A), the ESATTO can be operated and controlled via only one cable!

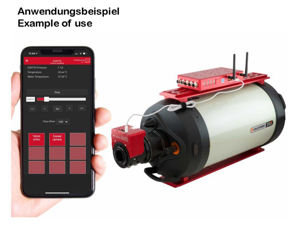

ESATTO has built-in WiFi remote control capability so you can control it from any smartphone, tablet or computer! Just connect your device to the WiFi network of ESATTO and start the app - you will be able to control the focuser by using the dedicated ESATTO Virtual HandPad app. Thanks to the convenient preset settings, you can easily record and move the focuser to specific predeterminated positions - great for visual use! WiFi control works even if ESATTO is also connected to a computer so you can control it simultaneously from 2 devices.

Focuser draw tube with M56x1 thread and stop ring for a perfect camera connection

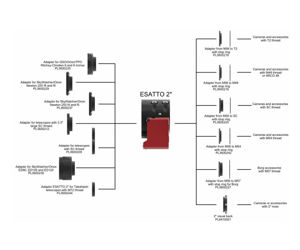

We know that a perfect focuser is nothing without a solid connection to the camera.That´s why, instead of using a normal 2" visual back, ESATTO 2" offers and M56x0.75 male thread (to let you attach SkyWatcher/Orion reducers for ED 80, 100 and 120 refractors) and, through a complete series of optional camera adapters with stop ring, it allows you to directly connect the most common DSLR, mirrorless and CCD or CMOS cooled cameras directly to the focuser.

The stop ring allows you to lock the camera at a precise angle to better frame the object to be photographed. The stop ring adapters are available in many different sizes: this way you can connect, with maximum rigidity and comfort, any camera or accessory.

Scope of Delivery:

• Focuser
• USB Cable
