The ADC Mark II corrects the dispersive effects of earth´s atmosphere. You will get sharper images of planets and moon.

Manufacturer : Pierro Astro

SKU : APi-ADC MK3

Price: 395.00 € incl tax 19% (Germany)

Estimated delivery time : 2-5 months

Product description

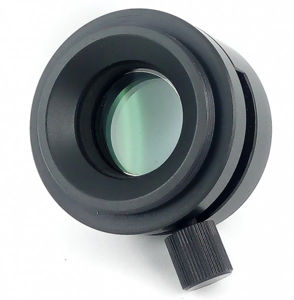

Pierro Astro ADC MK3 atmospheric dispersion corrector

The ADC Mark II corrects the dispersive effects of earth´s atmosphere. You will get sharper images of planets and moon.

An Atmosperic Dispersion Corrector or ADC, is a clever little device which corrects the disperse effects of the earth´s atmosphere on light rays. Put simply, when you view a bright object such as a planet with a telescope, you will often see colour fringing. So a large object like Jupiter may have a red and blue fringe in addition to being distorted. This is caused by the effect the earths atmosphere has on the light from the object as it passes through it. The atmosphere is basically acting like a prism. This effect changes depending on how high the object is above the horizon. The lower it is the greater the effect. Because in northern Europe bright objects like planets are never that high, so we suffer from the effect more.

An ADC corrects this dispersion effect, allowing you to see and image objects free of these distortions and aberrations. No more waiting for an object to get high enough in the sky for it to offer an acceptable view. Now you can view it anytime with crystal clear quality.

How does the Pierro Astro ADC work?

As we mentioned, when light from the planets or stars passes through the earth´s atmosphere, it is "refracted", (deflected at an angle which is dependent on its wavelength). This effect, similar to a prism, causes a significant colour shift known as chromatic aberration. This is very detrimental to both viewing and imaging these objects.

The ADC, or atmospheric dispersion corrector, is an opto-mechanical accessory which corrects this by using the chromatic superposition of two counter rotating prisms. Its simplified operation is described by the small diagramm above.

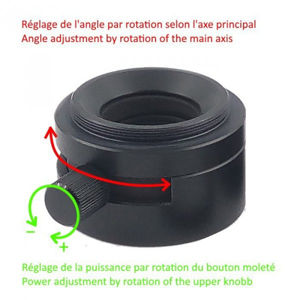

The levers on the ADC move the counter rotating prisms and adjust the compensation from nothing to a maximum effect when the levers are 180 degrees apart.

Different wavelengths are affected more by the dispersion effect than others. The ADC makes it easy to compensate for the effect simply by adjusting the levers.

Imaging

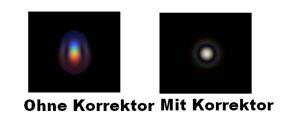

When colour imaging a planet without an ADC, you will end up with colour fringing and distortion. Even if the appearance of this fringing and distortion is removed in processing, it has led to a loss of resolution in the image which cannot be recovered. When mono imaging, the taking of individual red, green and blue images and overlaying them helps to compensate somewhat for the image shift. However to maximise resolution of the image a luminance image should be taken. This will suffer from the same issues as a normal full colour image. The improvement to this can be seen in the pictures above.

By using an ADC the distortions and image shift problems are eliminated resulting in a massively more detailed image. When processed further, this results in a final image which is dramatically improved.

A special feature is the use of fused silica for the prisms. As this material transmitts ultraviolet radiation, it is possible to take UV images of, for example, the Venus and get more details.

The new ADC Mark II offers:

new high performance AR coating all surfaces
2,5° angle deviation instead of 2° on old one
10° angular grating is included now as standard

still included:

Aluminium high quality male and female T2 threaded caps :-)
levers made of stainless steel and soft CNC plastic tightening knurls
knurled body for easier use
high level of axial accuracy with perfect threads alignment
high level of aluminium flat black anodizing
PETP prism tignteners for no optical stress
optics surfaces better or equal to L/10 all surfaces and fused silica substrate

Important hint for operation:

For the correct effect, the corrector has to be properly aligned to the horizon. Usually, this is the case if both levers from the corrector are stacked parallel to the horizon as seen in the focuser.

Turning the levers by the same value, but in opposite directions, will rotate the prims so that their effects do not cancel each other out. If the image deteriorates, both levers have to be turned to the opposite direction.

Please take into account that the direction of the horizon changes during the hours when using an equatorial mounted telescope. Of course, this has to be taken into account.

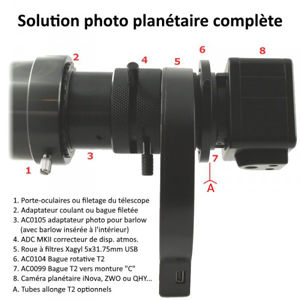

Delivered with:

ADC-MK3 with with knurled knob and rotating ring
2 caps T2 male / female black anodized aluminum
1 adapter ring T2 / M48 included in the base of the ADC and unscrewable.

Products specifications

Connection to camera	T2 thread
Housing material	Aluminium
Unobstructed diameter	24 mm
Connection to telescope	T2 internal thread
Glastype prism	Quarz
Optical accuracy	1/10 PTV

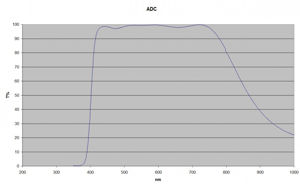

Coating	UV: FMC all surfaces, RN reflection. 0.5% between 300nm and 700nm / surface. Compatible color or UV photography
Length	25mm
