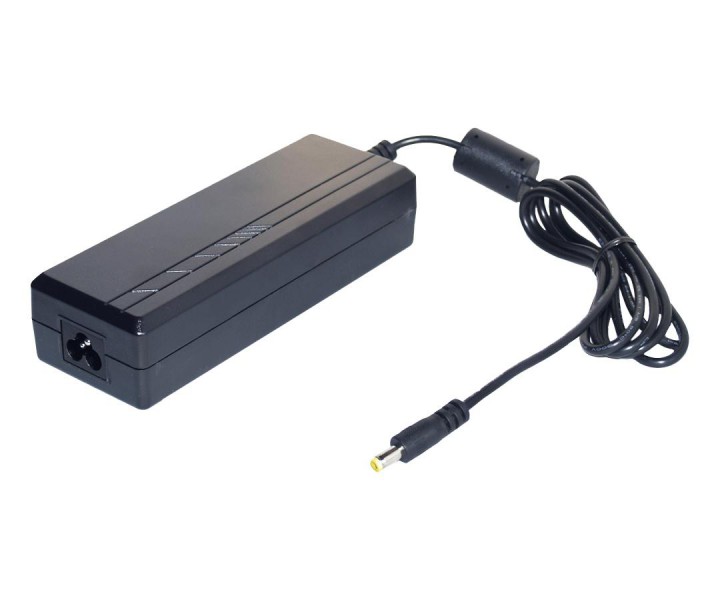

PegasusAstro Power Supply Unit 12 V / 10 A, 2.5 mm plug, UK cord

This sealed and certified switching power supply unit is the perfect match for Pegasus astro products. It can provide 12 V and up to 10 A (120 W of total power). Low ripple and noise ensures that you will provide the required and correct "electric juice" to your precious equipment. Comes together with a power cord (1.8 m) for your country type.

Please notice there are three (3) types of DC cords (supplied type bold, choose wisely!):

• 2.1 mm (for Pocket Powerbox and any other Pegasus products, length 1.5 m)
• 2.5 mm (for Ultimate Powerbox / DewMaster)
• XT60 (for Ultimate Powerbox v2)



Please notice there are three (3) types of power cords (supplied type bold):

• Europe (plug type E/F)
• UK (plug type G)
• USA (plug type B)



Protections

• Overcurrent/ short circuit protection: The power supply will self-protect any output to ground & auto recovery when abnormal circuit faults are removed. An output short circuit is defined as any output impedance less than 0.1 ohms.
• Overvoltage: The power supply will be auto recovered when faults are removed
• Input protection: F1 6.3 A 250 V fuse. The power supply shall be protected against power line surges and any abnormal condition
• No-load protection The power supply is provided with no-load operation to prevent the power supply and system from damage.
• Protection class I, (ITU-T K.21 Surge 6 kV on request)

• Power Supply Unit

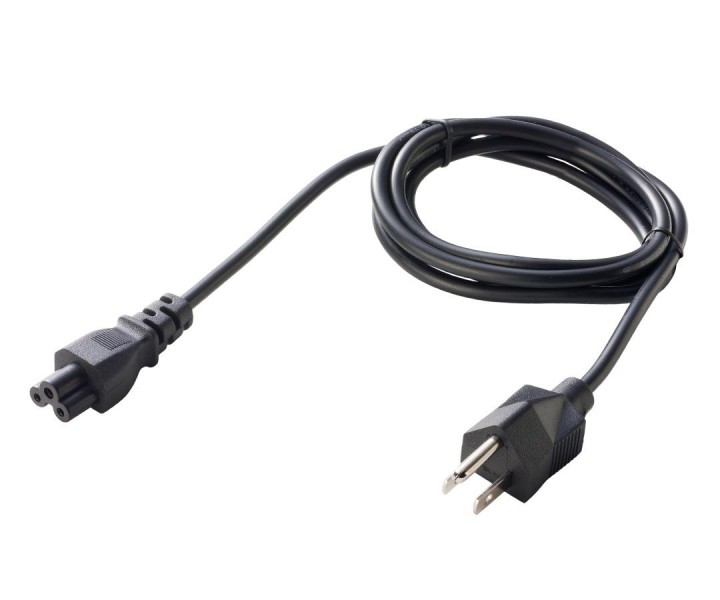

• Power Cord
