PegasusAstro Power Supply Unit 12 V / 10 A, 2.1 mm plug, EU cord
This sealed and certified switching power supply unit is the perfect match for Pegasus astro products. It can provide 12 V and up to 10 A (120 W of total power). Low ripple and noise ensures that you will provide the required and correct "electric juice" to your precious equipment. Comes together with a power cord (1.8 m) for your country type.

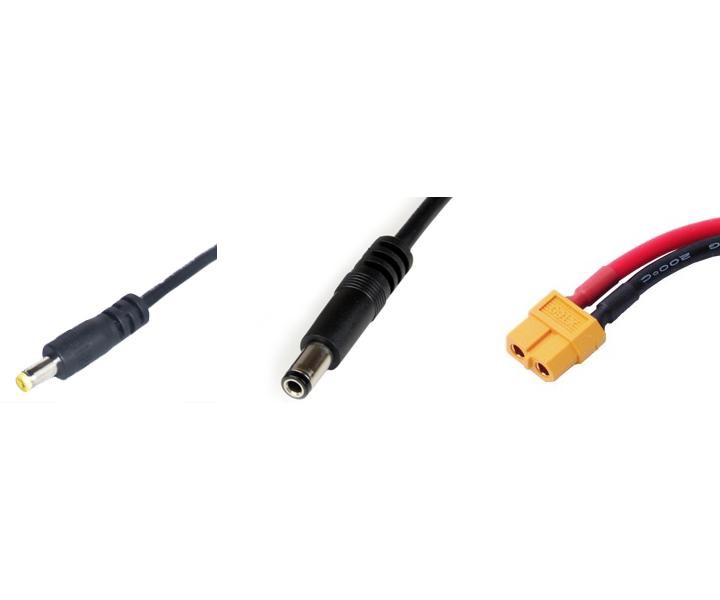

Please notice there are three (3) types of DC cords (supplied type bold, choose wisely!):
- 2.1 mm (for Pocket Powerbox and any other Pegasus products, length 1.5 m)
- 2.5 mm (for Ultimate Powerbox / DewMaster)
- XT60 (for Ultimate Powerbox v2)
Please notice there are three (3) types of power cords (supplied type bold):
- Europe (plug type E/F)
- UK (plug type G)
- USA (plug type B)
Protections
- Overcurrent/ short circuit protection: The power supply will self-protect any output to ground & auto recovery when abnormal circuit faults are removed. An output short circuit is defined as any output impedance less than 0.1 ohms.
- Overvoltage: The power supply will be auto recovered when faults are removed
- Input protection: F1 6.3 A 250 V fuse. The power supply shall be protected against power line surges and any abnormal condition
- No-load protection The power supply is provided with no-load operation to prevent the power supply and system from damage.
- Protection class I, (ITU-T K.21 Surge 6 kV on request)
Scope of Delivery:
- Power Supply Unit
- Power Cord
Products specifications
output voltage
|
12 V |
output current, power
|
10A |
Power Supply
|
90V-264V |
Abmessungen
|
169 mm x 61 mm x 39 mm |
Length of cable
|
1.5m |
Connections
|
Connector Output 5.5/2.5mm |
