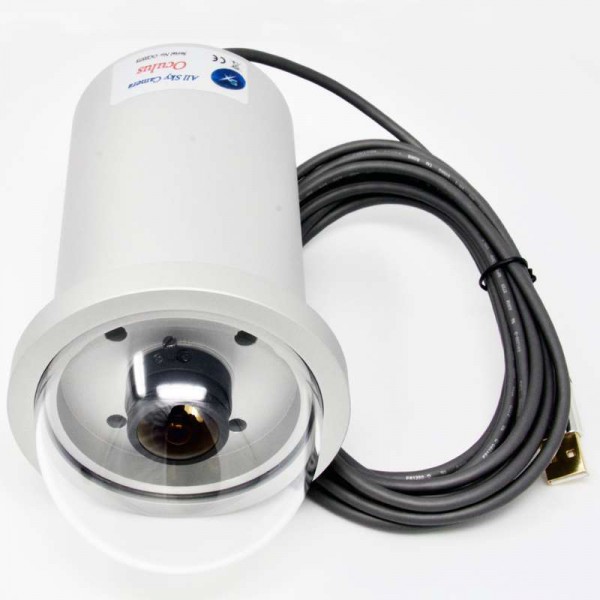

The Oculus all-sky camera is designed to provide high quality sky images for weather and meteor observations. The camera core is based on the 1.4 megapixel SuperStar’ and it employs a 2.5mm FL f1.2 Fish-Eye’ lens or 1.55m f/2 to achieve 150 degrees or 180 degrees coverage. A 1.55mm f/2 180 degree Fish-Eye’ lens is also available as an optional extra giving horizon to horizon coverage.
Spcification:
- CCD type: ICX267AL Sony SuperHAD interline CCD with low dark current and vertical anti-blooming.
- CCD Full resolution pixel data: Pixel size: 4.65uM x 4.65uM, Image format: 1392 x 1040 pixels
- CCD Image area: 6.4mm (Horizontal) x 4.75mm (Vertical).
- CCD quality: Grade 1
- Spectral Response: QE max at 520nM (~50%), 30% at 420nM and 670nM.
- Readout Noise: Less than 10 electrons RMS – typically only 7 electrons.
- Full-well capacity: Greater than 15,000 e- (unbinned)
- Anti-blooming: Overload margin greater than 1000x.
- Dark current: Less than 0.1 electrons/second @ + 10C ambient.
- Data format: 16 bits.
- System gain: 0.3 electrons per ADU
- Lens details: 2.5mm f/1.2 or 1.55mm f/2 by 150 or 180 degree Fish Eye’
- Computer Interface: Built-in USB 2.0 compatible interface.
- Image download time: Typically 0.6 seconds at full resolution using USB 2.0.
- Power requirements: Camera is USB powered, dew heater requires 12v at 1 amp max.

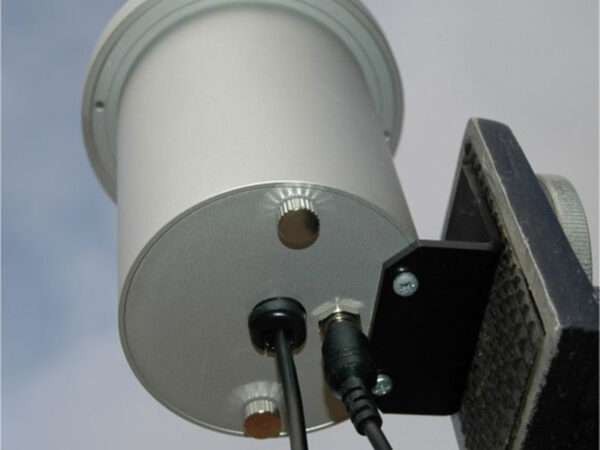

- Input connection: Mini B’ USB socket for USB2.0 and a 2.1mm jack for +12v heater supply.
- Cooling system: Ambient air cooling.

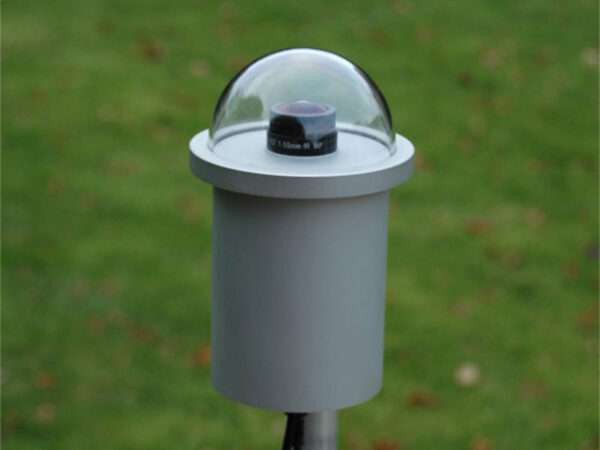

- Viewing dome: High quality polycarbonate hemisphere (replaceable)
- Overall size: 150mm tall x 95mm diameter
Scope of Delivery:
Products specifications
| Connections | USB2 |
| Pixel size | 4.65mµ |
| Horizonal Resolution | 1392 Pixel |
| Vertical Resolution | 1040 Pixel |
| Pixel | 1447680 Pixel |
| Bitrate | 16 Bit |
| Sensor Grade | 1 |
| Power | USB |
| Sensor type | Sony ICX267AL |
| Sensor size | 6.4mm (Horizontal) x 4.75mm (Vertical) |
| Coverglas | High quality polycarbonate Dome (austauschbar) |
| Power Supply | 12V (Dew heater) |
| Dimension | 150mm tall x 95mm diameter |
