Nivellieradapter

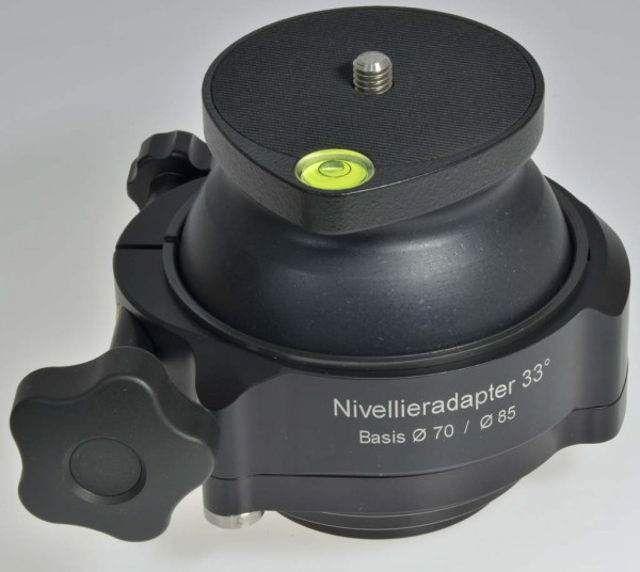

- Angels of tilt up to 33° - Ball diameter 100 mm - Camera support plate dia. 75 mm - screw 3/8" - height 110 mm - Adjustable friction - Fits 85 mm and 70 mm diam. bowl sizes and 3/8" screw

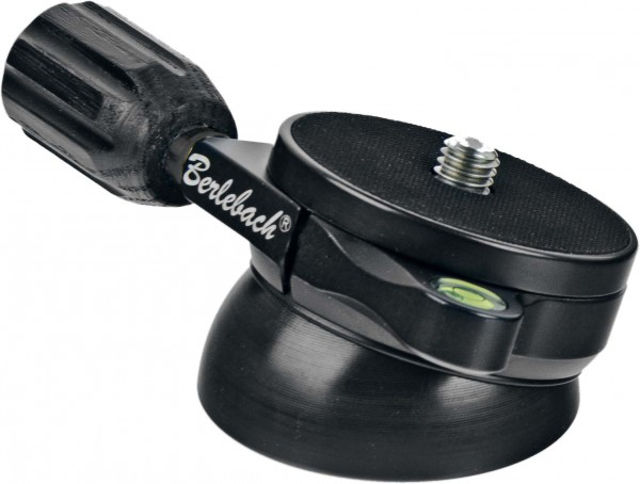

Neigung 20° Höhe: 39 mm Auflagefläche: 55 mm Befestigungsschraube 3/8" belastbar bis 10 kg Drehmoment: 10 Nm Maße ohne Griff: 62 x 72 x 41 mm Maße mit Griff: 71 x 109 x 41 mm

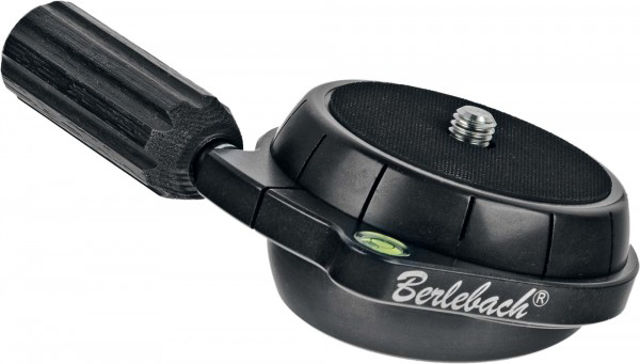

levelling angle: 15° height: 39 mm / 1.4" supporting are Ø: 62 mm / 2.44" fastening screw: 3/8" max. load: 15 kg / 33 lbs torgue: 20 Nm / 14.75 ldf/ft size without handle: 95 x 90 x 36 mm / size with handle: 100 x 134 x 36 mm Our levelling plate N 75 is suitable for all tripods with no possibility for direct adjustment of a 2- or 3-way tilt head. Thanks to its high load capacity and a max. torque of 20 Nm, it is also suitable for large gimbal tilt heads. The fastening handle can be rotated freely. Consequently, it can always be mounted in such a way that it does not jut into the picture. This levelling plate is the ideal solution for all those who particularly appreciate small and light equipment which is extremely stable at the same time. In many cases, the camera can be directly fastened on the plate using a quick connector, what makes the use of large tilt heads unnecessary.

Our levelling plate N90 is suitable for all tripods that do not offer any possibility to align a 2-way or 3-way tilt head directly. Thanks to the high load-bearing capacity of the levelling plated N90 of 20 kg and a maximum torque of 40 Nm they are also suitable for big Gimbal tilt heads. Inclination: 15° Diameter: 77 mm Height: 55 mm Load capacity: 20 kg Thread: 3/8"
