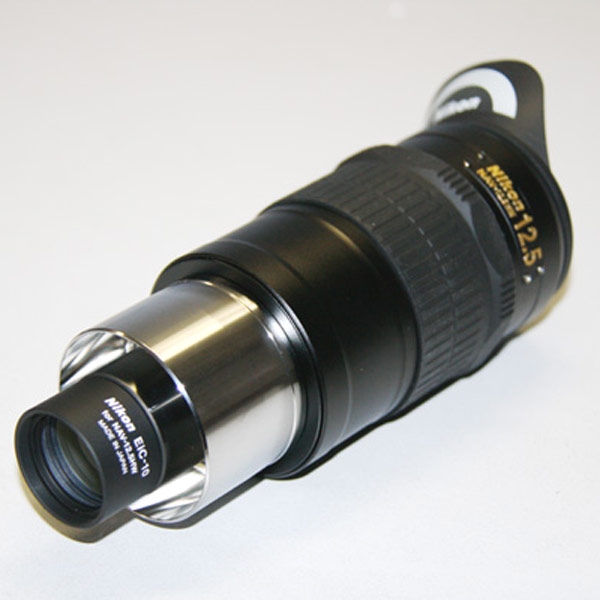

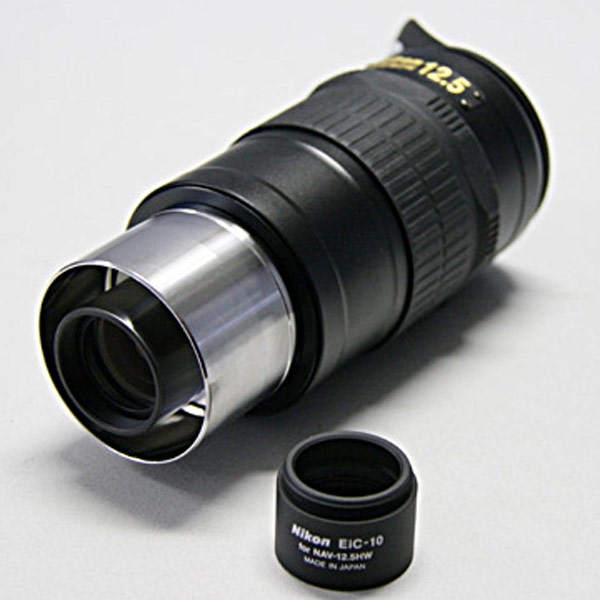

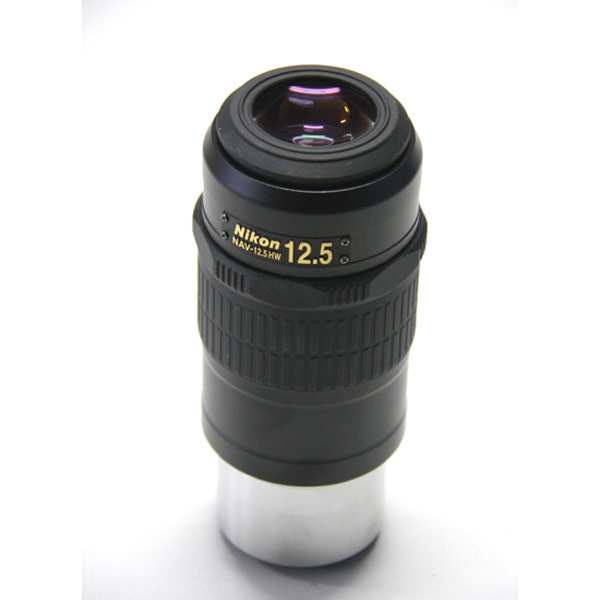

Nikon NAV HW 12.5 mm eyepiece with corrector EiC-10Riding the wave of their international success with the NAV-SW series eyepieces, Nikon now offers the new hyper wide 102 degree FOV NAV-HW eyepieces. This series consists of two focal lengths, the 12.5 mm NAV-12.5HW and the 17 mm NAV-17HW. Each eyepiece also includes the unique benefit of an "EiC" tele-extender lens, specifically designed for each eyepiece, that shortens the focal length to 10 mm. Which means you are actually getting two eyepieces for the price of one.
The NAV-12.5HW is a 1.25" eyepiece that includes a 2" screw on barrel. All surfaces are multicoated with world class Nikon coatings and the mechanical and cosmetic finish is, well, perfect, as you would expect with any Nikon product.
Delivery contains:- Eyepiece
- Dustcaps
- 2 Eyeguards
- EiC extender
- 2" Screw on barrel
- Packaging
Products specifications
| Eye relief | 16 mm |
| Coating | Fully multicoated |
| Eyegard | Silicon adjustable and unscrewable |
| Type of eyepiece | Hyper Wide Eyepiece |
| Focal length | 12.5 mm (with EiC-10 10 mm) |
| Field of view | 102° |
| Lenses / groups | 10 / 7 (plus 2 Corrector EiC-10) |
| Barrel size / Filter thread | 1 1/4" (with barrel 2") |
| Diameter | 64 mm |
| Height | 151 mm (with EiC-10 170 mm) |
| Weight | 23.5 oz (EiC 0.7 oz) |
