Newtonian Telescopes

The eVscope 2 combines power and speed with expert optical knowledge to deliver the most immersive experience in space exploration.

Leveraging Nikon's pioneering expertise in electronic eyepieces, the eVscope 2 offers the most stunning visual experience ever seen in a consumer telescope, with enhanced image resolution of 7.7 MPx, state-of-the-art observing comfort and amazing detail, sharpness and zoom capability.

• Quick to set up and ready to go
• Track real-time observations directly on the display
• Manual calibration not necessary

• Nikon eyepiece technology

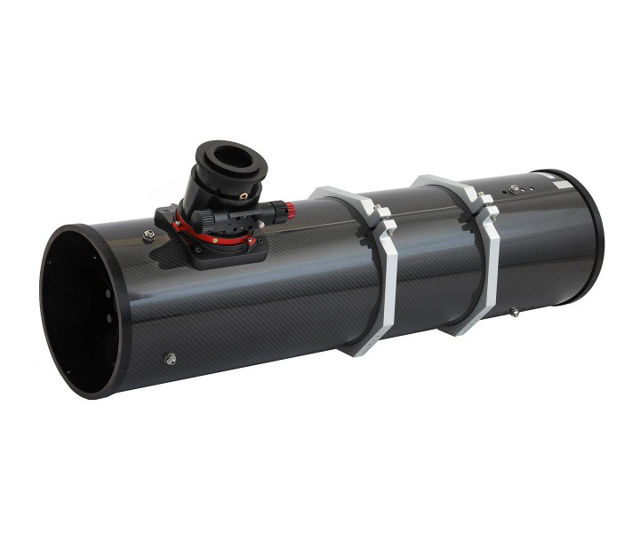

• Aperture 254 mm
• Effective focal length 863 mm
• Focal ratio f/3.4
• Full correction up to 44 mm diameter with good illumination
• Carbon tube for good focus and mechanical stability
• 3" dual-speed RAP focuser with integrated corrector
• Working distance 55 mm from M48x0.75 thread with integrated connection for 2" filter
• Additional threads M54x0.75 and M68x1 available for individual adaptations
• Each TS Hypergraph254 is tested and optimized on our optical bench before storage
• Made in Germany!

The eVscope 2 combines power and speed with expert optical knowledge to deliver the most immersive experience in space exploration.

Leveraging Nikon's pioneering expertise in electronic eyepieces, the eVscope 2 offers the most stunning visual experience ever seen in a consumer telescope, with enhanced image resolution of 7.7 MPx, state-of-the-art observing comfort and amazing detail, sharpness and zoom capability.

• Quick to set up and ready to go
• Track real-time observations directly on the display
• Manual calibration not necessary

• Nikon eyepiece technology

• Aperture 203 mm
• Effective focal length 690 mm
• Focal ratio f/3.4
• Full correction up to 44 mm diameter with good illumination
• Carbon tube for good focus and mechanical stability
• 3" dual-speed RAP focuser with integrated corrector
• Working distance 55 mm from M48x0.75 thread with integrated connection for 2" filter
• Additional threads M54x0.75 and M68x1 available for individual adaptations
• Each TS Hypergraph203 is tested and optimized on our optical bench before storage
• Made in Germany!

Stunning astrophotos and extreme depth at a moderate time effort - this is what the PowerNewtonians from Teleskop Service stand for.

• Short exposure times at f/2.8 - perfect for DSLR cameras without cooling
•  Moderate exposure times when using narrowband filters
•  Very good field correction thanks to the ASA corrector/reducer
•  High mechanical stability due to the carbon tube
•  Total length of only 1100 mm, weight of 18 kg - can also be carried by affordable mounts
•  Back Focus 65 mm starting from the T2-thread - also suitable for OAG
•  Fully illuminated and corrected field for APS-C format sensors
•  The first image at left shows the very similar 10" model.
•  Made in Germany

The eQuinox 2 is an innovative smart telescope that brings the wonders of space within reach, even in urban areas, with its permanent illumination.

Thanks to our technology, you don't need expertise in complex instruments, but effortlessly access the wonders of the universe with our user-friendly procedures.

View galaxies, nebulae and planets in their full colour glory - even in densely populated urban areas. Just click and be amazed: it takes just two minutes to get your telescope ready for space viewing - no matter where you are.

• Optical features: 114mm reflector telescope with 450mm focal length
• Smart Light Pollution Reduction: Enables observations even in "light polluted" skies
• Enhanced Version: Real-time colour display of astronomical objects
• Control: Via smartphone or tablet
• Integrated object database

Hyperbolic flat-field astrograph from Sharpstar with 130 mm aperture and fast f/2.8 focal ratio

• Aperture 130 mm / focal length 364 mm / focal ratio f/2.8
• Optimally suited for mobile astrophotography with modern, high-resolution digital cameras
• Ideal for cameras up to APS-C and with Flat even up to full-frame sensors
• Hyperbolic primary mirror with 130 mm diameter
• 2-element corrector with one ED element
• Modern dual-speed 2.5" rack and pinion focuser
• Working distance from M48x0.75 camera thread is 55 mm - Working distance from M54x1 female thread is 57.2 mm
• 2" filter thread for connecting fog filters is included in the reduction adapter to M48
• Carbon tube for optimal hold of focus position - provides better focus stability than a metal tube
• Stable metal secondary mount with adjustment screws
• Primary mirror collimation with tension and compression screws
• Included in delivery are a carrying case, CNC tube rings and an EQ5-style dovetail bar
• Each Hypergraph is checked, cleaned and adjusted at APM.

Newtonian telescope with 6" aperture and 600 mm focal length individually made for you in Germany with high quality carbon tube - an ideal travel telescope and for astrophotography

• Aperture 150 mm / focal length 600 mm / focal ratio 1:4
• Three focus positions built in - simply by moving the main mirror, thus all correctors, also focal reducers, can be used
• Stable, 4 mm thick carbon tube for maximum rigidity and adjustment stability
• TS UNCN2-G2 ball bearing RAP focuser with screw possibility for photo adaptations - optimal for photography and observation - of course motorizable
• Valuable lightweight rings and tube end pieces - individually manufactured for this telescope.
• TS "Black" anti-reflective paint provides a dark tube and prevents annoying reflections
  Selected quality optics for best imaging
• 94% reflection on primary mirror and secondary mirror for a brighter, high contrast image
• Stable collimatable primary mirror mount, specially made for this telescope
• Each ONTC Newtonian is tested on the optical bench of Teleskop-Service before shipment - delivery with production protocol
• The tube rings and the end pieces are also manufactured in black on request.
• Made in Germany

The PHOTON Newtonian reflector with 150 mm aperture and an f-ratio of f/5 is well suited for observation and astrophotography and an ideal beginner´s telescope.

• Aperture 150 mm / Focal length 750 mm / F-ratio F5
• High-quality parabolic primary mirror with 94% reflection coating for a brighter image.
• Large secondary mirror with 63 mm diameter for a well illuminated image field for astrophotography
• Precise 2" Crayford focuser for accurate focusing and micro transmission - motorfocus optional.
• Carbon tube for more stability with better portability at the same time - Made in Germany!
• Adjustable primary and secondary mirror holder made of metal, convenient collimation marking on primary mirror
• Focus position optimized for observation with all customary eyepieces and for astrophotography with coma correctors
• Due to its short build the Newtonian is suitable for smaller mounts (Skywatcher EQ3 upwards)
• Central mark on the primary mirror for easy collimation
• Generous equipment: 6x30 finder scope, ring clamps, dovetail included

Der PHOTON Newton Reflektor mit 150 mm Öffnung und dem Öffnungsverhältnis f/6 ist für die Beobachtung und Planetenfotografie optimiert - ein ideales Einsteigerteleskop

• Öffnung 150 mm / Brennweite 900 mm / Öffnungsverhältnis F6
• Hochwertiger parabolischer Hauptspiegel mit 94 % Verspiegelung für ein helleres Bild.
• Großer Fangspiegel mit 45 mm Durchmesser - wenig Abschattung für scharfe Mond- und Planetenbeobachtungen
• Präziser 2" Crayford Okularauszug für genaues Scharfstellen - Motorfokus ist optional erhältlich.
• Carbon Tubus für mehr Stabilität bei gleichzeitig besserem Transport - Made in Germany!
• Justierbare Haupt- und Fangspiegelhalterung aus Metall, praktische Justierhilfe am Hauptspiegel.
• Fokusposition ist für die Beobachtung optimiert, Sie werden mit allen Okularen problemlos scharfstellen können.
• Das Teleskop wird von kleineren Montierungen wie der EQ3 oder EQ5 von Skywatcher noch gut getragen
• Zentralmarkierung am Hauptspiegel für problemlose Justage vorhanden
• Umfangreicher Lieferumfang: 6x30 Sucher, Rohrschellen, Prismenschiene

• The inexpensive complete offer for all astrophotographers - ideal for beginners in astrophotography.
• Aperture 150 mm / focal length 750 mm / focal ratio f/5
• High quality parabolic primary mirror with 94 % forced reflection
• Large secondary mirror with 63 mm diameter for a very good illumination of the sensor. No dark corners
• TS-Optics 2" 0.95x Maxfield coma corrector with 3-element design for crisp stars to the edge, even with full-frame cameras
• Precise 2" Crayford focuser with 1:10 micro reduction for accurate focusing
• Sturdy steel tube instead of soft aluminum tube for very good adjustment stability
