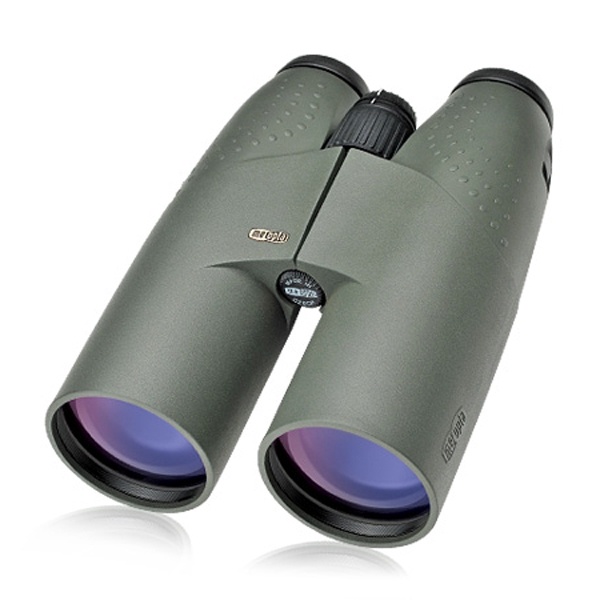

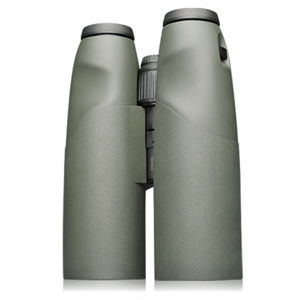

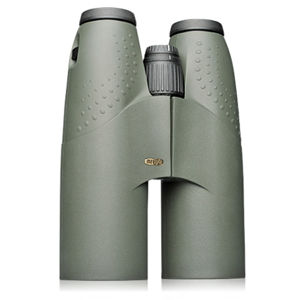

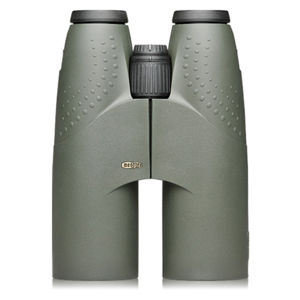

Meopta Binocular MeoStar B1 56 mm with 8 x Magnification
When dawn to dusk are not enough.
Thousands of users across the world can attest to the premium low-light performance of our MeoStar B1 8x56 binocular. Precision optics in a well-balanced, ergonomical designed aluminium-alloy chassis make this binocular not only one of the top performers on the market today, but also comfortable to use for extended observation sessions. The large 56 mm objective lenses are fully multi-coated with MeoBright 5501 Ion Assited lens coatings, providing crystal clear resolution and industry leading light gathering under adverse conditions.
8 x 56 - For precise observation of medium-range images under severe lighting conditions.
Features- MeoBright 5501
- A proprietary ion-assisted lens multi-coating applied to all
air-to-glass optical surfaces. Developed by Meopta, MeoBright 5501
ion-assisted multi-coatings eliminate glare and reflections and delivers
an idustry leading 99.8 % light transmission per lens surface.
- MeoShield - MeoShield ion-assisted coating protects external lens surfaces and delivers enhanced resistance to scratching or abrasion in extrem conditions. MeoShield meets military specifications for durability and surface hardness.
- Lens Components - Individual lens components are meticulously ground and polished in-house and precisely machined for superior performance.
- Waterproof - All binoculars are 100 % guaranteed waterproof, submersible and are fully protected against humidity, rain and snow.
- Fogproof - All binoculars are purged and sealed with inert Nitrogen gas to provide 100 % guaranteed fogproof performance.
- Prism System - Precisely ground and finished Schmidt-Pechan prism system is polished to within +/- 1 second and allows hours of extended glassing without eye strain.
- Focus and Diopter Control
- Oversized central focus wheel delivers precise, accurate focus
acquisition. Central diopter control is easy to adjust and accommodates
+/- 3 diopters.
- Protective Armor Design - Protective rubber armor is softer in strategic locations to help reduce hand fatigue and improve grip. Sculpted thumb pockets accommodate a variety of hand positions and encourages a balanced and comfortable hold.
- Chassis Construction - Aircraft grade aluminium chassis is incredibly robust and built to survive rough conditions in the field.
- 30 Years Transferable Warranty - All MeoStar binoculars carry Meopta´s 30 Years Transferable Warranty (after registration).
Delivery contains:
- Binocular
- Carrying strip
- Dustcaps
Products specifications
Eyegard
|
Property Value |
Front lens diameter
|
56 mm |
Exit pupil
|
7 mm |
eye relief
|
56 mm - 74 mm |
Luminosity
|
49 |
Twilight factor
|
21,17 |
Prism system
|
Roof Prism |
Housing
|
Aluminium |
Focusing
|
Centric Drive |
Diopter compensation
|
+/- 3 dpt |
Color
|
green / black |
Coating
|
MeoBright |
Objective angle of view
|
6.35° |
Field of view at 1000m (m)
|
111 m |
Interpupillary Distanz (IPD)
|
21.5 mm |
Subjective angle of view
|
50.7° |
Weight
|
39.3 oz. |
Dimensions
|
204 mm x 142 mm x 64 mm |
Surface material
|
Rubber amored |
Magnification
|
8 x |
