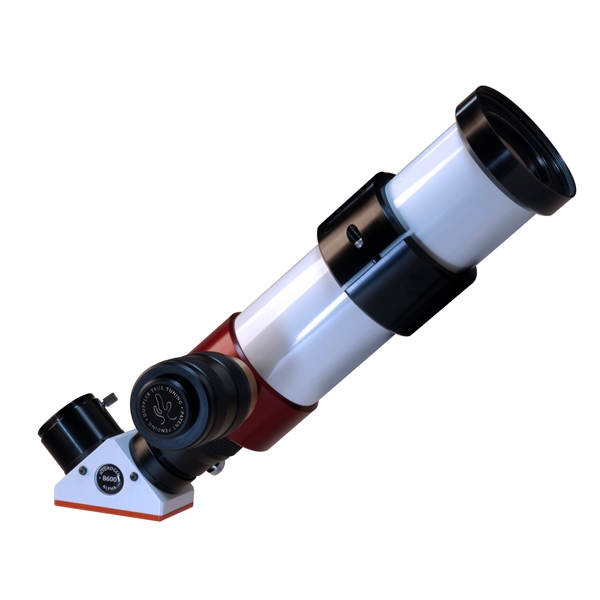

LUNT LS50THa/B400PT H-Alpha Solartelescope

LUNT LS50THa/B400PT H-Alpha Solartelescope

The new, low-cost 50 mm H-alpha solar telescope from Lunt.
Manufacturer : Lunt Solar Systems
SKU : LU-0551154
Price: 1528.00 € incl tax 19% (Germany)
1698.00 €
Estimated delivery time : 1-2 days
Product description
LuntSolarSystems - Solar Telescope LS50THa 50 mm H-Alpha with B400 Blocking Filter and Pressure Tuning System

The LS50T is a refractor-based system with a 50 mm aperture and an internal-mounted etalon with Pressure Tuner adjustment. This system allows for a <0.75 Angstrom band pass.


Specifications:
  • Type: Single Interference Etalon
  • Tuning: Internal Pressure Tune (Doppler True Tuning)
  • Aperture: 50 mm
  • Focal Length: 350 mm
  • F Ratio: f/7
  • Bandpass: <0.75 Angstroms @ 656 nm
  • Focuser: non rotating Helical Focuser
  • Mounting: Integrated clamshell with 1/4" photo thread
  • Color: Pearl White with Black and Red accents
  • Diagonal: B400 Blocking Filter


Delivery contains:
  • Telescope with B400 Blocking Filter


Please note:

You will find inside the box an additional black T-thread adapter ring. Please retain it for future modifications. This T-thread adapter might be needed for imaging. The manufacturer Lunt-USA is looking to possible making some adapters to make imaging with the LS50THa telescope easier. Right now it will not reach focus on DSLR cameras. It will reach focus with some CCDs and webcams when you remove the eyepiece-holder from the blocking-filter diagonal. You will find there also a T-thread at the blocking-filter diagonal.
Products specifications
Type of telescope H-Alpha Solar Telescope with integrated Etalon
Color black / red / white
Band Pass < 0.75 Angström @ 656 nm
Focuser Helical Focuser non rotating 9 mm Focusing Travel
Connection to eyepiece 1.25" / T2 Thread / Backfocus 15 mm from T2 Thread, 39 mm without Barrel max.
Aperture 50 mm
Focal length 350 mm
Focal ratio f/7
Weight 4.6 lb
Length 370 mm
Diameter 90 mm + Pressure Tuner 75 mm
Blocking Filter 4 mm Diameter
