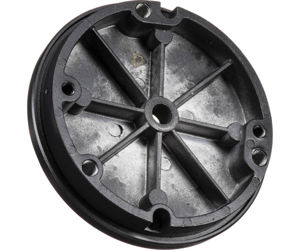

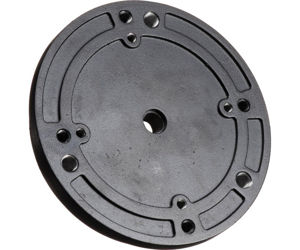

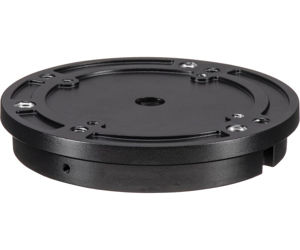

iOptron Pier Top Plate for CEM70, CEM60 or CEM60-EC

iOptron Pier Top flange plate for building your own pier or modifying your existing tripod/pier.

This Pier Top Plate is compatible with the iOptron CEM70, CEM60 or CEM60-EC and includes the hardware necessary to attach the plate to the mount.

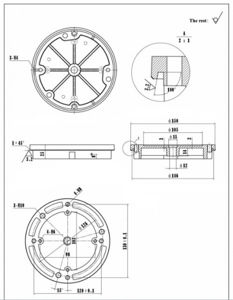

Click here for the Pier Top CAD drawing.

Features

The Pier Top can be used to mount the following mounts (with appropriate mounting accessories):

• CEM70
• CEM60/CEM60-EC (w/ center post)
• CEM40 (w/ center post)*
• GEM45 (w/ center post)*
• iEQ45/iEQ45 (w/ center post and alignment peg)
• iEQ30/iEQ30 Pro (w/ center post and alignment peg)*
• AZ Mount Pro/MiniTower/MiniTower II/MiniTower (w/ a center T-bolt)

* Due to the small mount base of the mount, the low latitude operation may be affected.

Specifications

• Plate Diameter: 6" (150 mm)
• 3x M10 threaded holes for AZ Mount Pro, MiniTower, MiniTower II and MiniTower Pro
• 4x M8 threaded holes for iEQ45, iEQ45 Pro, CEM70, CEM60 and CEM60-EC
• 4x M6 threaded holes for iEQ30 and iEQ30 Pro
• Mounting Hardware for the CEM70, CEM60 or CEM60-EC
