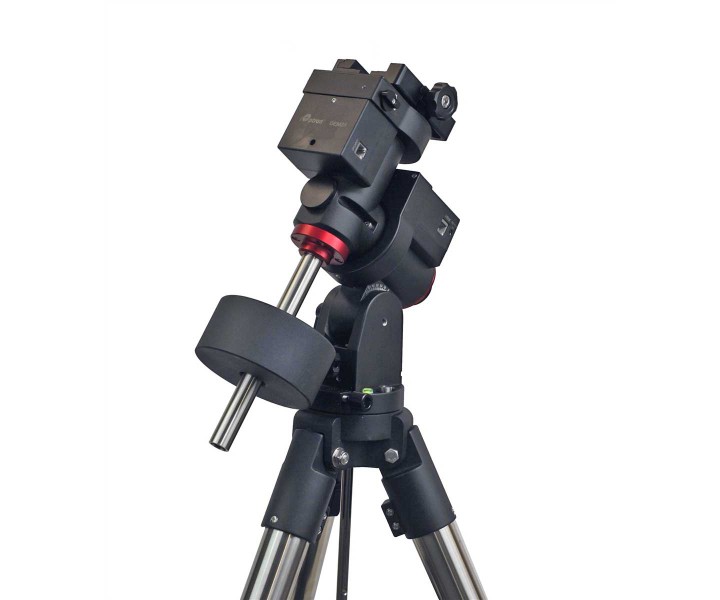

iOptron GEM28 GoTo mount with optical polar finder and 1.75" LiteRoc tripod

iOptron GEM28 GoTo mount with optical polar finder and 1.75" LiteRoc tripod

The transportable GoTo mount # G281B1 weighs only 4.5 kg, but can carry telescopes up to 12.7 kg, it is suitable for astrophotography and observation.

  • Proven design as German Equatorial Mount (GEM) for familiar operation without changeover
  • High payload and minimum mount weight
  • Ideal for both visual observation and astrophotography
  • Low periodic error (< ± 10 arc seconds)
  • Payload of 12.7 kg (28 lbs) with the mount-only weight of 4.5 kg (10 lbs)
  • 10º 70° latitude operation
  • Stepper motor with low power consumption
  • Integrated optical polar scope AccuAlign
  • Polar alignment routine for those who can?t see the Pole Star
  • Go2Nova® 8409 controller with GOTONOVA® GOTO technology and hand controller with large LC display
  • Integrated ST-4 autoguiding port
  • Built-in Wi-Fi
  • USB port for firmware upgrade and computer control
  • Deluxe LiteRoc tripod with 1.75" Stainless steel legs (7.5 kg)

Manufacturer : iOptron
SKU : TSO-G281B3
Price: 1299.00 € incl tax 19% (Germany)
Estimated delivery time : 1-4 days
Product description

The new compact next generation German mount from iOptron - the GEM28! Like its predecessors, the GEM28 was designed with mobility in mind. Weighing only 4.5 kg, it can carry up to 12.7 kg of payload.

Building on the legacy of previous GEM models, iOptron has added attractive features for greater convenience and functionality.

  • A gear engagement system with positive locking (easy to operate even with gloves on)--.
  • Integrated Wi-Fi, which provides unparalleled connectivity.
  • A storable permanent periodic error correction (PPEC) for repeating optimal PEC training sessions. This improves tracking accuracy for astrophotography.
  • Fast polar alignment through the optical polar scope AccuAlign
  • An electronic polar alignment method for those who do not have a clear view of Polaris.
  • CNC-machined and cast metal housing.
  • Large, easy-to-use quick-release couplings
  • Integrated ST-4 autoguiding connector
  • Built-in Wi-Fi
  • USB port for firmware upgrade and computer control
  • Deluxe LiteRoc tripod (7.5 kg)
  • Die-cast metal tripod spider with accessory tray
  • Optional 32-channel GPS (Global Positioning System)



The GEM28 is equipped with the latest advanced GOTONOVA® GOTO technology

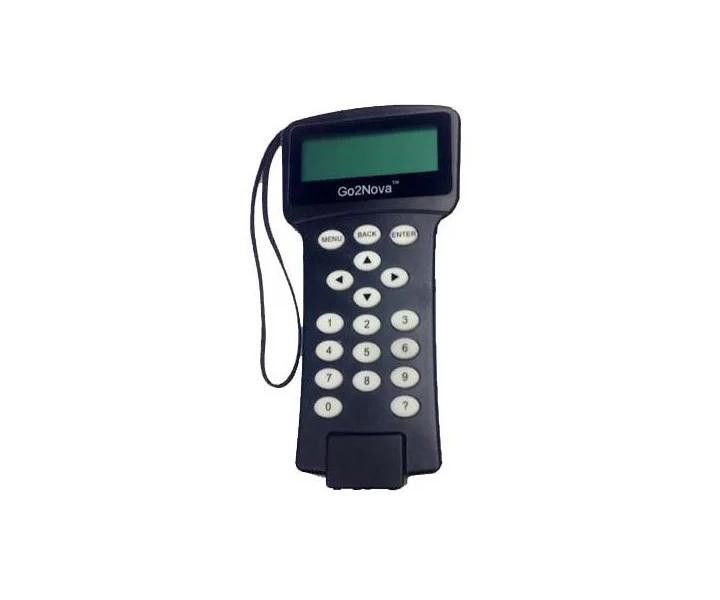

This makes it one of the most powerful and accurate GOTO mounts on the market. The library of 212,000 entries ensures that you will never run out of objects to see or image. The Go2Nova® handheld controller is intuitive to use and its large 4-line LCD screen simplifies telescope setup and object finding.

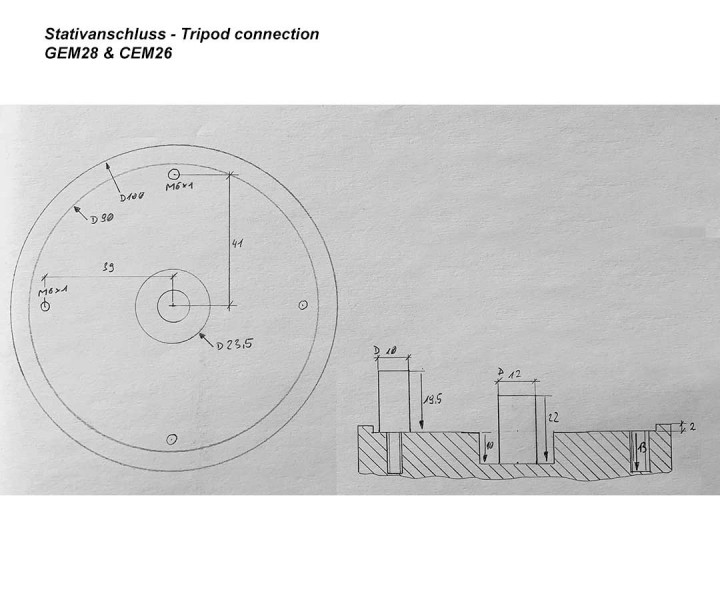

Tripod Connection:

The mount is attached to the tripod from above with two M6 screws (see illustration). This allows an easy adaptation to own tripod constructions or also pier adapters.

Scope of Delivery:

  • Telescope mount with AccuAlign polar scope
  • Hand controller (HC) ? Go2Nova® 8409
  • LiteRoc tripod
  • Counterweight ? 10 lbs (4.5 kg) x1
  • Counterweight shaft
  • Controller cables x2
  • RS232?RJ9 serial cable
  • AC adapter ? 100?240 V
Products specifications
Type of mount Parallactic GOTO mount
PEC exists
Payload max. (depending on using and demand) 26.4 lb
Power Supply 12 V 5 A
Weight of tripod 16.5 lb
Motors Micro step driven 1.8° stepper motors
Connections ST-4 Auto-Guider
Motor control Go2Nova® 8409 with ~212.000 Objects Databank
Slew speeds 1×, 2×, 8×, 16×, 64×, 128×, 256×, 512×, MAX (6°/sec)
Weight equatorial head 4.5Kg
Polarscope AccuAlign Polfinder
