FORK MOUNT WEGA
For large binoculars and spotting scopes
- large angular freedom in vertical swivel
- compact design
- load capacity up to 25 kg (incl. counterweights)
- smooth horizontal movements thanks to ball-bearing axle
- adjusting the balance between the optics and the counterweight simply by repositioning the counterweight rod at three different heights
- the fastening of the vertical axis allows easy insertion of the optical system
- option to connect an additional prism clamp to the swinging arm for the counterweight
- floor connection for tripod 3/8"UNC (thread depth 20 mm)

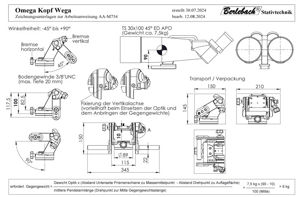

- for further technical data, see drawing
- Weight: 2.10 kg
We recommend the following accessories:- Counterweights 3 kg or 2 kg
- Counterweight rod 100 mm
- Prism rail 120 mm, M755
Scope of Delivery:
